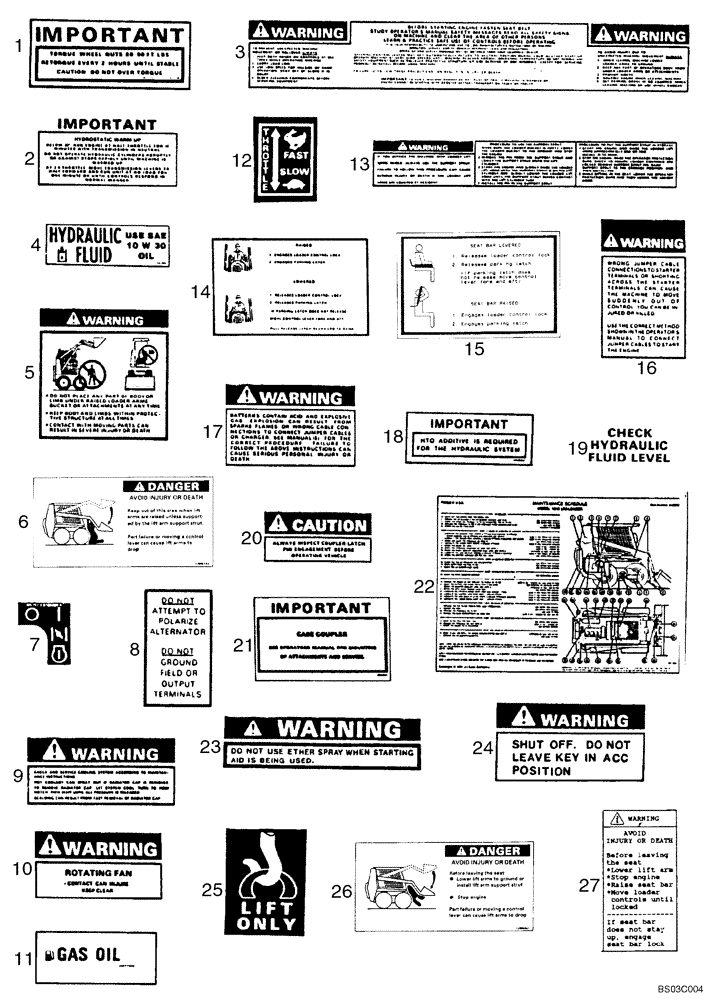

Запчасти Case 1840 (09-44) - DECALS - FRENCH (09) - CHASSIS/ATTACHMENTS

1

321-3603

DECAL

Important, Torque Wheel Nuts

2шт.

2

321-4083

DECAL

Important, Hydrostatic Warm-Up; If Used

1шт.

3

321-6620

DECAL

Warning, Before Starting Engine, Fasten Seat Belt

1шт.

4

E20162

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaced by 175511A2

1шт.

4

175511A2

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaces E20162, 175511A1

1шт.

5

321-6652

DECAL

Warning, Do Not Place Any Part Of Body Or Limb Under Raised Loader Arms; Replaced by 127535A1

1шт.

6

127535A1

DECAL

Danger, Keep Out Of This Area

1шт.

7

E99527

DECAL

Ignition Switch Pattern; No Longer Available, Replaced By 355236A1; See Figure 09-40, REF 8

1шт.

8

321-2874

DECAL

Do Not Attempt To Polarize Alternator; If Used

1шт.

9

321-6701

DECAL

Warning, Check And Service Cooling System

1шт.

10

321-6789

DECAL

Warning, Rotating Fan; Replaced by 175504A1; See Figure 09-40, REF 9

2шт.

11

106773A1

DECAL

Gas Oil (Diesel Fuel); Replaced by 139879A1; See Figure 09-40, REF 1

1шт.

12

321-4867

DECAL

Throttle, Slow/Fast; Models With Brown Trim; No Longer Available, Replaced by 178662A1; See Figure 09-40, REF 5

1шт.

12

E84716

DECAL

Throttle; Replaced by 178662A1; See Figure 09-40, REF 5

1шт.

13

321-6792

DECAL

Warning, If You Service The Machine With The Loader Arms Raised

1шт.

14

D136506

DECAL

Raised/Lowered; Parking Latch And Operators Restraint Instructions; Replaced By 133522A1

1шт.

15

133522A1

DECAL

Seat Bar Lowered/Seat Bar Raised

1шт.

16

321-6720

DECAL

Warning, Wrong Jumper Cable Connections To Starter Teminals; Replaced By 175509A1; See Figure 09-40, REF 20

1шт.

17

321-6719

DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

18

E20016

DECAL

Important, HTO Additive Is Required For The Hydraulic System; If Used

1шт.

19

321-2896

DECAL

Check Hydraulic Fluid Level; Replaced By 259914A1; See Figure 09-40, REF 2

1шт.

20

321-6861

DECAL

Caution, Always Inspect Coupler - Latch Pin Engagement

1шт.

21

275312A1

DECAL

Important, Case Coupler; Replaces D136505

1шт.

22

175527A1

DECAL

Maintenance Schedule, Model 1840 Uni-Loader; Replaces 8-80930

1шт.

23

321-5422

DECAL

Warning, Do Not Use Ether Spray When Starting Aid Is Being Used; If Used

1шт.

24

E134523

DECAL

Warning, Shut Off. Do Not Leave In Acc Position; If Used

1шт.

25

321-4319

DECAL

Lift Only; Replaced By 139729A1; See Figure 09-40, REF 18

4шт.

26

127534A1

DECAL

Danger, Before Leaving The Seat

1шт.

27

141341A1

DECAL

Warning, Before Leaving The Seat

1шт.

E137262

DECAL

ROPS, EEC Certification; Models With Brown Trim; Not Illustrated

1шт.

184248A1

DECAL

ROPS, EEC Certification; Models With Gray Trim; Not Illustrated

1шт.
