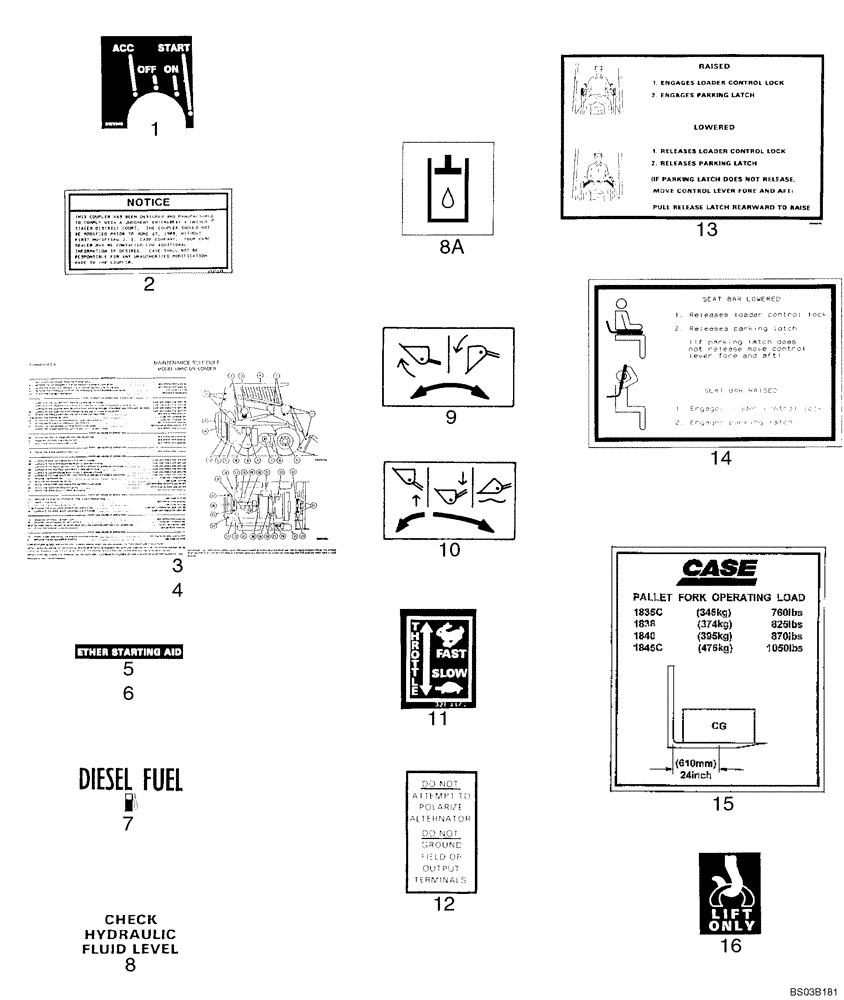

Запчасти Case 1840 (09-43) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

D123946

DECAL

Ignition Switch Pattern; Models With Brown Trim

1шт.

1

140219A1

DECAL

Ignition Switch Pattern; Models With Gray Trim; See Figure 09-40, REF 8

1шт.

2

H435395

DECAL

Coupler Tag; North America Only

1шт.

3

H436508

DECAL

Maintenance Schedule; - JAF0067437

1шт.

4

8-80930

DECAL

Maintenance Schedule; JAF0067438 - ; Replaces H436508, H437485

1шт.

5

D124152

DECAL

Ether Start; Brown; North America Only

1шт.

6

178665A1

DECAL

Ether Start; Gray; North America Only

1шт.

7

321-6374

DECAL

Diesel Fuel; No Longer Available, Order 139879A1; See Figure 09-40, REF 1

1шт.

8

321-2733

DECAL

Check Hydraulic Fluids; No Longer Available, Order 251753A1

1шт.

8a

251753A1

DECAL

Check Hydraulic Fluids; See Figure 09-40, REF 2

1шт.

9

139593A1

DECAL

Bucket Control; No Longer Available, Order 256548A1; See Figure 09-40, REF 3A

1шт.

10

139592A1

DECAL

Loader Arm Control; No Longer Available, Order 256547A1; See Figure 09-40, REF 4A

1шт.

11

321-4470

DECAL

Throttle Speed; See Figure 09-40, REF 5

1шт.

12

321-1061

DECAL

Do Not Attempt

1шт.

13

D134679

DECAL

Models With Dual Seat Bars

1шт.

14

133392A1

DECAL

Models With Single Seat Bar

1шт.

15

251734A1

DECAL

Operating Capacity; Pallet Forks

1шт.

16

321-3587

DECAL

Lift Only; No Longer Available, Order 139729A1; See Figure 09-40, REF 18

1шт.
