Запчасти Case 1840 (09-41) - DECALS (09) - CHASSIS/ATTACHMENTS

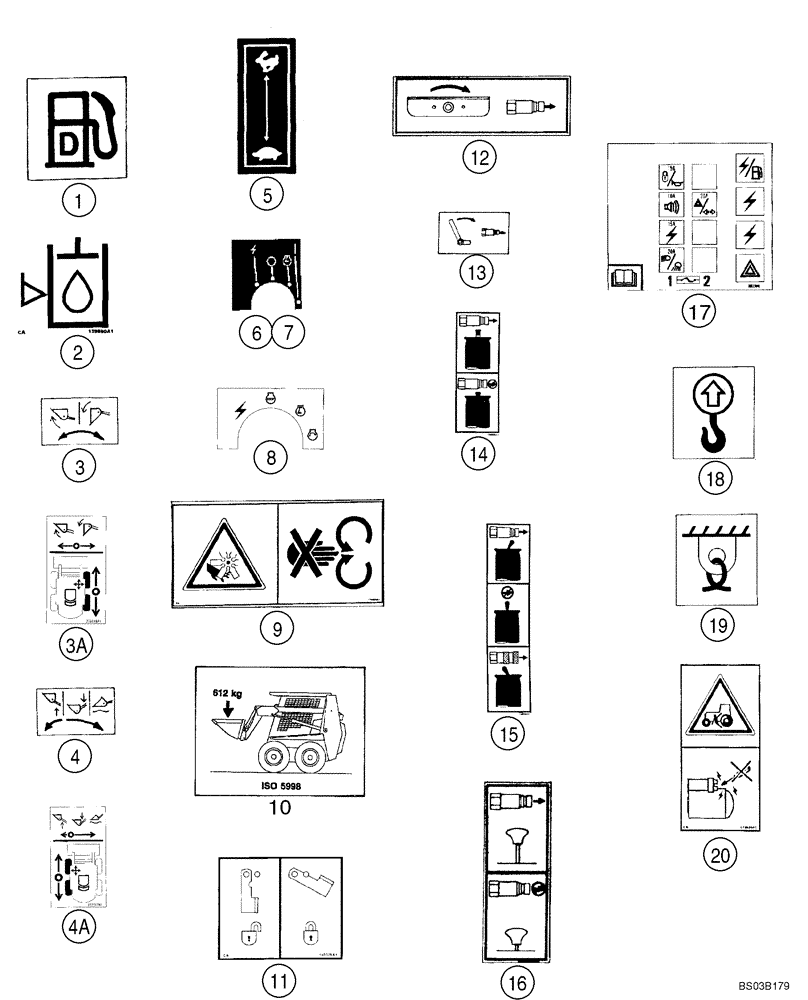

Схема запчастей Case 1840 - (09-41) - DECALS (09) - CHASSIS/ATTACHMENTS
3
1
12
4a
3a
11
6
4
15
7
10
16
9
17
18
2
8
19
13
5
14
20

Артикул

Название

Примечание

Количество

1

139879A1

DECAL

Diesel Fuel

1шт.

2

259914A1

DECAL

Check Hydraulic Fluids; Replaces 139880A1, 251753A1

1шт.

3

139593A1

DECAL

Bucket Control; No Longer Available, Order 256548A1, REF 3A

1шт.

3a

256548A1

DECAL

Bucket Control

1шт.

4

139592A1

DECAL

Loader Arm Control; No Longer Available, Order 256547A1, REF 4A

1шт.

4a

256547A1

DECAL

Loader Arm Control

1шт.

5

178662A1

DECAL

Throttle Speed

1шт.

6

140219A1

DECAL

Ignition Switch Pattern; Brown

1шт.

7

140219A2

DECAL

Ignition Switch Pattern; Gray

1шт.

8

355236A1

DECAL

Ignition Switch Pattern; Emissions Certified Engine

1шт.

9

175504A1

DECAL

Warning Rotating Fan

1шт.

10

139949A1

DECAL

Operating Capacity

1шт.

11

140326A1

DECAL

Seat Bar Lock

1шт.

12

139618A1

DECAL

Auxiliary Hydraulics; Hand Operated

1шт.

13

139617A1

DECAL

Auxiliary Hydraulics; Foot Operated; North America Only

1шт.

14

120558A1

DECAL

High Flow; Single Directional; North America Only

1шт.

15

120559A1

DECAL

High Flow; Bi-Directional; North America Only

1шт.

16

137073A1

DECAL

High Flow; Single Directional; Europe Only

1шт.

17

355238A1

DECAL

Fuse Location

1шт.

18

139729A1

DECAL

Lift Only

4шт.

19

139728A1

DECAL

Tie Down

3шт.

20

175509A1

WARNING DECAL

Jump Start

1шт.

Выбрано товаров: 22
