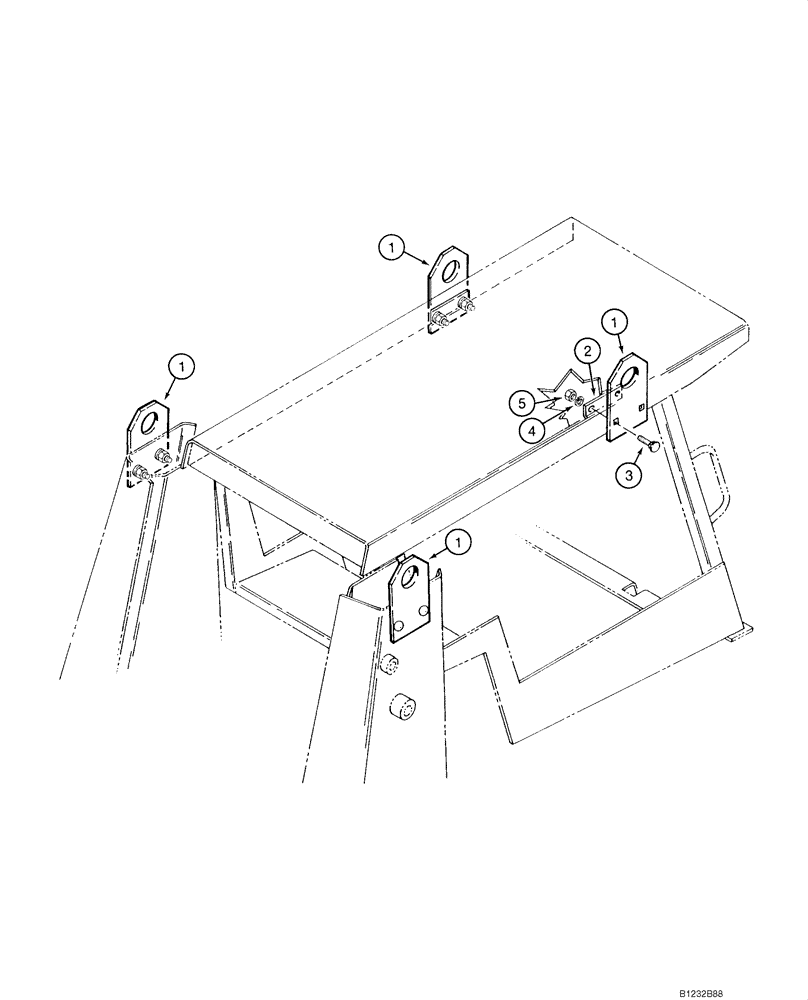

Запчасти Case 1840 (09-39) - LIFT BRACKETS (09) - CHASSIS/ATTACHMENTS

1

D132975

LIFTING RING

229 mm tall; Lift; North American Models; European ROPS Models, JAF0098065 -

4шт.

1

H439135

LIFTING RING

257 mm tall; Lift; European FOPS Models, JAF0098065 -

4шт.

1

E99433

SUPPORT

208 mm tall; Lift; Front; European Models, - JAF0098065

2шт.

1

E99432

PLATE

208 mm tall; Lift; Rear; European Models, - JAF0098065; No Longer Available, Order D132975

2шт.

2

D132976

BAR

Front Lift Bracket

2шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

If Used

8шт.

3

E20616

BOLT

If Used

8шт.

4

492-11056

LOCK WASHER,9/16"

If used

8шт.

5

230-4218

LOCK NUT,1/2"-13, GA

1/2 in; If Used

8шт.

5

825-1414

NUT,M14, Cl 8

14 mm - 2; If Used

8шт.

6

321-3587

DECAL

Lift Only; Not Illustrated

4шт.

6

321-4319

DECAL

Lift Only; Not Illustrated

4шт.

6

321-5429

DECAL

Lift Only; Not Illustrated

4шт.

6

321-5428

DECAL

Lift Only; Not Illustrated; No Longer Available, Order 139729A1, See Figure 09-49, REF 18

4шт.

6

E21032

DECAL

Lift Only; See Figure 09-47, REF 25; Italian

4шт.

D102001

SET

Kit, Lift Bracket; Order From Machinery Price List; Incl. Instructions; Incl. D132975 (REF 1), D132976 (REF 2), 433-824 (REF 3), 230-4218 (REF 5)

1шт.
