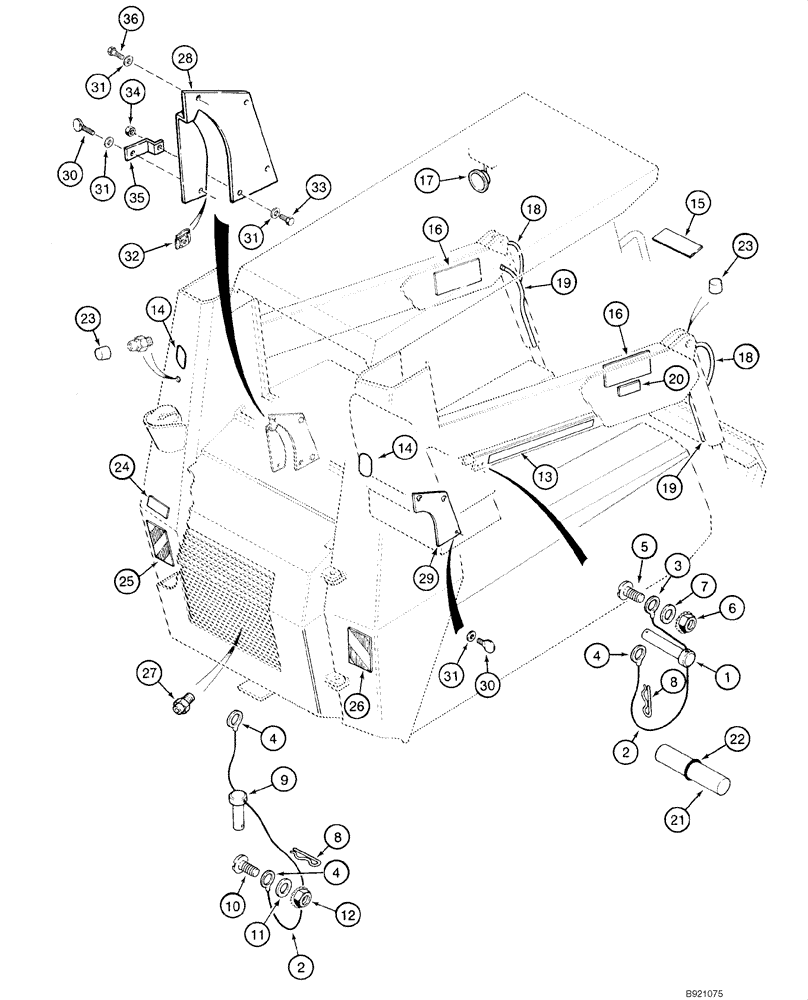

Запчасти Case 1840 (09-35) - SPECIAL PARTS FOR GERMANY - TBG APPROVED, JAF0098065 - (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H439165
PIN,9.5mm OD x 86mm L
Strut Lock
1шт.
2
H439278
ELECTRICAL WIRE
WIRE Strut And Door Pin Lock
2шт.
3
223-56
TERMINAL CONNECTOR,10 - 12
10-12 wire x 3/8 in
1шт.
4
223-54
TERMINAL CONNECTOR,10 - 12
10-12 wire x 1/4 in
3шт.
5
473-13112
SCREW,Slotted Flat Hd, 5/16"-18 x 3/4"
5/16 NC x 3/4 in
1шт.
6
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
7
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
1шт.
8
136-159
HAIR PIN COTTER,Int, 3/16 x .080"
2шт.
9
H439276
PIN,12mm OD x 50mm L
Rear Door Lock
1шт.
10
840-1525
SCREW,Pan, M5 x 25mm, Cl 4.8
1шт.
11
495-11028
WASHER,1/4", SAE
(9/32 x 5/8 x 1/16")
1шт.
12
825-1405
NUT,M5, Cl 8
1шт.
13
H439134
DECAL
600 x 70 mm; Warning
1шт.
14
H439133
DECAL
Grease Fitting Location; German
6шт.
15
D55216
PAD,2" x 9"
1шт.
16
321-6181
DECAL
Warning; Loader Arm; German
2шт.
17
E99967
REAR VIEW MIRROR
Rear View; Wide Angle
1шт.
18
E20503
HOSE ASSY.
15 in (381 mm); Bucket Cylinder; At Closed End
2шт.
19
E20504
HOSE ASSY.
16-15/16 in (430 mm); Bucket Cylinder; At Rod End
2шт.
20
106868A1
DECAL
Warning; Operator Exit
1шт.
21
E20152
BAG-TOOL
BAG W/TOOL KIT
1шт.
22
E20151
STRAP
Tool Bag
1шт.
23
E82545
CAP
16шт.
24
321-2299
DECAL
Engine Access
1шт.
25
E99288
REFLECTOR
Adhesive Type; Left Hand Side
1шт.
26
E99427
REFLECTOR
Adhesive Type; Right Hand Side
1шт.
27
E98294
PLUG
Oil Drain
1шт.
28
H439166
PANEL
Engine; Left Hand
1шт.
29
H439167
PANEL
Engine; Right Hand
1шт.
30
H65847
THUMB SCREW,5/16" - 18 x 3/4"
Engine Panel
4шт.
31
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
9шт.
32
H346650
NUT
5/16 in
7шт.
33
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
34
232-4115
LOCK NUT,5/16"-18, GC
1шт.
35
H439305
BRACKET
Panel
1шт.
36
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
111767A1
DECAL
Hydraulic Cap
1шт.
124607A1
COVER
Key
2шт.
Выбрано товаров: 38
