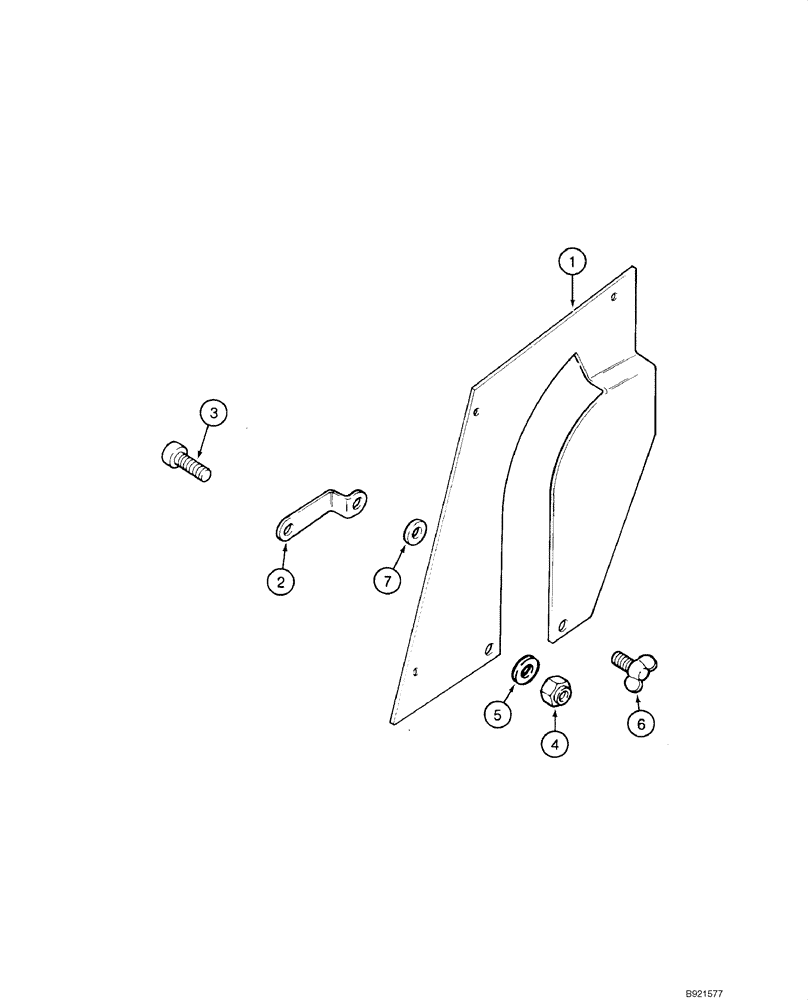

Запчасти Case 1840 (09-32) - ENGINE ACCESS PANEL (EUROPE, - JAF0098065) (09) - CHASSIS/ATTACHMENTS

E20431

PANEL

Engine Access; Left Hand Door; Incl. 1 - 7

1шт.

1

E20586

PANEL

Engine Access

1шт.

2

E20587

BRACKET

Panel

1шт.

3

E98853

SCREW

8 - 1.25 x 20 mm

1шт.

4

E98788

LOCK NUT

8 mm - 1.25

1шт.

5

195-2027

WASHER,.344" x 1" x .065"

11/32 x 1 x 1/16 in

2шт.

6

E21001

FASTENER

Access Door

1шт.

7

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.
