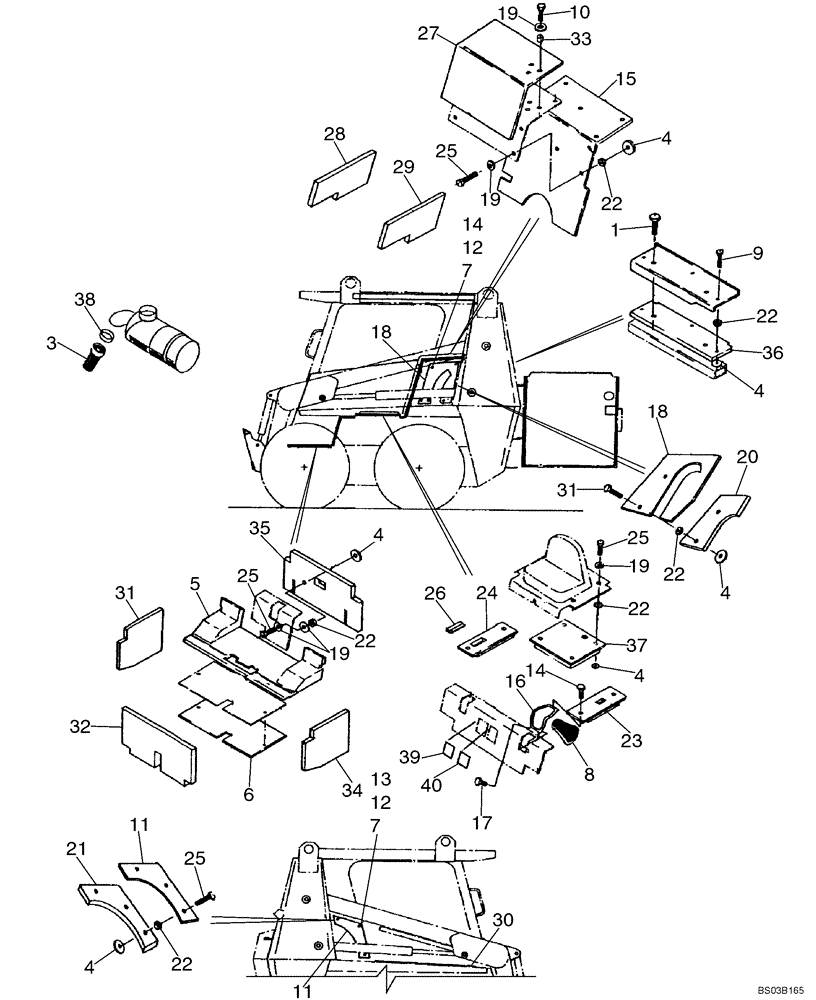

Запчасти Case 1840 (09-31) - NOISE KIT - GLAZED AND PUNCHED (EUROPE) (09) - CHASSIS/ATTACHMENTS

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

2

D136108

WASHER

1.75 OD x .26 ID

8шт.

3

E21010

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID x 200.00 mm, SAE J200

Air Filter

1шт.

4

E99641

CAP

17шт.

5

E20410

FLOOR MAT

1шт.

6

297125A1

INSULATOR

Under Floor Plate

1шт.

7

H346650

NUT

5/16

6шт.

8

303336A1

BOOT

2шт.

9

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

3шт.

10

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

11

H439167

PANEL

Engine Closure; Right Hand

1шт.

12

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

13

H65847

THUMB SCREW,5/16" - 18 x 3/4"

3шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

15

297301A3

INSULATOR

Engine Firewall; Replaces 297301A2

1шт.

16

303926A1

RETAINER

2шт.

17

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

10шт.

18

H675085

PANEL

Engine Closure; Left Hand

1шт.

19

495-11028

WASHER,1/4", SAE

19шт.

20

297358A1

INSULATOR

Engine Sound; Left Hand

1шт.

21

297357A1

INSULATOR

Engine Sound; Right Hand

1шт.

23

308587A1

PANEL

Console; Right Hand

1шт.

24

308588A1

PANEL

Console; Left Hand

1шт.

25

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

19шт.

26

H439309

PLUG

2шт.

27

133814A3

INSULATOR

Cab Firewall

1шт.

28

184958A2

PADDING

Lower Cab; Right Hand; Models With Glazed ROPS Only

1шт.

29

184961A2

PADDING

Lower Cab; Left Hand; Models With Glazed ROPS Only

1шт.

30

322957A1

SEALING STRIP

2шт.

31

311105A1

PANEL

Side Foot; Right Hand

1шт.

32

308585A1

PANEL

Foot; Forward

1шт.

33

H439161

SPACER

3шт.

34

308584A1

PANEL

Side Foot; Left Hand

1шт.

35

308586A1

PANEL

Heel Plate

1шт.

36

297124A1

INSULATOR

Rear Top Cover

1шт.

37

316998A1

PANEL

Seat Plate

1шт.

38

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

39

316504A1

DECAL

Bystander 102 LWA; Replaces 178669A1

1шт.

40

259801A1

DECAL

Operator Ear 85 LPA; Replaces 302153A1

1шт.
