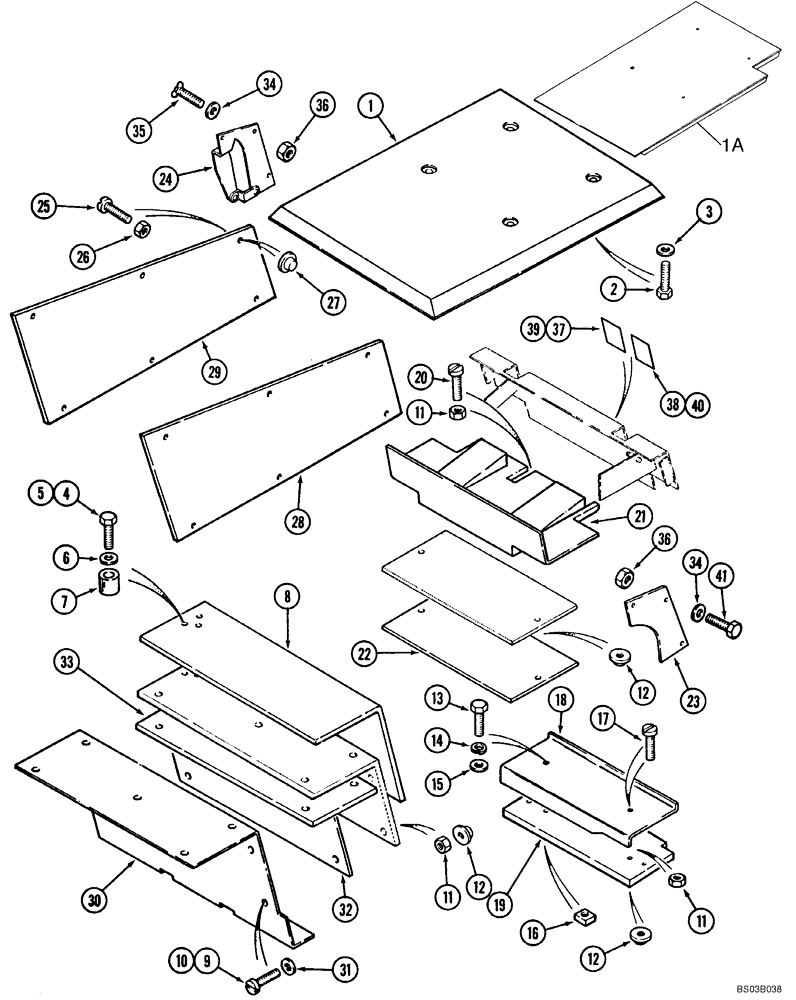

Запчасти Case 1840 (09-30) - NOISE KIT (EUROPE JAF0098065 - , NORTH AMERICA), 85DB OR 89DB EEC APPROVED (09) - CHASSIS/ATTACHMENTS

1

H438906

PANEL

ROPS; Cab Roof; Models With Brown Trim

1шт.

1a

179278A3

INSULATOR

ROPS; Cab Roof; Models With Gray Trim; Replaces 179278A1, 179278A2

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

7шт.

3

D136108

WASHER

4шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

7

H439161

SPACER

Manual Box At Cab Firewall Liner

3шт.

8

E20427

LINING

Cab; Firewall; Inside; Models With Dual Seat Bars; No Longer Available, Order 133814A2

1шт.

8

133814A2

LINING

Cab; Firewall; Inside; Models With Single Seat Bar; Models With Brown Trim; Not Illustrated

1шт.

8

179827A1

LINING

Cab; Firewall; Models With Brown Trim

1шт.

9

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

89DB EEC Approved Only

11шт.

10

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

85DB EEC Approved Only

10шт.

11

825-1405

NUT,M5, Cl 8

14шт.

12

E99641

CAP

End Cover

14шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

17

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

3шт.

18

299225A1

INSULATOR

Engine; Rear; Replaces H436668

1шт.

19

E20433

COVER

Rear; Top Cover

1шт.

19

297124A1

INSULATOR

89DB EEC Approved Only

1шт.

20

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

1шт.

21

E20410

FLOOR MAT

Cab

1шт.

22

E20411

COVER

Noise Reduction

1шт.

22

297125A1

INSULATOR

89DB EEC Approved Only

1шт.

23

H439167

PANEL

Engine; Right Hand

1шт.

24

H675085

PANEL

Engine; Left Hand

1шт.

25

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

85DB EEC Approved Only

6шт.

26

825-1405

NUT,M5, Cl 8

85DB EEC Approved Only

6шт.

27

E99641

CAP

End Cover; 85DB EEC Approved Only

12шт.

28

109868A1

PADDING

Lower; Cab Side; Models With Brown Trim; 85DB EEC Approved Only

1шт.

28

184958A1

PADDING

Lower; Cab Side; Models With Gray Trim; 85DB EEC Approved Only

1шт.

29

109867A1

PADDING

Lower; Cab Side; Left Hand; Models With Brown Trim; 85DB EEC Approved Only

1шт.

29

184961A1

PADDING

Lower; Cab Side; Models With Gray Trim; 85DB EEC Approved Only

1шт.

30

E20977

INSULATOR

Engine Firewall; 85DB EEC Approved Only

1шт.

31

D136108

WASHER

85DB EEC Approved Only

10шт.

32

E20429

COVER

Engine Side; Firewall; Lower; 85DB EEC Approved Only

1шт.

33

E20428

COVER

Engine Side; Firewall; Upper; 85DB EEC Approved Only

1шт.

34

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

35

H65847

THUMB SCREW,5/16" - 18 x 3/4"

Engine Panel

3шт.

36

H346650

NUT

5/16 in

7шт.

37

E21042

DECAL

Bystander; 101LWA; Used With REF 35; Models With Brown Trim; 85DB Approved

1шт.

37

178669A1

DECAL

Bystander; 101LWA; Models With Gray Trim

1шт.

38

E21043

DECAL

Operator Ear; Models With Brown Trim; 85DB Approved

1шт.

38

178668A1

DECAL

Operator Ear; 85 LPA; Models With Gray Trim; 89 LPA; Used With REF 35; 89DB EEC Approved Only; Models With Brown Trim

1шт.

39

E20702

DECAL

Operator Ear; 89DB Approved; Models With Brown Trim

1шт.

39

178667A1

DECAL

Bystander; 106 LWA; Models With Gray Trim

1шт.

40

E20702

DECAL

Operator Ear; 89 LPA

1шт.

40

178666A1

DECAL

Operator Ear; 89 LPA; Models With Gray Trim

1шт.

41

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

41

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

4

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
