(09-28) - REAR WINDOW AND SCREEN CANVAS (NORTH AMERICA)

Запчасти Case 1840 (09-28) - REAR WINDOW AND SCREEN CANVAS (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

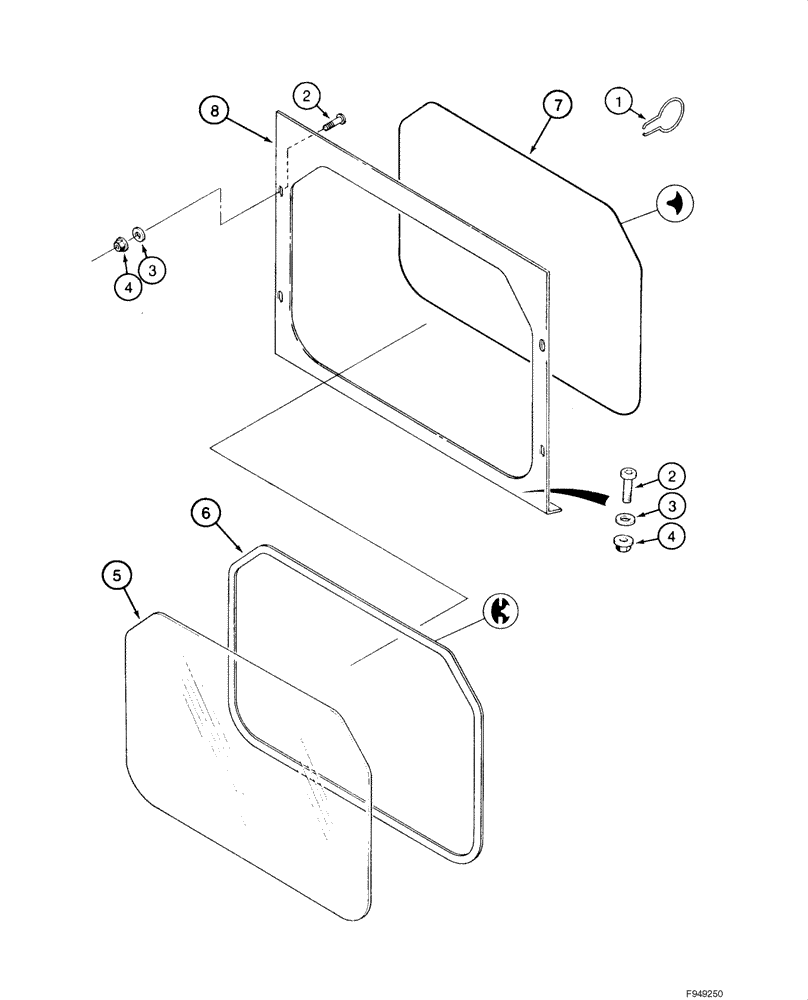

Схема запчастей Case 1840 - (09-28) - REAR WINDOW AND SCREEN CANVAS (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS
8
4
6
3
1
7
2
2
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

107996A1

RING

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

7шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

5

107143A1

GLASS

Glazed; Rear

1шт.

6

E99268

STRIP

Glass To Frame; Cut From E99025

1шт.

7

E99269

SEALING STRIP

Filter; Glass Moulding

1шт.

8

117736A1

PANEL

Rear Window

1шт.
