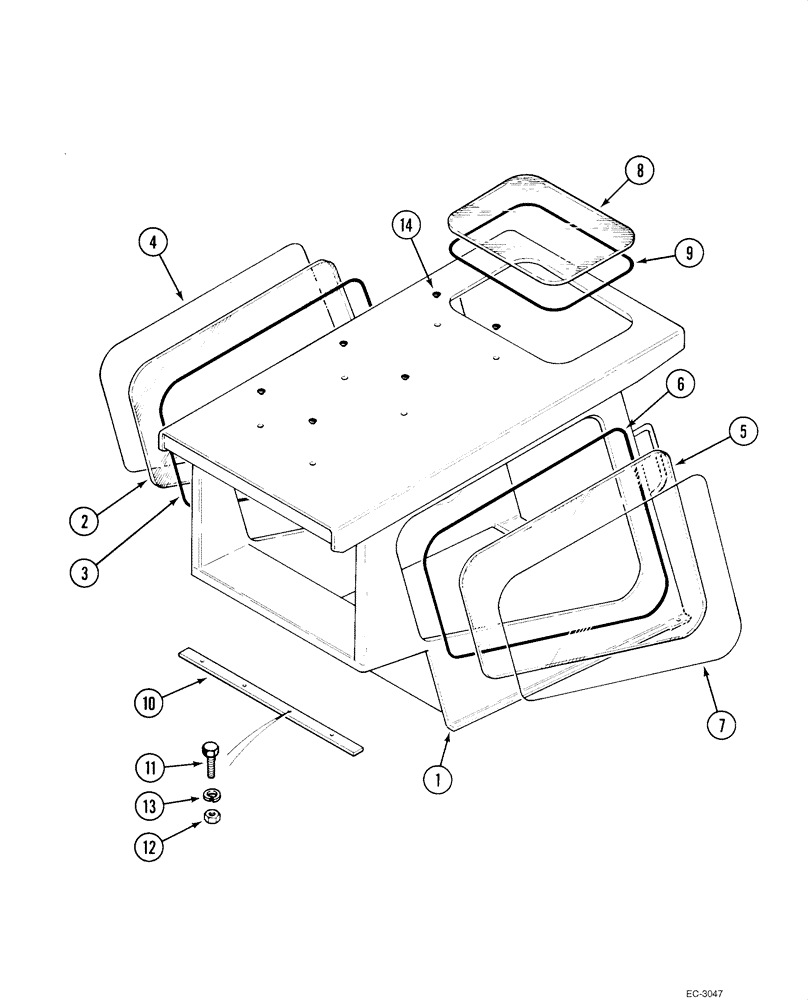

Запчасти Case 1840 (09-25) - ROPS - GLAZED (EUROPE, - JAF0098065) (09) - CHASSIS/ATTACHMENTS

1

137966A1

FRAME

ROPS; Glazed; Replaces E20357

1шт.

2

E134703

GLASS

Side; Left Hand; Replaces E20360

1шт.

3

E20368

RUBBER STRIP

Left Hand; Side Glass To Frame; Cut From RK692078

1шт.

4

E20369

STRIP

Filler; Cut From RK692079

1шт.

5

107144A1

GLASS

Side; Replaces E20361 And E134704

1шт.

6

E20370

RUBBER STRIP

Side Glass To Frame; Cut From RK692078

1шт.

7

E20371

STRIP

Filler; Cut From RK692079

1шт.

8

144266A1

GLASS

Roof; Replaces H439109

1шт.

9

E20999

SEALING STRIP

65 in (1660 mm); Replaces E20373; Cut From E20997

1шт.

10

E20358

SUPPORT

Roof

1шт.

11

E98853

SCREW

8 - 1.25 x 20 mm

4шт.

12

825-1408

NUT,M8, Cl 8

4шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.

14

E20619

PLUG

1/4 in; Frame Roof

7шт.

RK692078

DOOR SEAL

Bulk

1шт.

RK692079

SEAL, GLASS

Bulk, 1176 in (29870 mm)

1шт.

E20997

SEALING STRIP

Bulk, 72 in (1829 mm)

1шт.
