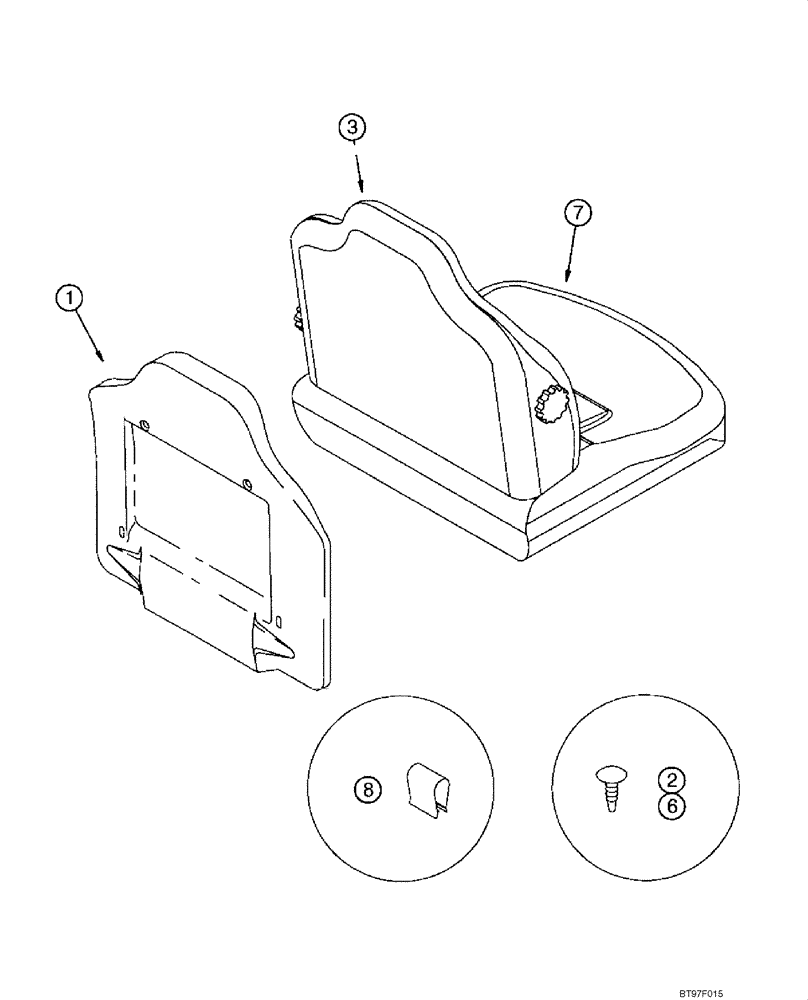

Запчасти Case 1840 (09-23) - DELUXE OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

308307A1

SEAT

Operators; Gray; Incl. 09-23 - 09-23B

1шт.

400681A1

SEAT

Wheat; Replaces 308307A1; Incl. 09-23 - 09-23B

1шт.

1

291770A1

PANEL

Backrest

1шт.

291764A1

ASSEMBLY

Backrest Pad; Gray; No Longer Available, Order 86988826

1шт.

86988826

SEAT BACK

Wheat; Incl. 2 - 3

1шт.

291760A1

ASSEMBLY

Clip; Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Clip

7шт.

3

NSS

NOT SOLD SEPARAT

Cushion; Backrest

1шт.

4

NSS

NOT SOLD SEPARAT

Emblem; Lumbar; Not Illustrated

1шт.

5

NSS

NOT SOLD SEPARAT

Emblem; Recliner; Not Illustrated

1шт.

291763A1

ASSEMBLY

Cushion; Gray; Incl. 291760A1, REF 6, 7; No Longer Available, Order 86988825

1шт.

86988825

SEAT

Wheat; Incl. 6, 7

1шт.

291760A1

ASSEMBLY

Clip

1шт.

6

NSS

NOT SOLD SEPARAT

Clip

7шт.

7

NSS

NOT SOLD SEPARAT

Cushion

1шт.

291762A1

ASSEMBLY

Clip; Incl. 8

1шт.

8

NSS

NOT SOLD SEPARAT

Clip

2шт.
