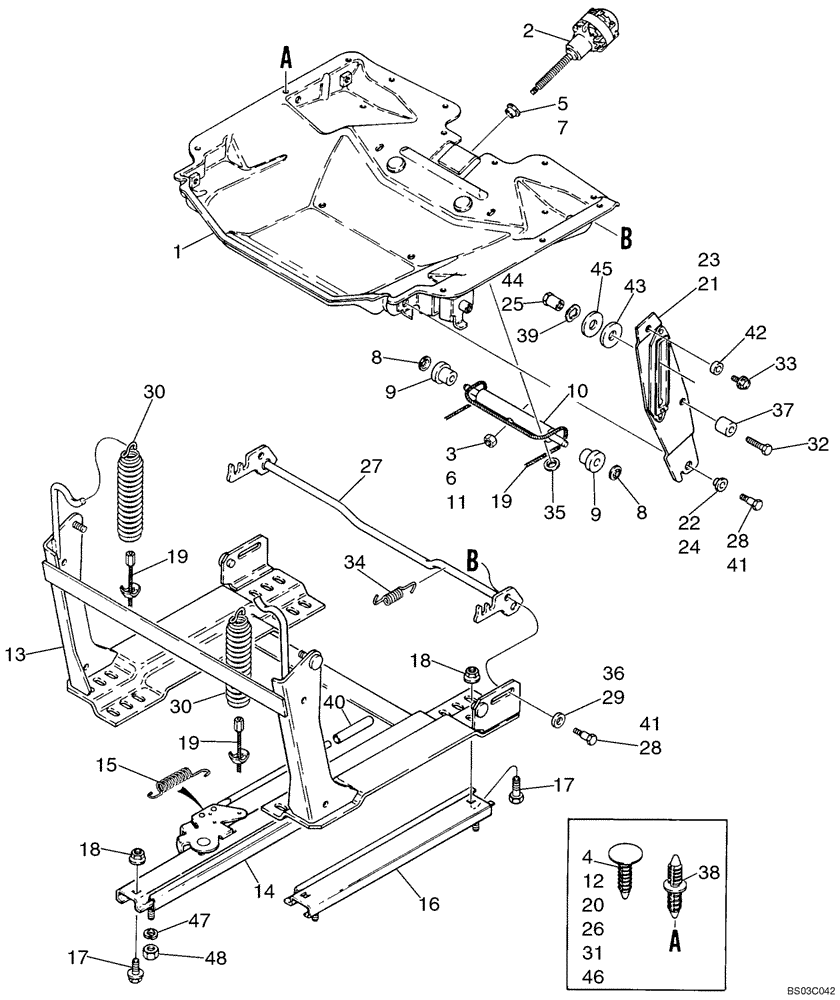

Запчасти Case 1840 (09-22A) - DELUXE OPERATORS SEAT (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

D129790

SEAT

Operators; Deluxe; Brown Vinyl; Incl. 1 - 48; Also Incl. 09-22, 09-22A

1шт.

178764A1

SEAT

Operators; Deluxe; Gray Vinyl; Incl. 1 - 48; Also Incl. 09-22, 09-22A

1шт.

1

NSS

NOT SOLD SEPARAT

Base; Seat

1шт.

N13705

SET OF PARTS

Knob; Incl. 2 - 5, Instructions

1шт.

2

NSS

NOT SOLD SEPARAT

Knob; Seat

1шт.

3

131-1280

JAM NUT,Jam, 1/4"-20

1шт.

4

N13703

CLIP,ELECTRICAL

Backrest Shell

2шт.

5

N9241

BUSHING

Seat Base

1шт.

6

131-1280

JAM NUT,Jam, 1/4"-20

1шт.

7

N9241

BUSHING

Base

1шт.

8

131-435

PUSH-ON NUT,Push, 3/8"

2шт.

9

N8495

RETAINER

Seat Adjuster

2шт.

N13730

SET OF PARTS

Shaft; Cable Support; Incl. 10 - 12, Instructions

1шт.

10

NSS

NOT SOLD SEPARAT

Shaft; Cable Support

1шт.

11

131-1280

JAM NUT,Jam, 1/4"-20

1шт.

12

N13703

CLIP,ELECTRICAL

Backrest Shell

2шт.

13

NSS

NOT SOLD SEPARAT

Frame; Seat

1шт.

14

D59695

SUPPORT

Seat; With Handle; Incl. 15

1шт.

15

L35503

SPRING

Adjuster

1шт.

16

N13607

ADJUSTER

Seat

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16 in

4шт.

N13702

SET OF PARTS

Cable; Incl. 19, 20, Instructions

1шт.

19

NSS

NOT SOLD SEPARAT

Tension Cable; Operator Weight

1шт.

20

N13703

CLIP,ELECTRICAL

Backrest Shell

2шт.

N13725

SET OF PARTS

Backrest Support; Incl. 21 - 26, Instructions

1шт.

21

NSS

NOT SOLD SEPARAT

Support; Backrest Support; Left Hand; Incl. 22

1шт.

22

N13754

BUSHING

Support

1шт.

23

NSS

NOT SOLD SEPARAT

Backrest Support; Right Hand; Incl. 24

1шт.

24

N13754

BUSHING

Support

1шт.

25

N13720

NUT

2шт.

26

N13703

CLIP,ELECTRICAL

Backrest Shell

2шт.

N13726

SET OF PARTS

Latch; Backrest Tilt; Incl. 27 - 29, Instructions

1шт.

27

NSS

NOT SOLD SEPARAT

Latch; Backrest Tilt

1шт.

28

N13716

BOLT

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

N13728

SET OF PARTS

Extension Spring; Incl. 30, 31, Instructions

2шт.

30

NSS

NOT SOLD SEPARAT

Spring; Extension

1шт.

31

N13703

CLIP,ELECTRICAL

Backrest Shell

1шт.

32

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

2шт.

33

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

34

L35503

SPRING

Seat

1шт.

35

131-435

PUSH-ON NUT,Push, 3/8"

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

37

K627041

BUSHING

Backrest Support

2шт.

38

N13712

CLIP,ELECTRICAL

Rubber Cover

12шт.

39

N13713

WASHER

Backrest Support

2шт.

40

NSS

NOT SOLD SEPARAT

Grip; Adjuster

1шт.

41

N13716

BOLT

4шт.

42

N13718

SPACER

Support

2шт.

43

N13719

WASHER

Support

2шт.

44

N13720

NUT

2шт.

45

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 in

2шт.

46

N13703

CLIP,ELECTRICAL

Backrest Shell

7шт.

47

492-11031

LOCK WASHER,5/16"

4шт.

48

425-105

NUT,5/16"-18, G5

4шт.
