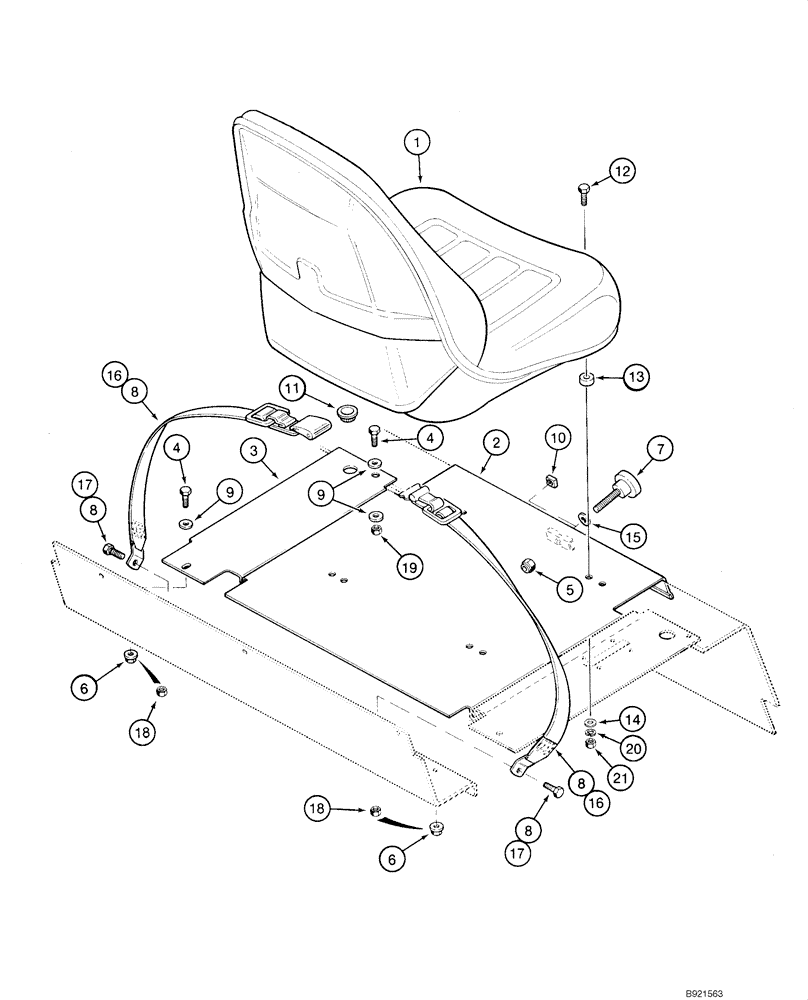

Запчасти Case 1840 (09-20) - SEAT, MOUNTING - SEAT BELTS (EUROPE) (09) - CHASSIS/ATTACHMENTS

1

E84391

SEAT

Operators; Standard; With Slide; Brown Vinyl; - JAF0098065; Replaces E99305; Component Parts Not Serviced Separately

1шт.

1

E84392

SEAT

Operators; Deluxe; With Slide; Brown Vinyl

1шт.

1

179330A1

SEAT

Operators

1шт.

2

E20676

PLATE

Seat Mounting; No Longer Available, Order 295896A1, See Figure 09-19, REF 7

1шт.

2

H435910

PLATE

Seat Mounting; No Longer Used; Order 295896A1, See Figure 09-19, REF 7

1шт.

3

H435912

PLATE

Left Hand Closure; Used On Models With Dual Seat Bar; - JAF0100497

1шт.

3

121043A1

COVER

Left Hand Closure; Used On Models With Dual Seat Bar; JAF0100497 -

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

4шт.

5

232-1446

NUT,3/8"-16, GC

1шт.

6

231-1448

NUT,1/2"-13, GB

6-8шт.

7

D133068

KNOB

Seat Adjusting

1шт.

8

E99307

SAFETY BELT

Complete; Incl. Mounting Hardware; No Longer Available, For Service, Order REF 16 - 18

1шт.

9

H426775

WASHER

6шт.

10

224-2206

SQUARE NUT,Sq, 3/8"-16

3/8 in

1шт.

11

F64486

GROMMET

3/4 in ID

2шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

14

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

15

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

16

D133868

SAFETY BELT ,2.00" W

1шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

231-1448

NUT,1/2"-13, GB

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

492-11031

LOCK WASHER,5/16"

4шт.

21

425-105

NUT,5/16"-18, G5

4шт.

22

133621A1

COVER

Left Hand Closure; Used On Models With Single Seat Bar; Not Illustrated

1шт.
