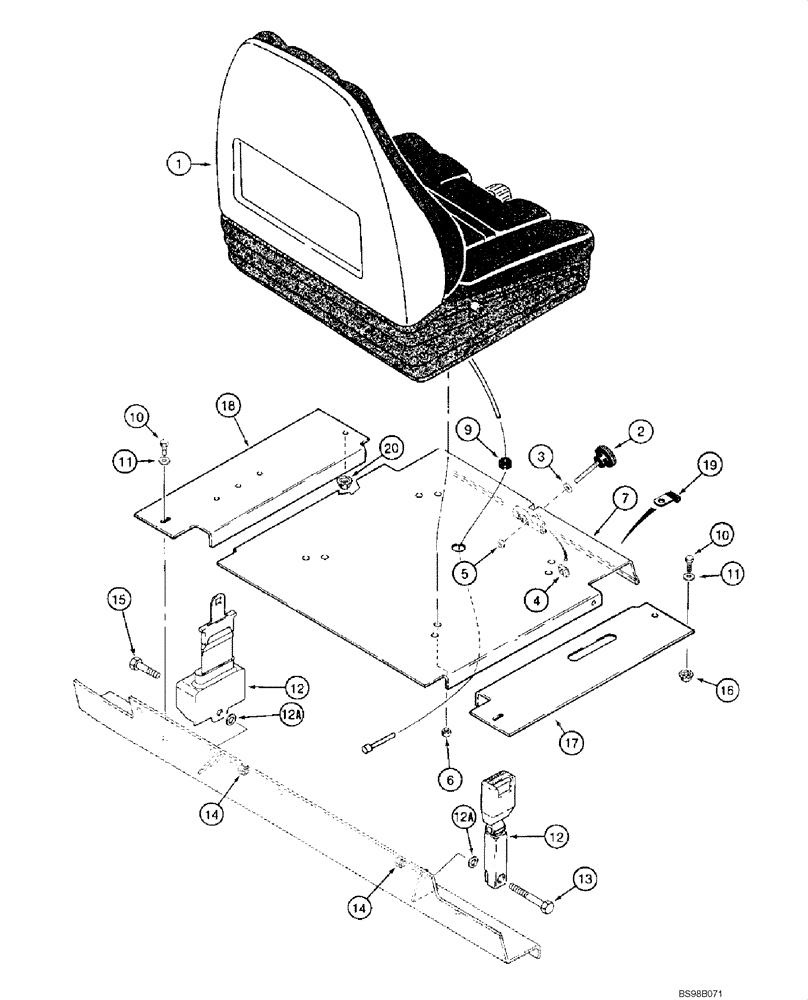

Запчасти Case 1840 (09-19) - SEAT, MOUNTING (DELUXE) - SEAT BELTS (MODELS WITH EMISSIONS CERTIFIED ENGINE) (09) - CHASSIS/ATTACHMENTS

1

308307A1

SEAT

Operators; Deluxe; Gray; Replaces 302138A1; See Figure 09-23 - 09-23B

1шт.

1

400681A1

SEAT

Wheat; See Figure 09-23 - 09-23B; Replaces 308307A1

1шт.

2

D133068

KNOB

Seat Adjusting

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

5

232-4116

NUT,3/8"-16, GC

1шт.

6

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

7

295896A1

LARGE PLATE

PLATE, LARGE Seat Mounting

1шт.

9

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

12

249117A1

SAFETY BELT ,76.20 mm W

Retractable, Includes 12A

1шт.

12a

NSS

NOT SOLD SEPARAT

Washer

2шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

14

232-4116

NUT,3/8"-16, GC

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

17

133620A1

COVER

Right Hand Closure

1шт.

18

133621A1

COVER

Left Hand Closure

1шт.

19

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.
