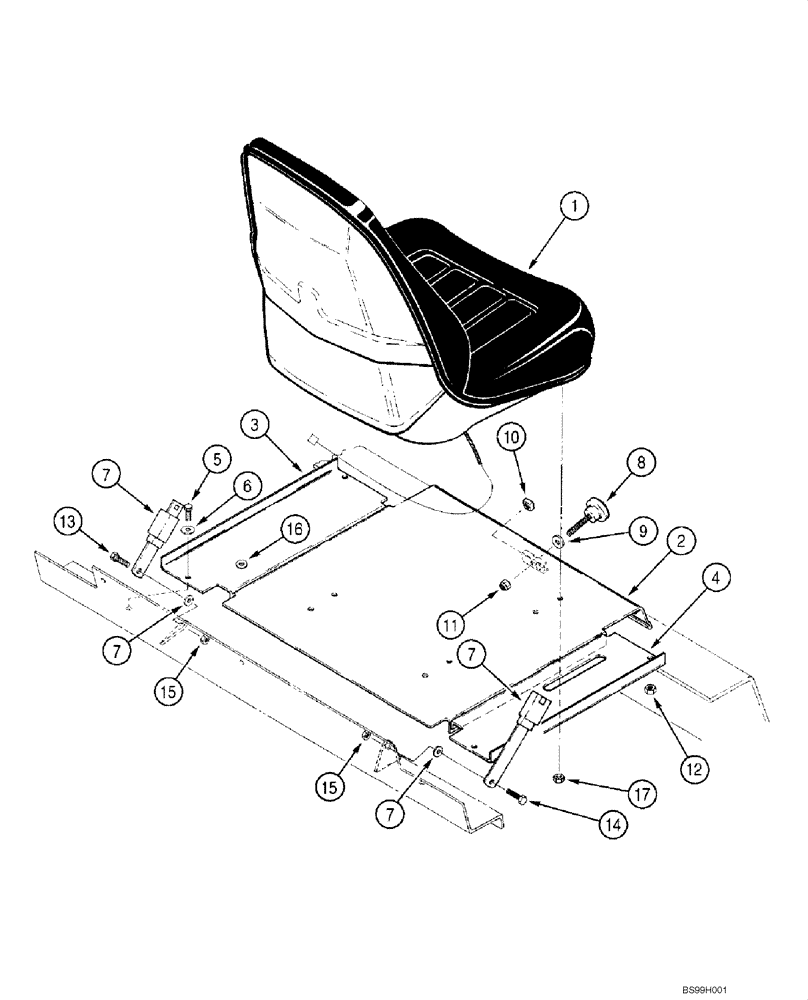

Запчасти Case 1840 (09-17A) - SEAT, MOUNTING - SUSPENSION (MODELS WITH EMISSIONS CERTIFIED ENGINE) (09) - CHASSIS/ATTACHMENTS

1

302139A2

SEAT

Deluxe; Component Parts Not Serviced Separately

1шт.

2

295896A2

LARGE PLATE

PLATE, LARGE

1шт.

3

133621A2

COVER

Left Hand

1шт.

4

133620A1

COVER

Right Hand

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

4шт.

7

249116A1

SAFETY BELT ,50.80 mm W

Retractable

1шт.

8

D133068

KNOB

1шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

10

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

11

232-4116

NUT,3/8"-16, GC

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3/8

2шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

232-4116

NUT,3/8"-16, GC

2шт.

16

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.

17

832-41308

NUT,M8 x 1.25, Cl 10

4шт.
