(02-14) - OIL FILTER AND COOLER, 4-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 1840 (02-14) - OIL FILTER AND COOLER, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

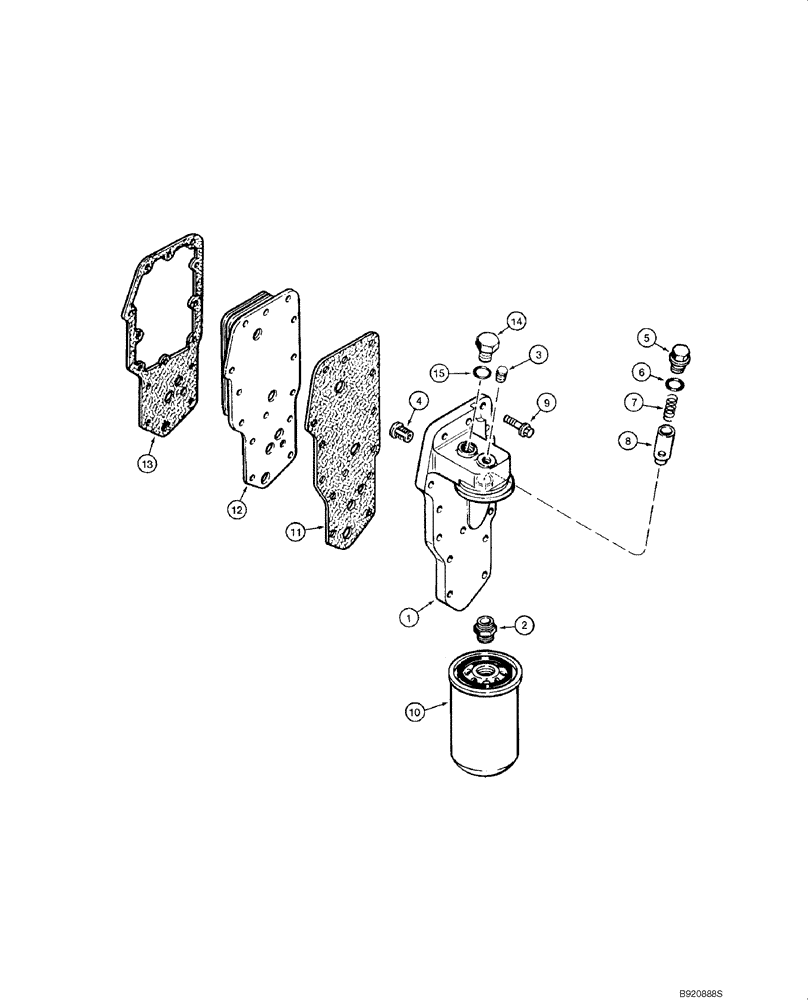

Схема запчастей Case 1840 - (02-14) - OIL FILTER AND COOLER, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
11
2
5
1
6
8
15
13
4
10
12
7
3
14
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

Oil Filter And Cooler; Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Lube Oil Filter

1шт.

2

J909355

ADAPTER

Filter Head

1шт.

3

J906619

PLUG,1/8" - 27

1/8 inch PT

1шт.

4

J936365

VALVE PRESSURE RELIE

Pressure Relief; Replaces J927622, J933615

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

1шт.

7

J918427

SPRING

54 mm free length

1шт.

8

J918428

PLUNGER

Regulator; Pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Engine Oil; Cartridge; If Used

1шт.

10

J934429

ENGINE OIL FILTER

Engine Oil; Cartridge; Premium Oil Filter; If Used

1шт.

11

J942915

GASKET

Filter Head; Replaces J929792

1шт.

12

87416027

OIL COOLER

Oil Cooler; Replaces J921557

1шт.

13

J942914

GASKET

Oil Cooler Core

1шт.

14

J919686

PLUG

12 mm; Incl. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
