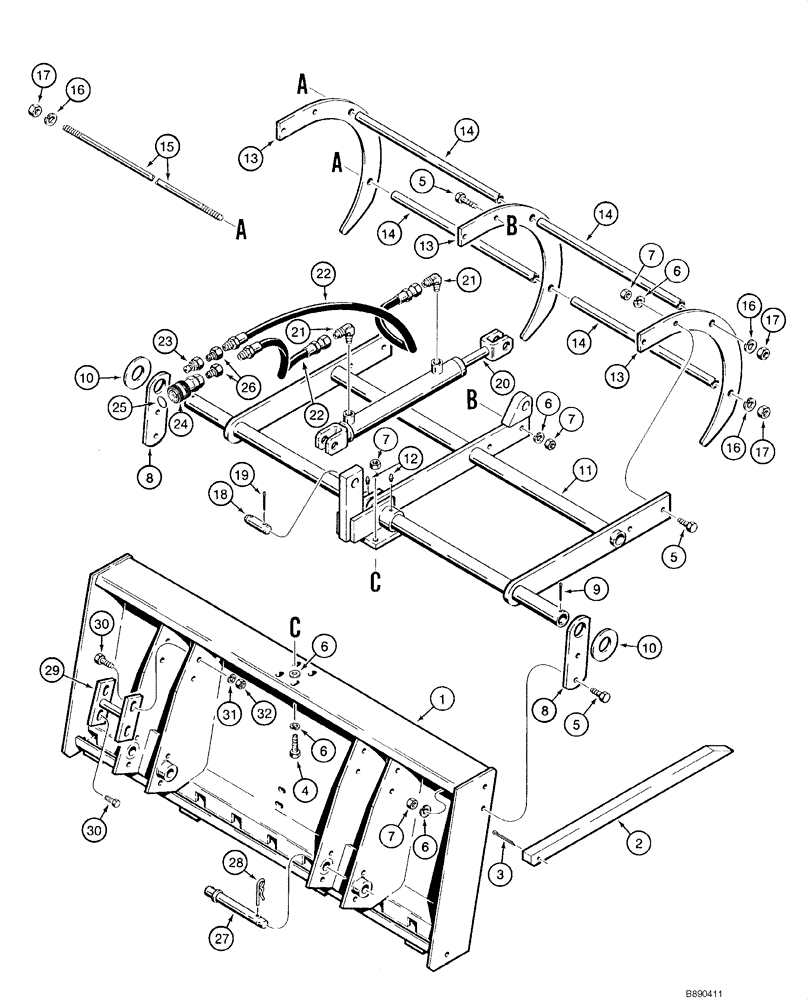

Запчасти Case 1840 (09-15) - MANURE FORK, GRAPPLE AND LOADER ATTACHMENT BAR (09) - CHASSIS/ATTACHMENTS

1

H673250

FRAME

Manure Fork; Pinned Coupler

1шт.

H673761

FORK

Manure Fork; Case Coupler; Not Illustrated

1шт.

2

D64911

TINE

Manure

11шт.

3

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

11шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

14шт.

8

D64908

BRACE

Pivot

2шт.

9

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.

10

195-116

WASHER,1 5/8"

1-3/4 x 3-3/4 x 3/16 in

2шт.

11

H673248

FRAME

Grapple

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

D64909

FORK

Grapple

3шт.

14

D64907

BUSHING

Fork

4шт.

15

D64912

ROD

2шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

17

425-1012

NUT,3/4"-10, G5

4шт.

18

D61036

PIN

Pivot

2шт.

19

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

20

D61075

CYLINDER

51 (2) ID x 203 mm (8 in) stroke; See Figure 08-29

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degree, 3/4-16 flare x 1/2 in PT

2шт.

22

D66596

HOSE

1676 mm (66 in) long

2шт.

23

1272770C2

COUPLING, BREAK AWAY

Quick Disconnect; Male

1шт.

24

H436396

COUPLING

Female; Incl. 25

1шт.

25

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

26

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 male x 3/8 in female

2шт.

27

D132172

PIN

Lower; Pallet Fork Frame To Loader Arm

2шт.

28

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

1/2 x 3-1/4 in

2шт.

29

D61308

PIN

Upper; Manure Fork Frame

2шт.

30

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

32

425-108

NUT,1/2" - 13, Gr 5

8шт.
