(09-14) - PALLET FORK, BRICK GUARD AND FRAME (MODELS WITH CASE COUPLER)

Запчасти Case 1840 (09-14) - PALLET FORK, BRICK GUARD AND FRAME (MODELS WITH CASE COUPLER) (09) - CHASSIS/ATTACHMENTS

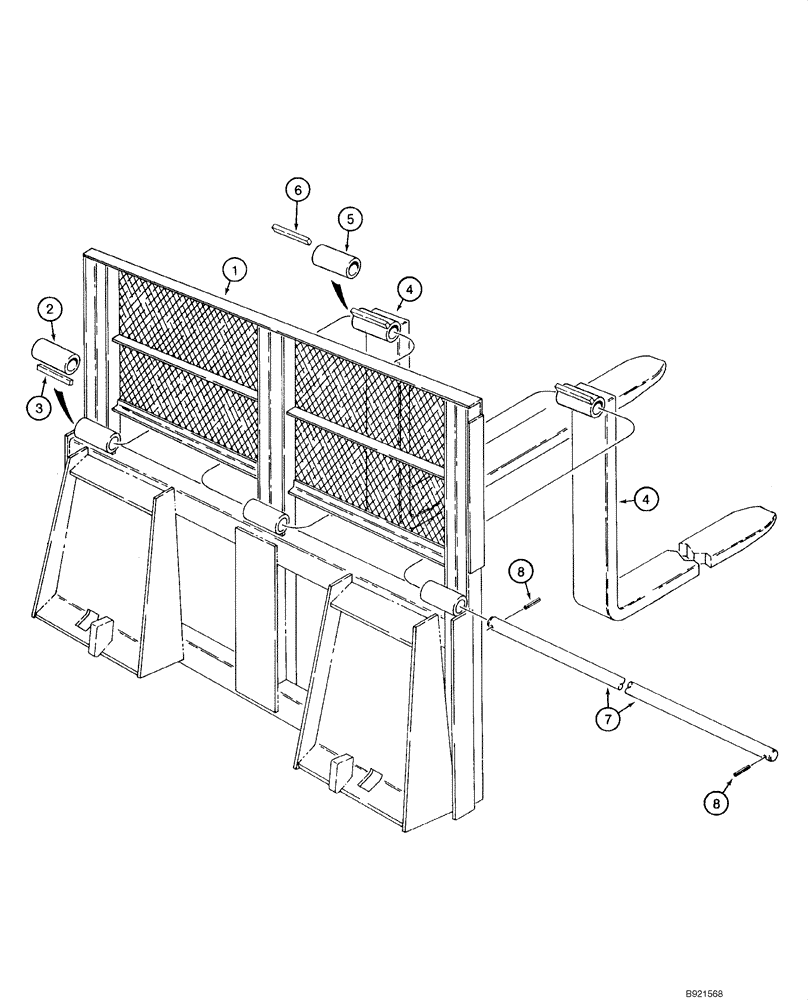

Схема запчастей Case 1840 - (09-14) - PALLET FORK, BRICK GUARD AND FRAME (MODELS WITH CASE COUPLER) (09) - CHASSIS/ATTACHMENTS
7
8
6
1
7
4
2
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H673629

FRAME

42 in; Pallet Fork; With Brick Guard; Incl. 2, 3

1шт.

2

T41518

BUSHING

Fork Mounting Rod

3шт.

3

T40765

SPACER

Bushing To Frame

3шт.

4

D77683

FORK

36 in; Pallet; Incl. 5, 6

2шт.

5

T41518

BUSHING

Fork Mounting Rod

1шт.

6

H438017

STOP

Fork Bushing

1шт.

4

H673833

FORK

42 in; Pallet; Incl. 5, 6

2шт.

5

T41518

BUSHING

Fork Mounting Rod

1шт.

6

H438017

STOP

Fork Bushing

1шт.

7

T41522

ROD

Fork Mounting

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

2шт.
