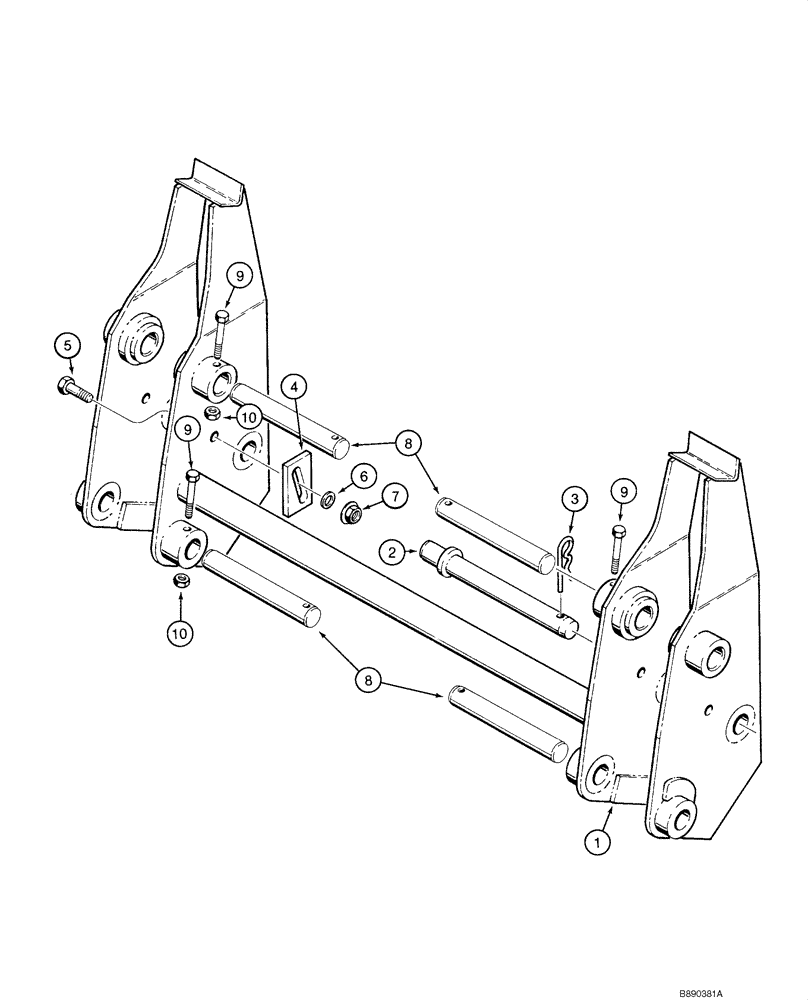

Запчасти Case 1840 (09-11) - COUPLER, PINNED (09) - CHASSIS/ATTACHMENTS

1

D90661

BAR ASSY.

Loader Attachment

1шт.

2

D132172

PIN

Lower; Pallet Fork Frame To Loader Arm

2шт.

3

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

1/2 x 3-1/4 in

2шт.

4

T40044

WEDGE

Bucket

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

D55925

PIN,25.4mm OD x 165.1mm L

Pivot

4шт.

9

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

4шт.

10

232-4116

NUT,3/8"-16, GC

4шт.
