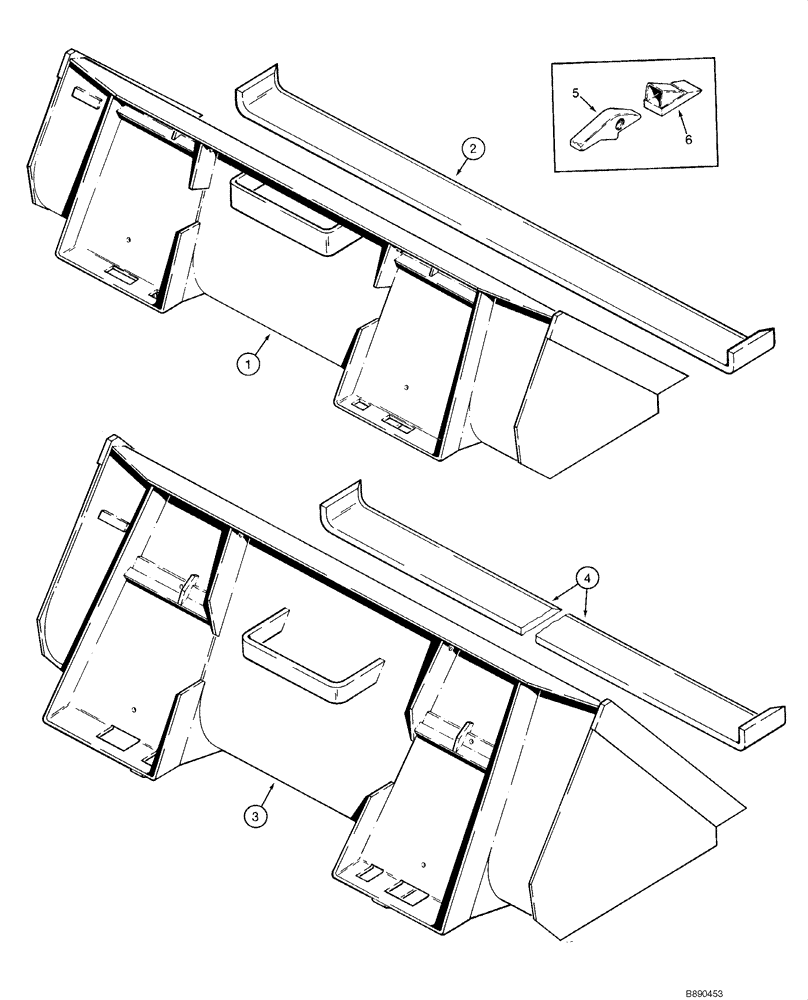

Запчасти Case 1840 (09-07) - BUCKETS (NORTH AMERICA), MODELS WITH CASE COUPLER (09) - CHASSIS/ATTACHMENTS

H673564

Bucket Assy, 54 in (1372 mm); Dirt; Order From Machinery Price List; Incl. Following 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 54 in (1372 mm); Dirt

1шт.

2

D126523

EDGE, CUTTING

6 in (152 mm); Cutting; Formed

1шт.

H673421

BUCKET

Assy, 63 in (1600 mm); Dirt; Incl. Following 1, 2; No Longer Available, Order H674861; See Figure 09-08

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 63 in (1600 mm); Dirt

1шт.

2

D124797

EDGE, CUTTING

6 in (152 mm); Formed; Bucket

1шт.

H673584

Bucket Assy, 54 in (1372 mm); Utility; Order From Machinery Price List; Incl. Following 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 54 in (1372 mm); Utility

1шт.

4

D126523

EDGE, CUTTING

6 in (152 mm); Formed

1шт.

H673585

BUCKET

63 in (1732 mm); Utility; Order From Machinery Price List; Incl. Following 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 63 in (1600 mm); Utility

1шт.

4

D124797

EDGE, CUTTING

6 in (152 mm); Formed

1шт.

H673586

BUCKET

Assy, 73 in (1854 mm); Utility; Order From Machinery Price List; Incl. Following 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 73 in (1854 mm); Utility

1шт.

4

D125644

EDGE, CUTTING

6 in (152 mm); Formed

1шт.

D127919

TOOTH

Bucket; Incl. 5, 6; No Longer Available, Order Component Parts Separately; Used Only On Dirt Buckets With 6 in (152mm) Cutting Edge

8шт.

5

D127918

SHANK, BUCKET TOOTH

Bucket; Tooth; Use With 6 in Cutting Edge; For Use With 6 inch Cutting Edge

1шт.

6

T41166

TOOTH

1шт.
