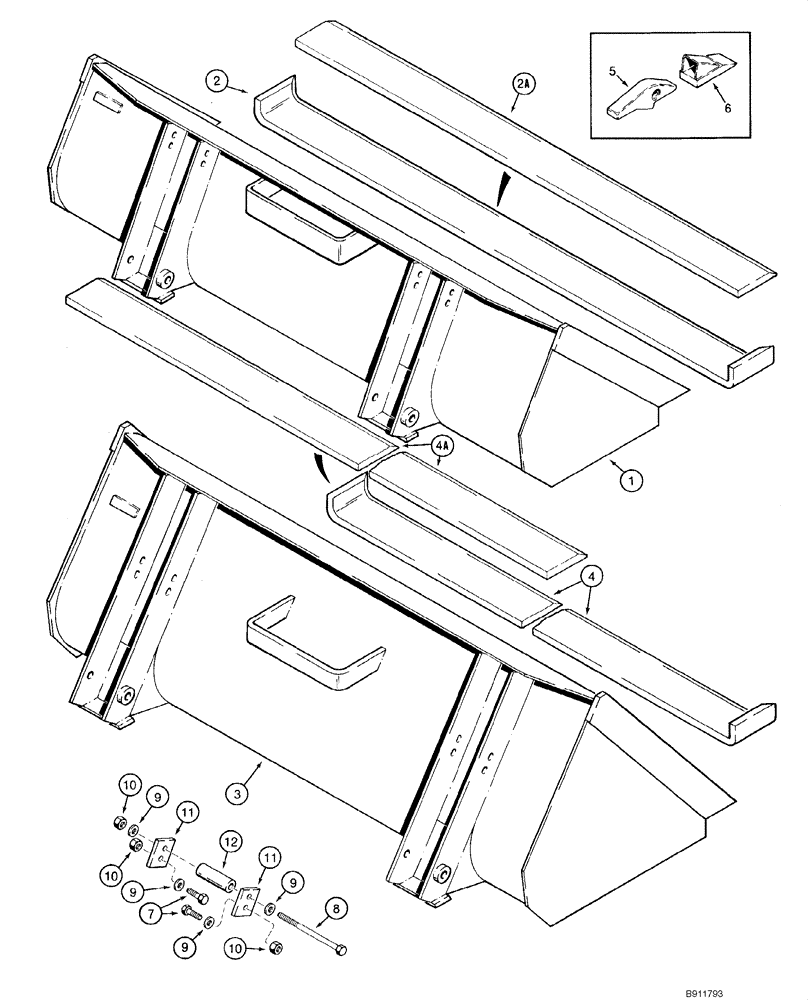

Запчасти Case 1840 (09-06) - BUCKETS (NORTH AMERICA), MODELS WITH PINNED COUPLERS (09) - CHASSIS/ATTACHMENTS

H673612

Bucket Assy, 54 in (1372 mm) wide; Dirt; Order From Machinery Price List; Incl. Following 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 54 in (1372 mm) wide; Dirt

1шт.

2

D126523

EDGE, CUTTING

6 in (152 mm); Formed; Bucket; If Used

1шт.

2a

H438890

EDGE, CUTTING

6 in (152 mm); Straight; Bucket; If Used

1шт.

H673613

BUCKET

Bucket Assy, 63 in (1600 mm); Dirt; Order From Machinery Price List; Incl. Following 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 63 in (1600 mm)

1шт.

2

D124797

EDGE, CUTTING

6 in (152 mm); Formed; Bucket

1шт.

2a

H438542

EDGE, CUTTING

6 in (152 mm); Straight; Bucket

1шт.

H673616

Bucket Assy, 54 in (1372 mm); Utility; Order From Machinery Price List; Incl. Following 3 - 4A

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 54 in (1372 mm); Utility

1шт.

4

D126523

EDGE, CUTTING

6 in (152 mm); Formed; Bucket

1шт.

4a

H438890

EDGE, CUTTING

6 in (152 mm) wide; Straight; Bucket

1шт.

H673617

Bucket Assy, 63 in (1600 mm); Utility; Order From Machinery Price List; Incl. Following 3 - 4A

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 63 in (1600 mm); Utility

1шт.

4

D124797

EDGE, CUTTING

6 in (152 mm); Formed; Bucket

1шт.

4a

H438542

EDGE, CUTTING

6 in (152 mm); Straight; Bucket

1шт.

H673618

Bucket Assy, 73 in (1854 mm); Utility; Order From Machinery Price List; Incl. Following 3 - 4A

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 73 inch (1854 mm); Utility

1шт.

4

D125644

EDGE, CUTTING

6 in (152 mm); Formed; Bucket

1шт.

4a

H438919

EDGE, CUTTING

6 in (152 mm); Straight; Bucket

1шт.

D127919

TOOTH

Assy; Bucket; Incl. 5, 6; No Longer Available, Order Component Parts Separately; Used Only On Dirt Buckets With 6 in (152mm) Cutting Edge

8шт.

5

D127918

SHANK, BUCKET TOOTH

For Use With 6 in Cutting Edge

1шт.

6

T41166

TOOTH

1шт.

7

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

4шт.

8

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

2шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

8шт.

10

429-1010

NUT,5/8"-11, G8

8шт.

11

H436093

PLATE

Mounting

4шт.

12

H436092

PIN,25.4mm OD x 115.25mm L

2шт.
