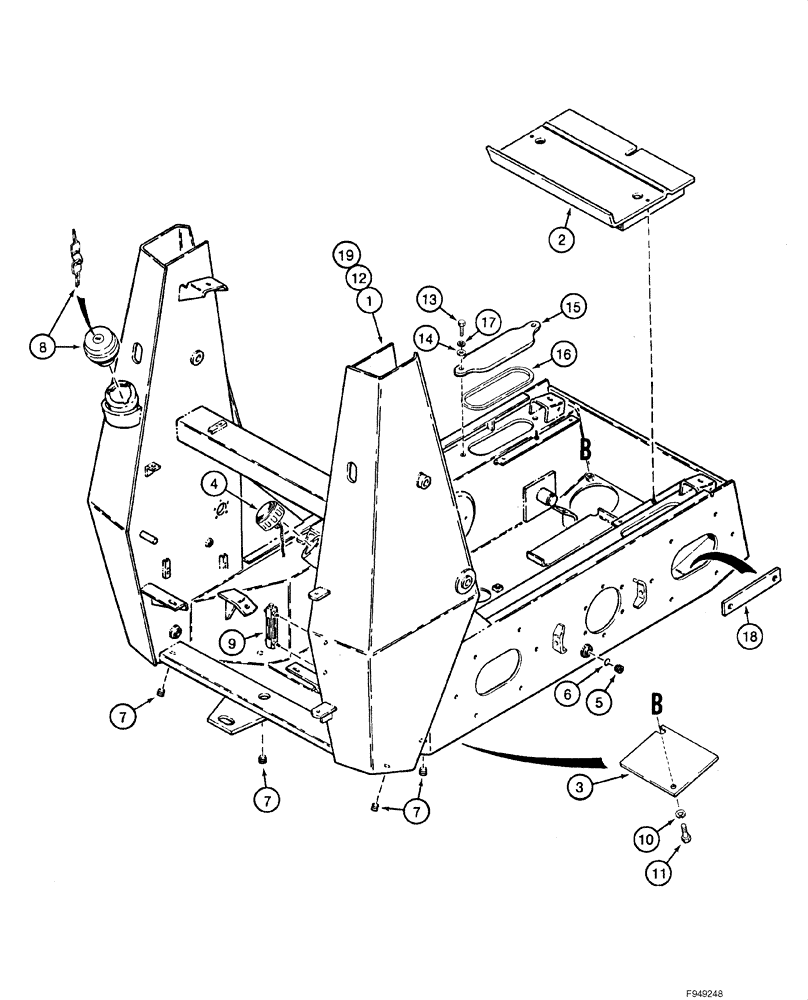

Запчасти Case 1840 (09-04) - CHASSIS (EUROPE, JAF0098065 - ) (09) - CHASSIS/ATTACHMENTS

1

H673374

CHASSIS

Uni-Loader; - JAF0098608; No Longer Available, Order 182440A1

1шт.

1

182440A1

CHASSIS

Uni-Loader; Not Illustrated; See Figure 09-01, REF 42

1шт.

2

H675152

LARGE PLATE

PLATE, LARGE Floor; Models With Hand Controls

1шт.

3

H436914

LARGE PLATE

PLATE, LARGE With One Hole And One Notch

4шт.

4

H674463

PLUG

With Filter

1шт.

5

9841223

PLUG,1-1/16" - 12 ORB

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

221-846

PLUG,Hex Soc, 1"-11 1/2

1 in; Use With REF 19

4шт.

8

108925A1

FILLER CAP

Fuel; Locking; Incl. (2) Keys

1шт.

9

H435669

GAUGE

Hydraulic Oil

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

12

182437A1

CHASSIS

Uni-Loader; JAF0098608 - JAF0134061; Replaces 101848A1

1шт.

13

129-410

WING NUT,3/8"-16

8шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

15

103264A2

COVER

Frame

4шт.

16

H438686

GASKET,323.4mm L

4шт.

17

492-11038

LOCK WASHER,3/8"

8шт.

18

H438670

BAR

Reinforcement; Axle Hub; Lower Mounting Bolts

4шт.

19

140738A1

FRAME

Uni-Loader; JAF0134061 -

1шт.
