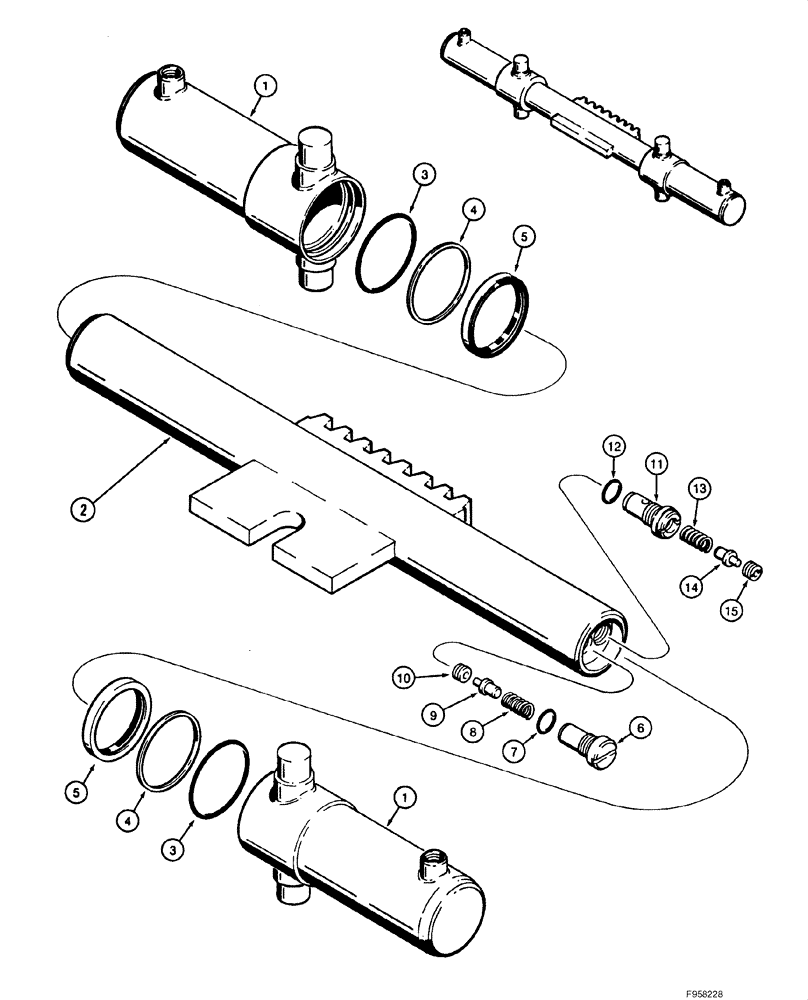

Запчасти Case 1840 (08-48) - CYLINDER ASSY - SWING (D100, D100XR) (08) - HYDRAULICS

H514125

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); Swing; Incl. 1 - 15; No Longer Available, Order 384865A1

1шт.

384865A1

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); See Figure 08-62B

1шт.

1

H392068

BARREL

Swing Cylinder

2шт.

2

H53017

PISTON ROD

1шт.

3

H743591

O-RING

2шт.

4

H754606

WASHER

2шт.

5

H215202

SEAL ASSY.

Tube To Piston Rod

2шт.

H53033

LOCK VALVE

Relief; Incl. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Body; Relief Valve

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

8

F37883

SPRING

Relief Valve

1шт.

9

H138362

SPOOL

Relief Valve

1шт.

10

NSS

NOT SOLD SEPARAT

Seat; Relief Valve

1шт.

H53025

LOCK VALVE

Relief; Incl. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Body; Relief Valve

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

13

F37883

SPRING

Relief Valve

1шт.

14

H138362

SPOOL

Relief Valve

1шт.

15

NSS

NOT SOLD SEPARAT

Seat; Relief Valve

1шт.

H53041

SEAL ASSY.

Incl. 3 - 5, 7, 12; No Longer Available, Order Components Separately

1шт.
