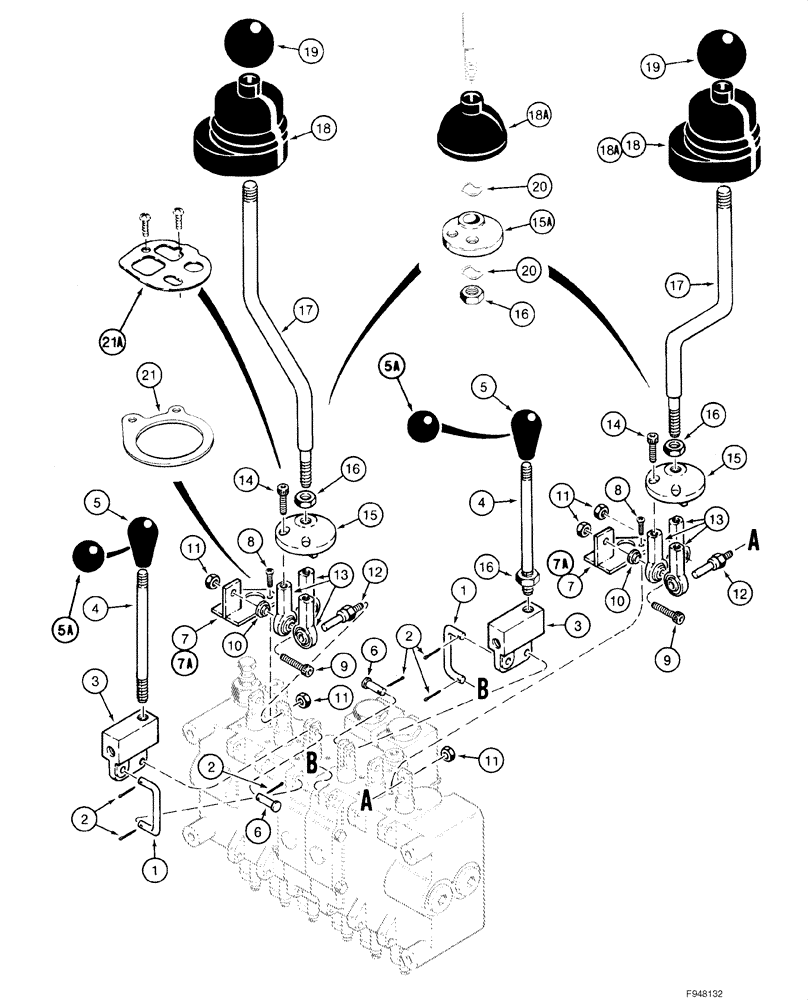

Запчасти Case 1840 (08-41) - VALVE, CONTROL - BACKHOE (DUKES), D100, D100XR (08) - HYDRAULICS

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-41 - 08-43; See Figure 08-57A

1шт.

1

H438042

ARM

Pivot Block

2шт.

2

432-412

COTTER PIN,1/16" x 3/4"

6шт.

3

H438043

BLOCK ASSY.

2шт.

4

100406A1

LEVER

5-1/4 in; Replaces H438040

2шт.

4

100406A1

LEVER

5-1/4 in; Stabilizer Section

2шт.

5

A14051

GRIP

Elliptical; If Used

2шт.

5a

H152207

BALL KNOB

Round; If Used

2шт.

6

427-4077

CLEVIS PIN,1/4" x .770"

2шт.

7

H438023

BRACKET

Dual Control Lever; No Longer Available, Order REF 7A, 21A

2шт.

7a

H438950

LARGE PLATE

PLATE, LARGE Dual Control Lever

2шт.

8

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

4шт.

9

62-32516

HEX SOC SCREW,1/4"-28 x 1"

2шт.

10

H438035

SPACER

2шт.

11

H438943

JAM NUT

6шт.

12

H438038

STUD

Rod End To Spool

2шт.

13

H438025

ROD

Dual Control Lever Plate

6шт.

14

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

4шт.

15

H438037

DISC

Dual Control Lever; If Used

2шт.

15a

H438944

ADAPTER

Dual Control Lever; If Used

2шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

17

H438022

LEVER

Dual Control

2шт.

18

H438036

PROTECTOR

Dual Control Lever; Use With REF 15; No Longer Available, Order H438946

2шт.

18a

H438946

PROTECTOR

Dual Control Lever; Use With REF 15A

2шт.

19

A23885

KNOB

Dual Control Lever

2шт.

20

H438956

WASHER

Use With REF 15A

4шт.

21

100407A1

LARGE PLATE

PLATE, LARGE Use With REF 15A; No Longer Available, Order REF 7A, 21A

2шт.

21a

H438951

LARGE PLATE

PLATE, LARGE Use With REF 15A

2шт.
