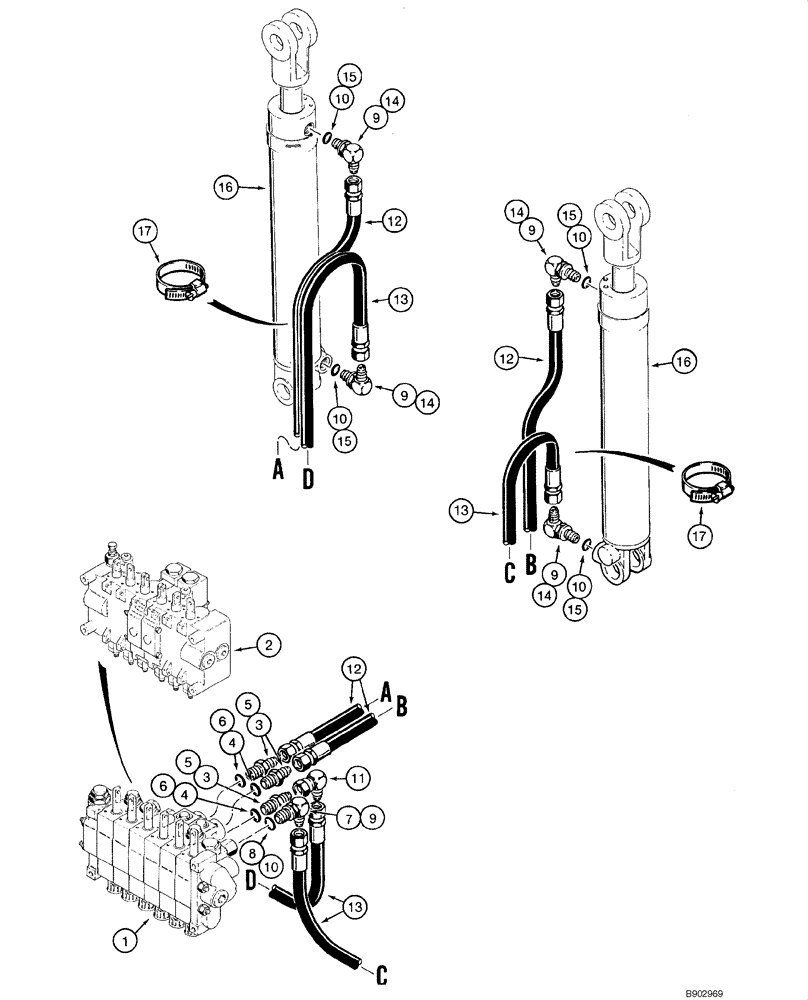

Запчасти Case 1840 (08-34) - HYDRAULIC SYSTEM - STABILIZER CYLINDER (D100, D100XR) (08) - HYDRAULICS

1

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, REF 2

1шт.

2

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-41 - 08-43; See Figure 08-57A

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; See Figure 08-57A

1шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

O-ring boss, Used with Ref 1, Incl. 4

3шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16-18 flare x 3/4-16 in O-ring boss; Incl. 6; Used With REF 2

3шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adj O-ring boss; Incl. 8; Used with Ref 1

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 10; Used with Ref 2

5шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

Used with Ref 1

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Used with Ref 2

1шт.

12

H434457

HOSE

70-7/8 in (1800 mm); To Rod End Of Stabilizer Cylinder; Used With REF 1

2шт.

12

H437861

HOSE

59 in (1500 mm); To Rod End Of Stabilizer Cylinder; Used With REF 2

2шт.

13

H375774

HOSE,9.53mm ID x 1500mm L, SAE 100R1

To Closed End Of Stabilizer Cylinder; Used With REF 1

2шт.

13

H437862

HOSE

70-7/8 in (1800 mm); To Closed End Of Stabilizer Cylinder; Used With REF 2

2шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 15; Used with Ref 1

4шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

Cylinder Assy; Stabilizer; See Figure 08-61

2шт.

17

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in

2шт.
