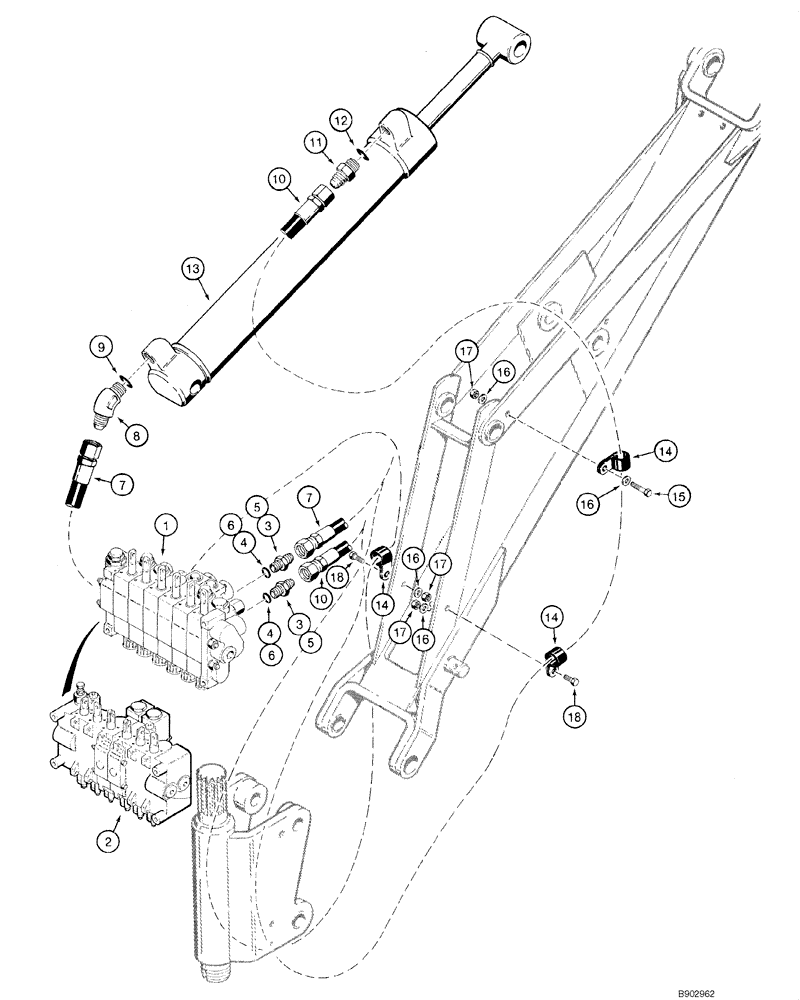

Запчасти Case 1840 (08-32) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (D100, D100XR) (08) - HYDRAULICS

1

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, REF 2

1шт.

2

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-41 - 08-43; See Figure 08-57A

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; See Figure 08-57A

1шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

O-ring boss, Used with Ref 1, Incl. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Used With REF 2; Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H434465

HOSE

63 in (1600 mm); To Closed End Of Dipper Cylinder

1шт.

8

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj O-ring boss; Incl. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

H434464

HOSE

86-5/8 in (2200 mm); To Rod End Of Dipper Cylinder

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Incl. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3 (76) ID x 14-5/8 in (372 mm); Dipper; See Figure 08-44; D100

1шт.

13

G109376

CYLINDER BLOCK

3 (76) ID x 23-13/16 in (605 mm); Dipper; See Figure 08-45; D100XR

1шт.

14

H51763

CLAMP

Hose

3шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

17

230-4214

LOCK NUT,1/4"-20, GA

3шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
