(02-08) - FRONT GEAR COVER, 4-390 ENGINE

Запчасти Case 1840 (02-08) - FRONT GEAR COVER, 4-390 ENGINE (02) - ENGINE

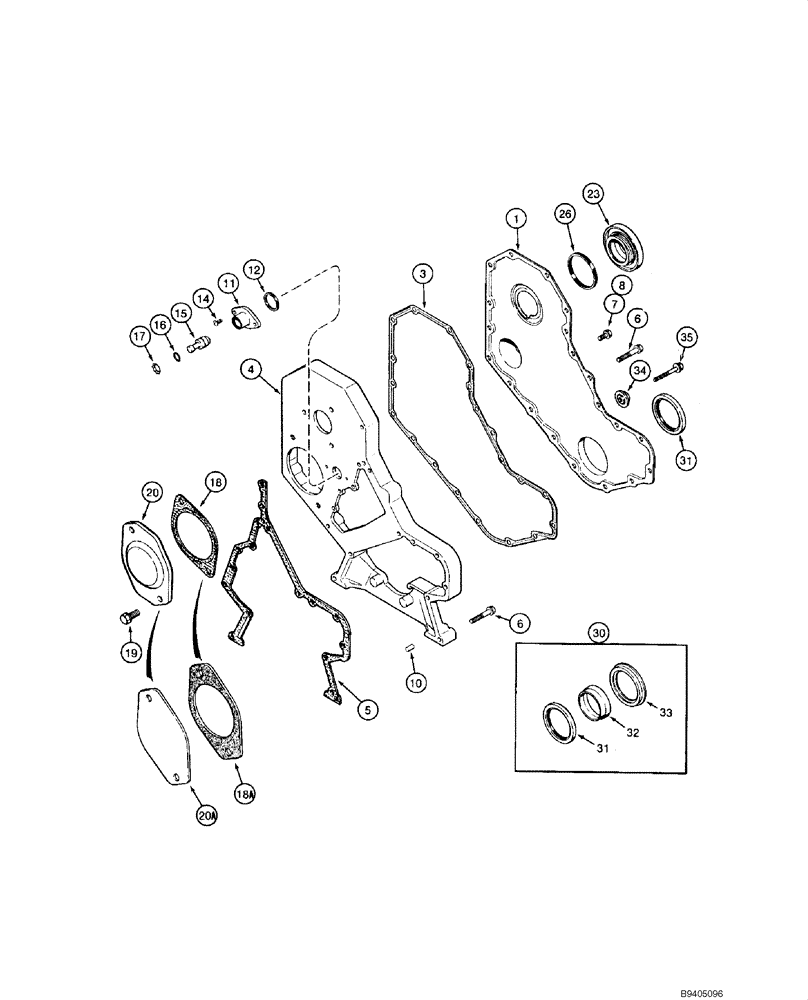

Схема запчастей Case 1840 - (02-08) - FRONT GEAR COVER, 4-390 ENGINE (02) - ENGINE
17
30
5
34
31
32
23
15
18
20a
4
10
3
12
8
20
26
14
7
18a
11
6
1
19
33
35
16
31
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J903794

COVER

Front Gear; No Longer Available, Order J286312

1шт.

1

J286312

COVER

1шт.

3

J914385

GASKET,1.02mm Thk

Front Cover

1шт.

4

J920758

HOUSING

Timing Gear; Replaces J910411, J917759 or J920518

1шт.

5

J916131

GASKET

Gear Housing; No Longer Available, Order J938156

1шт.

5

J938156

GASKET,0.79mm Thk

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

(8) Timing Gear Cover To Housing To Cylinder Block; (2) Timing Gear Cover To Cylinder Block

10шт.

7

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

8 - 1.25 x 16 mm; 10.9; Timing Gear Cover To Housing

11шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Timing Gear Housing to Cylinder Block

5шт.

10

J900257

PIN,10.01mm OD x 16mm L

16 mm; Locating

2шт.

11

J919683

HOUSING

Timing Pin Housing; Replaces J905933

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Timing Pin Housing; Replaces J914092

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

Timing Pin

1шт.

16

J913994

O-RING

1шт.

17

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

18

J913192

GASKET

Access Cover Plate; No Longer Available, Order J919601, REF 18A

1шт.

18a

J919601

GASKET

Access Cover Plate; No Longer Available, Order 144169C2

1шт.

18a

144169C2

GASKET,0.79mm Thk

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

20

J909918

PLATE

Access Cover; Indented; Accessory Drive; No Longer Available, Order J914868, REF 20A

1шт.

20a

J914868

COVER

Access Cover; Flat; Accessory Drive

1шт.

23

J903463

PLUG,M63 x 5

Front Access Cover; If Used

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover; North American Models; If Used

1шт.

30

J904353

GASKET KIT

Oil Seal; Crankshaft Front; Incl. 31 - 33; If Used; No Longer Available, Order A77889; See Figure 02-28, REF 13

1шт.

31

NSS

NOT SOLD SEPARAT

Seal; Oil; Crankshaft Front

1шт.

32

NSS

NOT SOLD SEPARAT

Tool; Seal Installation

1шт.

33

NSS

NOT SOLD SEPARAT

Tool; Seal Installation

1шт.

34

J912772

RETAINER

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
