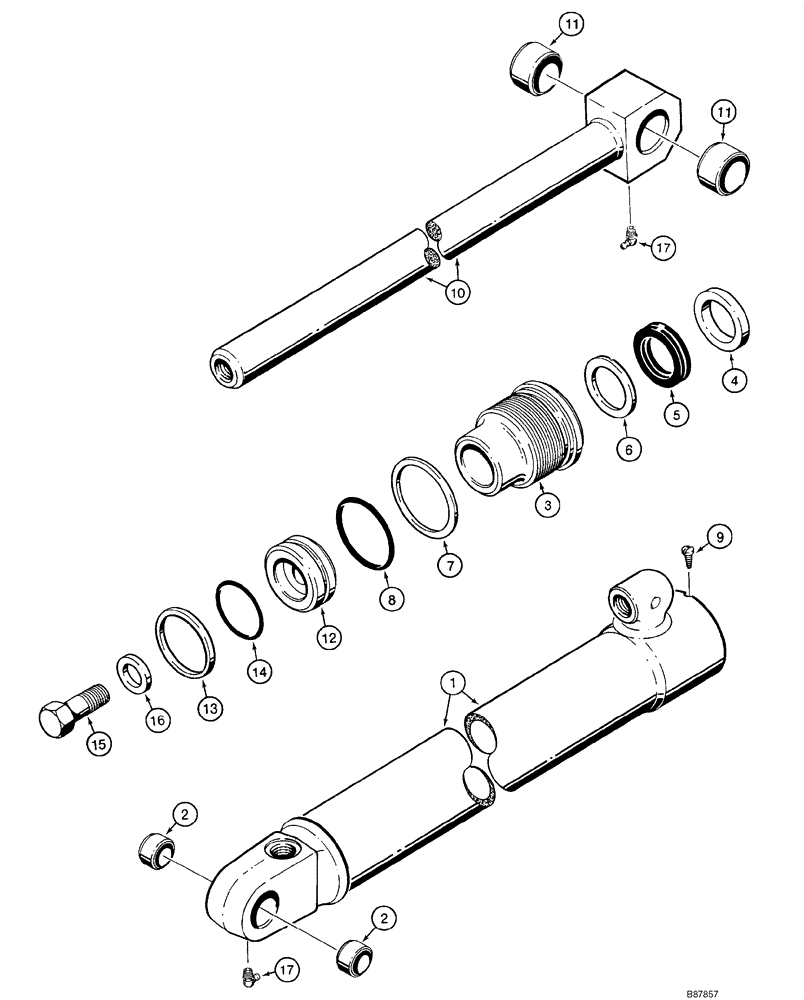

Запчасти Case 1840 (08-25) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

G110666

CYLINDER

2-1/2 (64) ID x 26-3/4 in (679 mm); Loader Lift; Incl. 1 - 17; For Mounting, See Figure 09-05; For Hydraulic Circuit, See Figure 08-01, 08-02; No Longer Available; Order 117824A1, See Figure 08-26

2шт.

1

G110667

TUBE,2.497" ID x 33.94" L

Cylinder; Incl. 2; No Longer Available, Order 117825A1, 117830A1, 128725A1; See Figure 08-26

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

2шт.

G104008

GLAND

Cylinder; Incl. 3 - 8; No Longer Available, Order 1542960C1

1шт.

3

1542960C1

GLAND

Cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

5

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

Wide; With O-Ring

1шт.

6

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

Narrow

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

10

128301A1

ROD

1-1/2 in (38 mm); Piston; Incl. 11; Replaces G106824

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

Piston Rod

2шт.

12

S220090

PISTON

Replaces G104100

1шт.

13

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

1шт.

14

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

G109458

GASKET KIT

Incl. 4 - 8, 13, 14; No Longer Available, Order 128725A1; Also Incl. 238-5230, O-ring, G32129, backup ring, Not Used In This Application

1шт.
