Запчасти Case 1840 (08-09) - HYDROSTATIC DRIVE HYDRAULICS, (NORTH AMERICA) (08) - HYDRAULICS

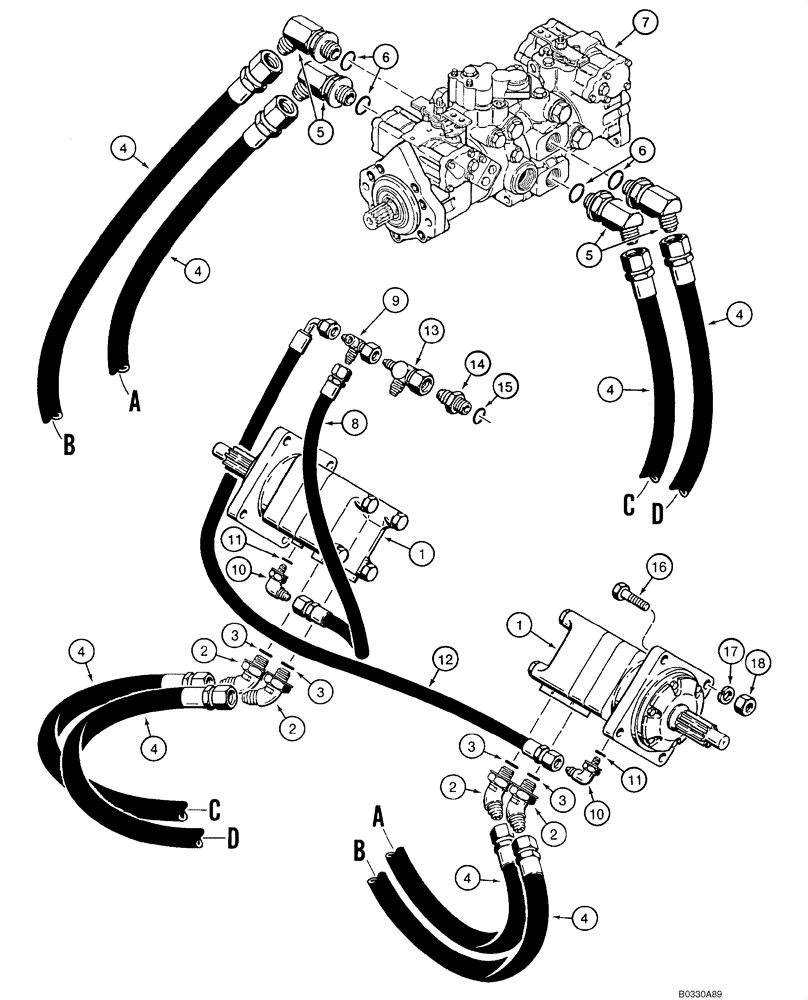

Схема запчастей Case 1840 - (08-09) - HYDROSTATIC DRIVE HYDRAULICS, (NORTH AMERICA) (08) - HYDRAULICS
10
4
12
1
16
4
2
2
11
3
2
3
14
4
17
1
9
13
6
4
8
5
6
18
7
4
10
2
11
4
5
3
15
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Motor Assy; Hydraulic Drive; See Figure 08-14 - 08-17; North America

2шт.

2

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 degree, 1-1/16-12 inch flare x adj O-ring boss; Incl. 3

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H435736

HOSE ASSY.,19.05mm ID x 1100mm L, SAE 100R12

1100 mm (43-5/16 in); Drive Motors To Tandem Pump

4шт.

5

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, 1-5/16-12 inch flare x adj O-ring boss; Incl. 6

4шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

REF

INSTRUCTION

Pump Assy; Tandem; See Figure 06-07 - 06-09D

1шт.

8

H436667

HOSE ASSY.

356 mm (14 in); Left Hand; Drive Motor To Tee; Replaces H195750

1шт.

9

H435873

TEE

Adapter

1шт.

10

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, 3/4-16 flare x 9/16-18 in adj O-ring boss; Incl. 11

2шт.

12

H436616

HOSE ASSY.

650 mm (25-1/2 inch); Right Hand; Drive Motor To Tee; Replaces D125524

1шт.

13

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1-1/16-12 flare branch x swivel x 3/4-16 in flare

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

O-Ring boss; Incl. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 NC x 2-1/4 in; Use With H673449 or H673057 Motors; See Figure 08-15 - 08-14

8шт.

16

428-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

5/8 NF x 2 inch; 8; Use With 141387A2 or 135858A2 Motors; See Figure 08-16, 08-18

8шт.

17

492-11062

BEARING WASHER,5/8"

8шт.

18

425-1010

NUT,5/8"-11, G5

Use with H673449 or H673057 Motors; See Figure 08-15 - 08-14

8шт.

18

429-1110

NUT,5/8"-18, G8

Use with 141387A2 or 135858A2 Motors; See Figure 08-16, 08-18

8шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
