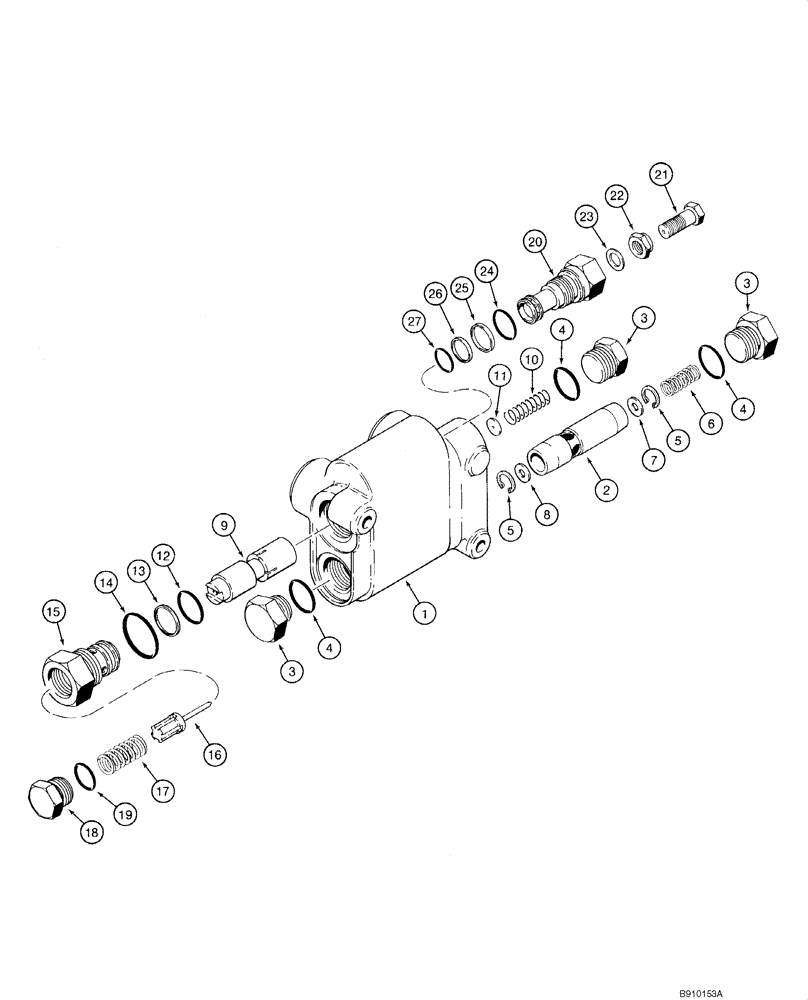

Запчасти Case 1840 (08-08) - VALVE ASSY, SELF LEVEL (08) - HYDRAULICS

H673705

VALVE

Self-Leveling; Incl. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

Body; Valve

1шт.

2

NSS

NOT SOLD SEPARAT

Spool; Flow Divider

1шт.

3

86512512

PLUG,7/8" - 14 ORB

Incl. 4

3шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

A59973

SNAP RING,0.50", Int, #50

0.50", Int, #50

2шт.

6

H438336

SPRING

Flow Divider Spool

1шт.

7

H438330

LARGE PLATE

PLATE, LARGE .173 in

1шт.

8

H438331

LARGE PLATE

PLATE, LARGE .204 in

1шт.

9

NSS

NOT SOLD SEPARAT

Spool; Metering

1шт.

10

H438335

SPRING

Metering Spool; Plug End

1шт.

11

H438332

LARGE PLATE

PLATE, LARGE

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

A52424

BACK-UP RING

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

H438333

JACK SCREW

Metering Spool

1шт.

16

H438334

VALVE

Cartridge

1шт.

17

H438337

SPRING

Metering Spool; Cartridge End

1шт.

18

214389

PLUG,3/4" - 16 ORB

Includes 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

H674615

VALVE

Relief; Incl. 20 - 27

1шт.

20

NSS

NOT SOLD SEPARAT

Body; Relief Valve

1шт.

21

H438229

ADJUSTMENT SCREW

Relief Valve

1шт.

22

H438228

NUT

Relief Valve

1шт.

23

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

1шт.

24

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

25

H438329

GASKET

1шт.

26

H438044

GASKET

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.
