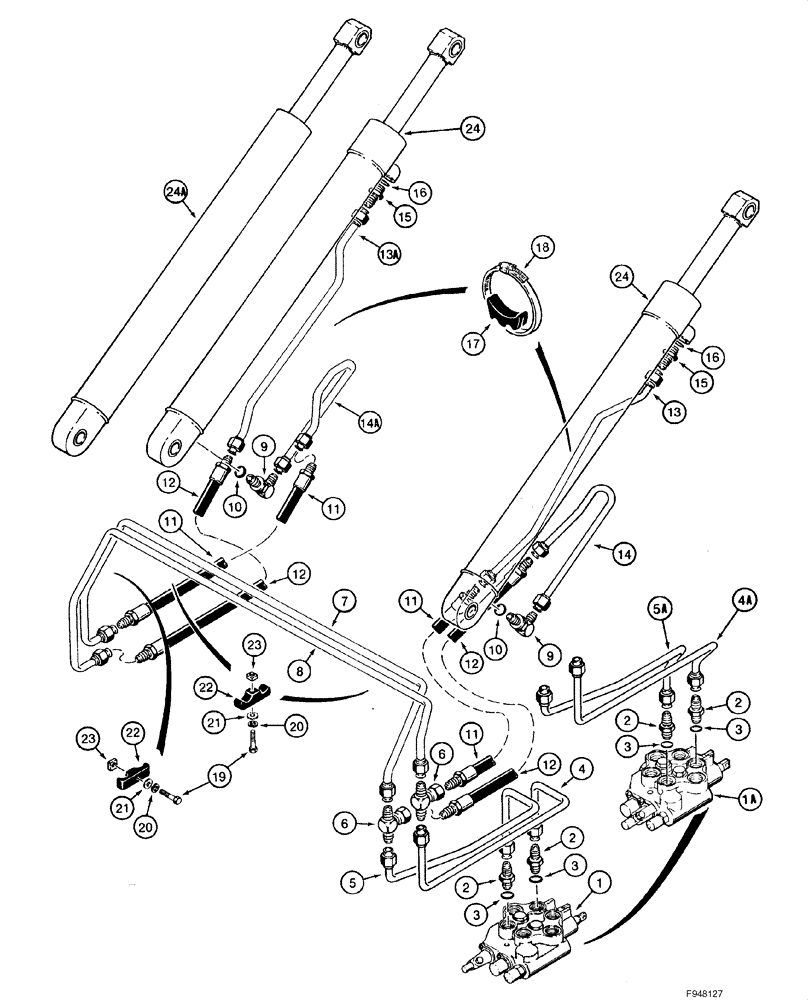

Запчасти Case 1840 (08-01) - HYDRAULICS - LOADER LIFT (MODELS WITHOUT SELF-LEVELING) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy; Loader Control; - JAF0120445; See Figure 08-05

1шт.

1a

108222A1

VALVE

Loader Control; JAF0120445 - ; See Figure 08-07

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H673507

TUBE,0.5" OD

Control Valve, Port CFront; - JAF0120445

1шт.

4a

129370A1

TUBE

Control Valve, Port C; JAF0120445 - ; Models Without Emissions Certified Engine

1шт.

4b

292684A1

TUBE,388, 265 mm Length

Control Valve, Port C; Models With Emissions Certified Engine; Not Illustrated

1шт.

5

H673509

TUBE,0.5" OD

Control Valve, Port D; Rear; - JAF0120445

1шт.

5a

H673924

PIPE ASSY.,0.5" OD

Control Valve, Port D; Rear; JAF0120445 - ; Models Without Emissions Certified Engine

1шт.

5b

292682A1

TUBE,346, 232 mm Length

Control Valve, Port D; Rear; Models With Emissions Certified Engine; Not Illustrated

1шт.

6

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 in

2шт.

7

H673695

TUBE,12.7 mm OD

Crossover; To Closed End Of Lift Cylinders

1шт.

8

H673696

TUBE,0.5" OD

Crossover; To Rod End Of Lift Cylinders

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

H436410

HYDRAULIC HOSE,9.53mm ID x 400mm L

To closed end of LH lift cylinder and rod end of RH lift cylinders

2шт.

12

H436409

HYDRAULIC HOSE,9.53mm ID x 475mm L

To rod end of LH lift cylinder and closed end of RH lift cylinders

2шт.

13

D125480

TUBE ASSY.

To Rod End Of Right Hand Lift Cylinder

1шт.

13a

H673439

TUBE ASSY.,0.5" OD

To Rod End Of Left Hand Lift Cylinder

1шт.

14

D125488

TUBE ASSY.

To Closed End Of Right Hand Lift Cylinder

1шт.

14a

H673438

TUBE ASSY.,0.5" OD

To Closed End Of Left Hand Lift Cylinder

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; Incl. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

R24703

SUPPORT

Tubes To Lift Cylinder

2шт.

18

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

22

D120679

CLAMP,Tube, 1/2"

3шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

24

G110666

CYLINDER

64 (2-1/2) ID x 679 mm 3]26-3/4 in) stroke; Loader Lift; See Figure 08-25; - JAF0131936; No Longer Available, Order 117824A1, REF 24A

2шт.

24a

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

64 (2-1/2) ID x 679 mm (26-3/4 in) stroke; See Figure 08-26; JAF0131936 -

2шт.
