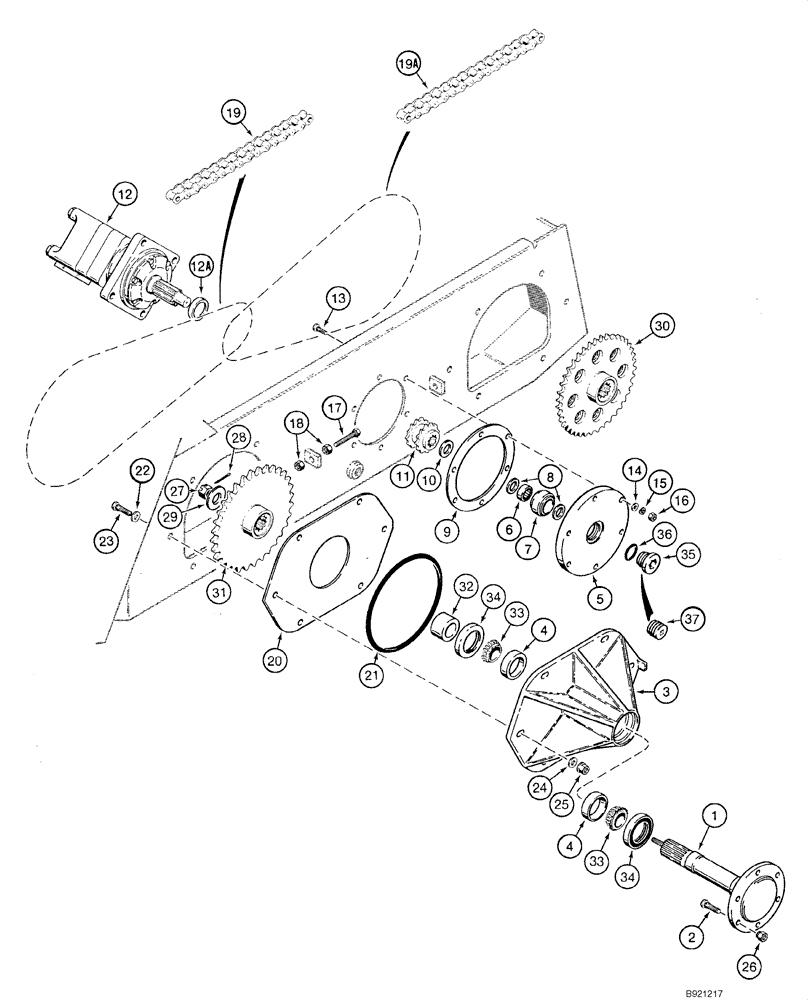

Запчасти Case 1840 (06-12) - AXLES - DRIVE CHAINS, - JAF0098608 (06) - POWER TRAIN

103825A1

AXLE

Drive Wheel; Incl. 1, 2; - JAF0098608; Replaces H672982; See Figure 06-13

4шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

H435130

WHEEL BOLT

1/2 in; If Used

6шт.

2

130782A1

WHEEL BOLT,Rnd Hd, 9/16" - 18 x 40mm, Gr 5

40 mm; If Used

6шт.

3

H436341

HUB,Axle

Incl. 21; Replaces H435001

4шт.

3a

S6042

O-RING,0.275" Thk x 9.945" ID, -449, 70 Duro

Used With REF 3; Not Illustrated

4шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

2-57/64 inch OD

8шт.

5

H435042

HOUSING

Order H438913, REF 5, REF 37

1шт.

5

H438913

LARGE PLATE

PLATE, LARGE Also Order REF 37

2шт.

6

D80554

NEEDLE BEARING CAGE

Hydraulic Motor Shaft

2шт.

7

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

Self-Aligning

2шт.

8

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

Bearing

4шт.

9

D136535

GASKET,1.57mm Thk

Bearing Housing

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

Thrust Drive Sprocket

2шт.

11

H435768

DRIVE SPROCKET

10 teeth; No Longer Available, Order H436803

2шт.

11

H436803

DRIVE SPROCKET

10 teeth

2шт.

12

H673057

MOTOR, HYDRAULIC

See Figure 08-14; No Longer Available, Order H673449

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

REMAN-HYD MOTOR

1840 JAF0098608, Reman For New P/N H673057

2шт.

231815A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

12

H673449

MOTOR, HYDRAULIC

See Figure 08-15; No Longer Available, Order 231815A1

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

REMAN-HYD MOTOR

1840 JAF0098608, Reman For New P/N H673449

2шт.

231815A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

12

231815A1

MOTOR, HYDRAULIC

See Figure 08-15

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

REMAN-HYD MOTOR

1840 -JAF0098608

2шт.

231815A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

12a

H435234

SPACER

Drive Sprocket To Drive Motor; - JAF0046205

2шт.

13

H435895

BOLT

Pressed In Type; Bearing Housing To Chassis

12шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

12шт.

15

492-11038

LOCK WASHER,3/8"

12шт.

16

425-106

NUT,3/8"-16, Cl 5

12шт.

17

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

8шт.

19

H435116

CHAIN,#80H, 62 Links x 25.4mm = 1574.8mm

62 pitches; Endless; Rear

2шт.

19a

H435117

CHAIN (CE)

56 pitches; Endless; Front

2шт.

20

H434999

PLATE ASSY.

4шт.

21

S6042

O-RING,0.275" Thk x 9.945" ID, -449, 70 Duro

4шт.

22

H435121

WASHER

Hub Bolt To Chassis

24шт.

23

H435130

WHEEL BOLT

1/2 in; Hub To Chassis; Pressed In Type

24шт.

24

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

17/32 x 1-1/4 x 5/32; Replaces H439308

24шт.

25

131-918

FLANGE NUT,Flg, 1/2"-20, G5

1/2IN

24шт.

26

G49041

WHEEL NUT

9/16IN, If Used

24шт.

26

F23214

WHEEL NUT

1/2IN, If Used

24шт.

27

425-1316

NUT,1"-14, G5

1IN

4шт.

28

432-1028

COTTER PIN,5/32" x 1 3/4"

4шт.

29

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

1шт.

30

H435243

DRIVE SPROCKET

33 Teeth; Front; Axle

2шт.

31

H435258

DRIVE SPROCKET

33 Teeth; Rear; Axle

2шт.

32

H435244

SPACER

43 x 57 x 38 mm long; Axle

4шт.

33

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

1-25/32 in ID

8шт.

34

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

8шт.

35

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. 36; used with H435042, Ref 5

2шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

37

221-846

PLUG,Hex Soc, 1"-11 1/2

1 inch PT

2шт.

38

B93176

BEARING,45.24mm ID x 73.46mm OD

Kit P/N B93176 CONSISTS OF: QTY. 2, 399933C91 CONE; QTY. 2, 399934C1 CUP; QTY. 2 D53767 SEAL. APPLICATIONS: CASE UNI-LOADER MODELS: 1830, 1835, 1835B, 1835C, 1840.

1шт.
