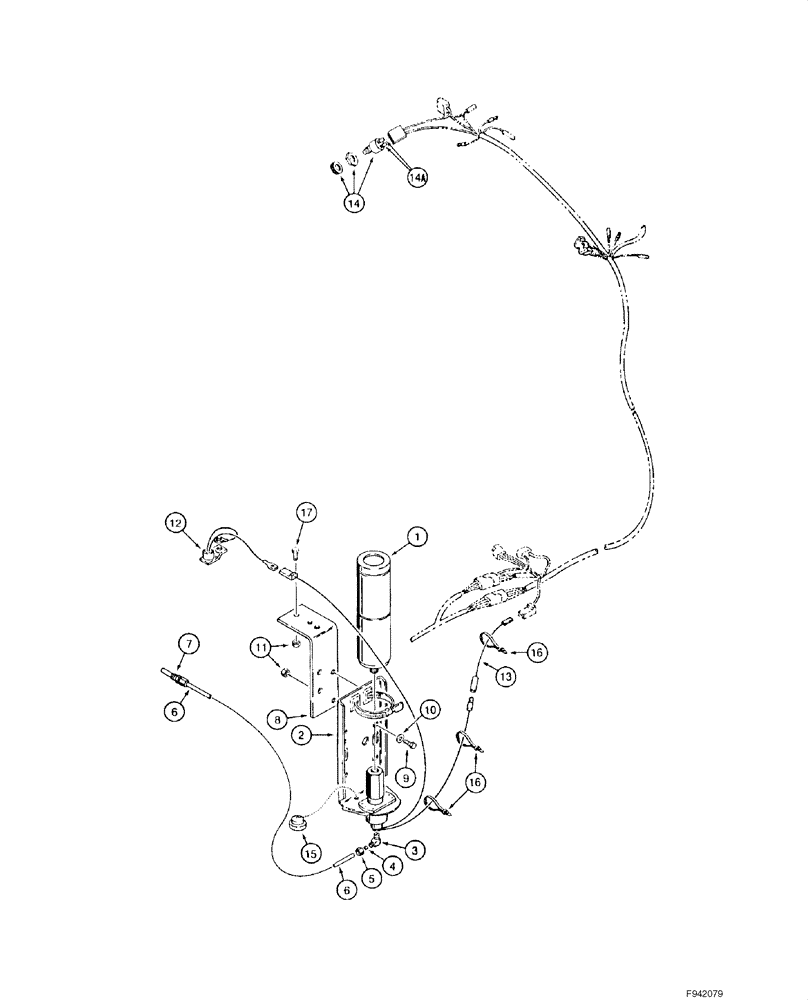

Запчасти Case 1840 (02-04) - COLD START SYSTEM (NORTH AMERICA) (02) - ENGINE

1

A171940

CYLINDER

Starting Fluid; Models Without Emissions Certified Engine

1шт.

1

310992A1

START SPRAY FLUID

Starting Fluid; Models With Emissions Certified Engine

1шт.

2

A172116

VALVE

Cold Start; Starting Fluid Injection; Component Parts Not Serviced Separately; Models Without Emissions Certified Engine

1шт.

2

284710A2

VALVE

3 cc; Cold Start; Starting Fluid Injection; Component Parts Not Serviced Separately; Models With Emissions Certified Engine

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Body; Elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

6

R37216

TUBE,152.4 mm L

457 mm (6 inch); Cut From L60539X

1шт.

7

A172900

NOZZLE CAP

Atomizer; Cold Start; Component Parts Not Serviced Separately

1шт.

8

138376A1

BRACKET

Valve Mounting; Replaces D133067; Models Without Emissions Certified Engine

1шт.

8

291853A1

SUPPORT

Valve Mounting; Models With Emissions Certified Engine

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

A171943

IGNITION SWITCH

Circuit Breaking; Incl. Lead Wires

1шт.

13

D135030

ELECTRICAL WIRE

WIRE

1шт.

D90961

SWITCH

Cold Start; Not Serviced As An Assembly; For Service, Order Individual Components; Incl. 14, 14A

1шт.

14

L72776

SWITCH

Push Button

1шт.

14a

L59682

TERMINAL CONNECTOR

2шт.

15

N8826

PLUG

With Chain; If Used

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

L60539X

TUBE

3 (1/8) ID x 4267 mm (168 inch)

1шт.
