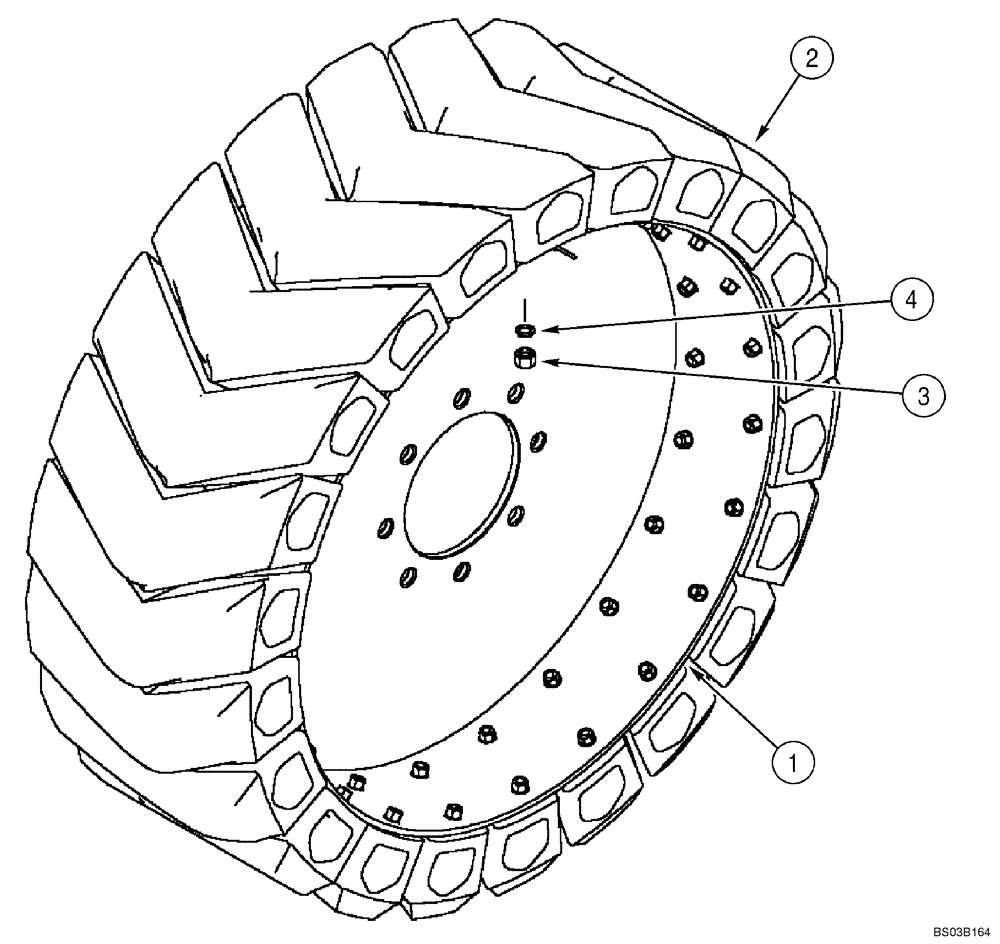

Запчасти Case 1840 (06-11) - WHEELS (06) - POWER TRAIN

346282A1

TYRE/TIRE

Assy, 10 x 16.5 in; Replaces 253725A1; Incl. Right And Left Hand Wheel Assy As Follows

1шт.

NSS

NOT SOLD SEPARAT

Wheel Assy, 10 x 16.5; Right Hand; Incl. 1, 2

2шт.

1

137234A1

RIM

WHEEL 10 x 16.5 in; Right Hand

1шт.

2

346263A1

TYRE/TIRE

Segment; Incl. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

NSS

NOT SOLD SEPARAT

Washer

1шт.

NSS

NOT SOLD SEPARAT

Wheel Assy, 10 x 16.5; Left Hand; Incl. 1, 2

2шт.

1

138685A1

RIM

WHEEL 10 x 16.5 in; Left Hand; Not Illustrated

1шт.

2

346263A1

TYRE/TIRE

Segment; Incl. 3, 4

1шт.

346587A1

TYRE/TIRE

Assy, 7.5 x 15 in; Incl. Right And Left Hand Wheel Assy As Follows

1шт.

NSS

NOT SOLD SEPARAT

Wheel Assy, 7.5 x 15; Right Hand; Incl. 1, 2

2шт.

1

137236A1

RIM

WHEEL Right Hand

2шт.

2

346260A1

TYRE/TIRE

Segment; Incl. 3, 4

1шт.

NSS

NOT SOLD SEPARAT

Wheel Assy, 7.5 x 15; Left Hand; Incl. 1, 2

2шт.

1

138693A1

WHEEL

Left Hand

2шт.

2

346260A1

TYRE/TIRE

Segment; Incl. 3, 4

1шт.
