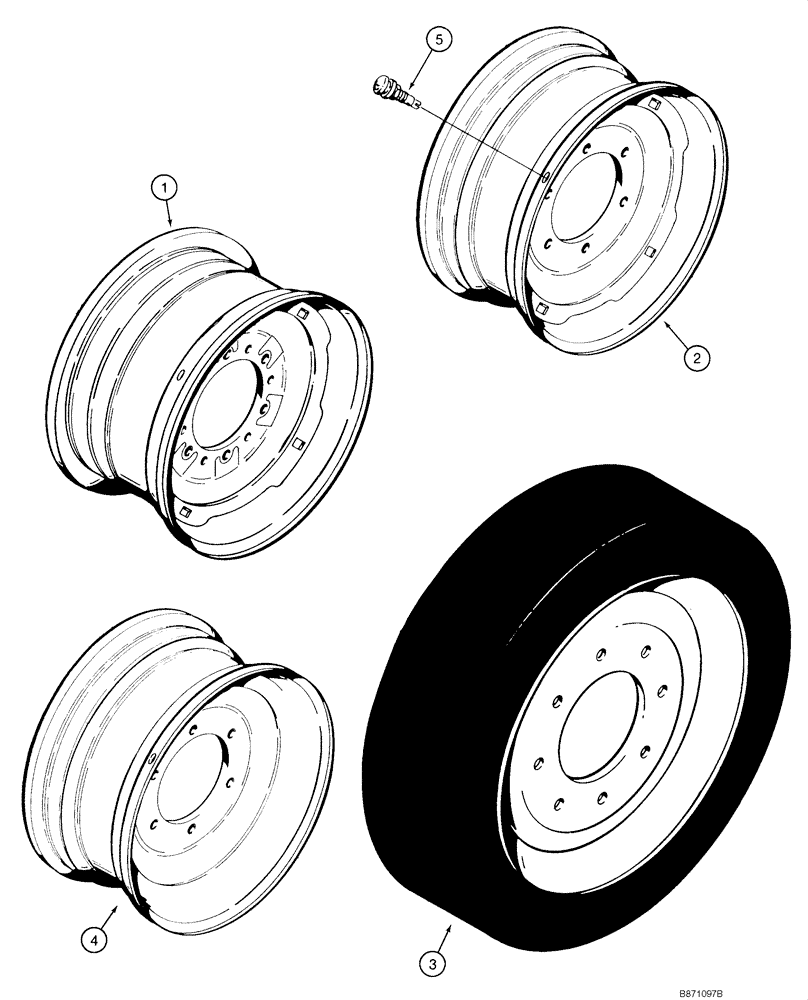

Запчасти Case 1840 (06-10) - WHEELS - TIRES, (NORTH AMERICA) (06) - POWER TRAIN

1

T40663

WHEEL

7 x 15 in; Stamped Steel; If Used

4шт.

2

H436532

WHEEL ASSY.

10 x 16.6 in; Flotation; If Used; No Longer Available, For Service, Order REF 4

4шт.

3

REF

INSTRUCTION

Wheel; With Solid Rubber Tire; Order From Machinery Item List; If Used

4шт.

4

H438705

WHEEL

7 x 15 in; Full Plate Center; If Used

4шт.

4

246885A1

RIM

WHEEL 9.75 x 16.5 in; Full Plate Center; If Used

4шт.

4

H438566

RIM

WHEEL 8.25 x 16.5 in; Full Plate Center; No Longer Available, Order 419712A1

4шт.

4

419712A1

RIM

WHEEL

4шт.

5

T57461

VALVE STEM

Used With REF 2; If Used

4шт.

6

REF

INSTRUCTION

Tube, 15 in; Used with H438705, REF 4; Not Illustrated; Purchase Locally

1шт.

7

REF

INSTRUCTION

Tire, 7 x 15 in; Nylon; Not Illustrated; Purchase Locally

4шт.

8

REF

INSTRUCTION

Tire, 7 x 15 in; Steel Cap; Not Illustrated; Purchase Locally

4шт.

9

REF

INSTRUCTION

Tire, 10 x 16.5 in; Flotation; Not Illustrated; Purchase Locally

4шт.
