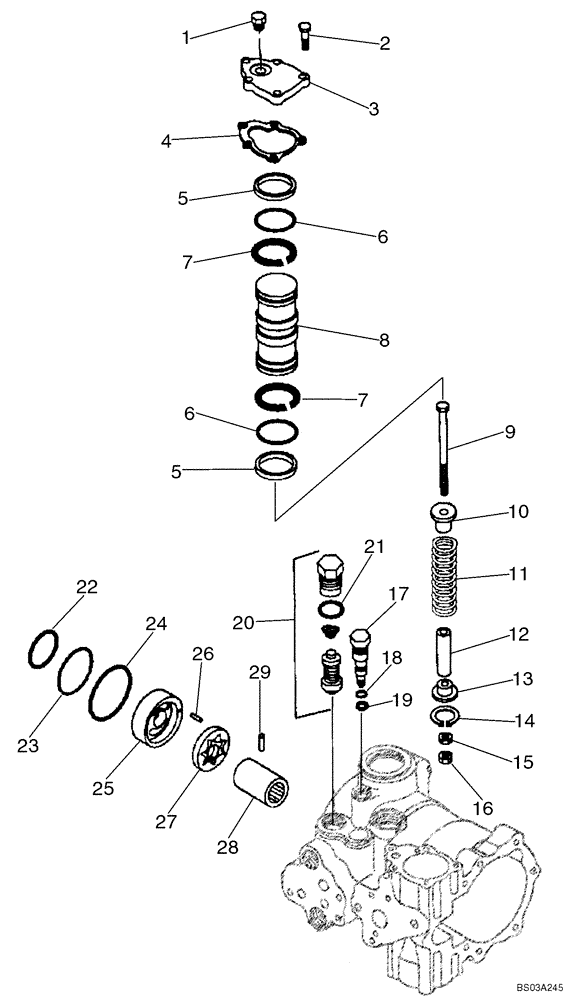

Запчасти Case 1840 (06-09B) - TANDEM PUMP ASSEMBLY, JAF0343519 - (06) - POWER TRAIN

388795A1

PUMP,45.88 CC

Tandem; See Figure 06-13; Incl. 06-09 - 06-09D; JAF0343519 -

1шт.

1

76349

PLUG,9/16" - 18 ORB

1шт.

2

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

2шт.

3

H436053

COVER

Servo

1шт.

4

N14063

GASKET

Servo Cover

2шт.

H673773

KIT

Incl. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Piston Ring

4шт.

6

NSS

NOT SOLD SEPARAT

O-ring

4шт.

140008A1

GASKET KIT

Incl. 5, 6, 7, 21

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing

4шт.

8

H435772

PISTON

Servo

1шт.

9

370531A1

SCREW

1шт.

10

N14666

GUIDE,1.292" OD

Spring

1шт.

11

N13226

SPRING

Servo

1шт.

12

N13242

SLEEVE

Servo

1шт.

13

N13241

GUIDE,1.292" OD

Spring

1шт.

14

N13255

RING

1шт.

15

425-116

NUT,3/8" - 24, Gr 5

1шт.

16

324604A1

NUT,Lock

1шт.

17

H436008

BY-PASS VALVE

1шт.

18

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

19

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

20

H436258

VALVE, PRESSURE RELI

EF Component Parts Not Serviced Separately

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

1шт.

23

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

1шт.

24

H437190

O-RING

1шт.

25

N13999

PLATE,3.9985" OD x 1.58" ID

Gerotor Cover

1шт.

26

181680A1

PIN,3/16" OD x 13/16" L

1шт.

27

N13247

GEAR-SET

Rotor Assy

1шт.

28

N13234

COUPLING, BREAK AWAY

1шт.

29

N13262

PIN

1шт.
