Запчасти Case 1840 (06-08E) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, JAF0119226 - JAF0343518 (06) - POWER TRAIN

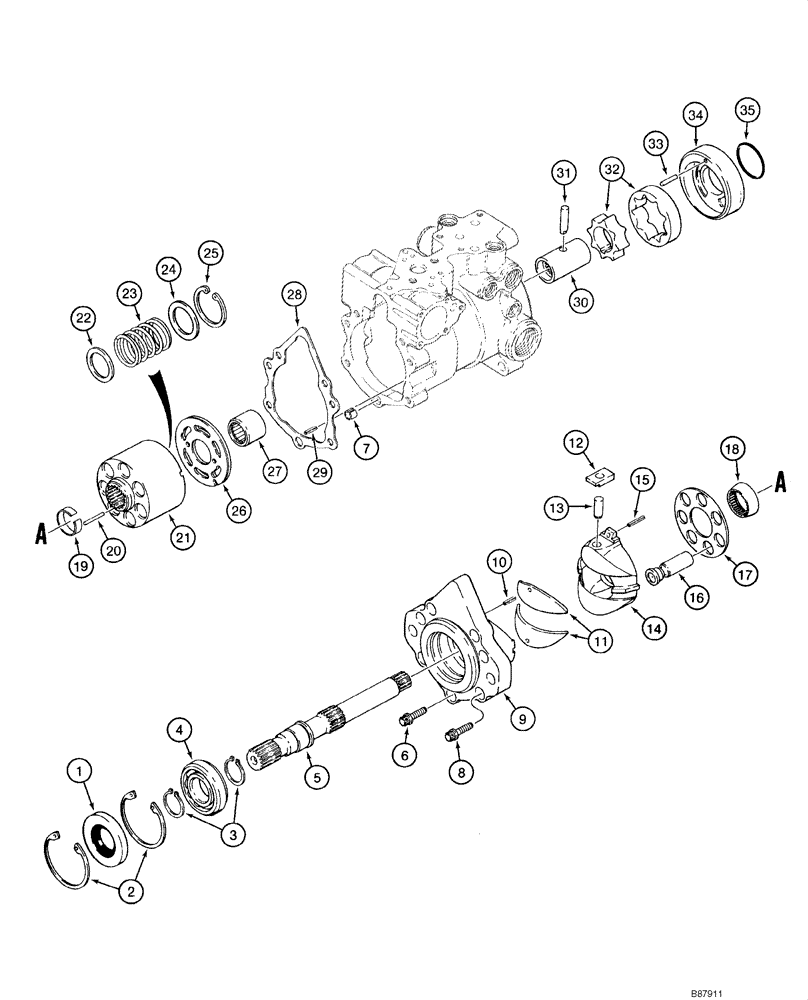

Схема запчастей Case 1840 - (06-08E) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, JAF0119226 - JAF0343518 (06) - POWER TRAIN
28
19
21
33
24
17
5
11
13
4
32
7
20
26
27
12
10
8
14
2
18
25
23
15
29
16
3
6
1
35
34
30
31
9
22

Артикул

Название

Примечание

Количество

127931A2

PUMP

Tandem; Incl. 1 - 35; JAF0119226 - JAF0343518; Also Incl. Figure 06-08 - 06-08E; Replaces 127931A1; No Longer Available, Order 388795A1, See Figure 06-09 - 06-09D

1шт.

1

N14103

SEAL

Shaft

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Brg and seal

2шт.

3

100-11137

SNAP RING,#137, Ext

Shaft, bearing

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

Rear Cover; Replaces N13193

1шт.

5

N13244

SHAFT

Rear; Tandem Pump

1шт.

6

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8

6шт.

7

N13994

SPACER

Cover Locating

1шт.

8

223677A1

SCREW,Torx, 7/16"

3/8 NC x 1-1/8 in; Replaces N14479

1шт.

9

N13991

COVER

Rear; Uses 3/8 in Bolt, 27279R1, REF 6; If Used

1шт.

9

H436703

COVER

Rear; Uses 7/16 in Bolt, 223677A1, REF 6; If Used

1шт.

10

138-51

LOCK PIN,1/8" x 3/8", Slotted

2шт.

11

N14472

BEARING

2шт.

12

N13224

SLEEVE

1шт.

13

N13254

PIN

Swash Plate

1шт.

14

178632A1

COVER

Incl. 13, 15

1шт.

15

38-11612

LOCK PIN,1/4" x 3/4", Slotted

replaces 138-130 1/4" x 3/4", Slotted

1шт.

115952A2

CYLINDER BLOCK

Block Assy; Incl. 16 - 25; Replaces 4902/10015, 115952A1

1шт.

16

NSS

NOT SOLD SEPARAT

Piston; Cylinder Block

7шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

115942A1

GUIDE

Retainer; Replaces 4902/10008 guide

1шт.

19

115943A1

SNAP RING

Retainer; Replaces 4902/10009

1шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

Retaining, Serial Range: guide-shaft

3шт.

21

115944A2

CYLINDER BLOCK

1шт.

22

115946A1

WASHER

Spring; Outer; Replaces 4902/10012

1шт.

23

115948A1

SPRING

Cylinder Block; Replaces 4902/10013

1шт.

24

115950A1

WASHER

Spring; Inner; Replaces 4902/10014

1шт.

25

NSS

NOT SOLD SEPARAT

Ring; Spring

1шт.

26

128928A1

LARGE PLATE

PLATE, LARGE Right Hand Inner; Cylinder Block; Counter Clockwise Rotation

1шт.

27

1277297C1

NEEDLE BEARING

Needle Shaft; Replaces N13199

1шт.

28

N14064

GASKET

Pump Housing Cover; Used With N13991, REF 9; No Longer Available, Order H436704, REF 28

1шт.

28

H436704

GASKET,0.79mm Thk

Cover

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

30

N13234

COUPLING, BREAK AWAY

Pump Shaft

1шт.

31

N13262

PIN

Coupling

1шт.

32

N13247

GEAR-SET

Gerotor

1шт.

33

181680A1

PIN,3/16" OD x 13/16" L

3/16 x 13/16 in; Replaces N13995

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

Gerotor

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

Gerotor Cover

1шт.

140008A1

GASKET KIT

Complete Overhaul; Incl. Parts On Figure 06-08 - 06-08E

1шт.
