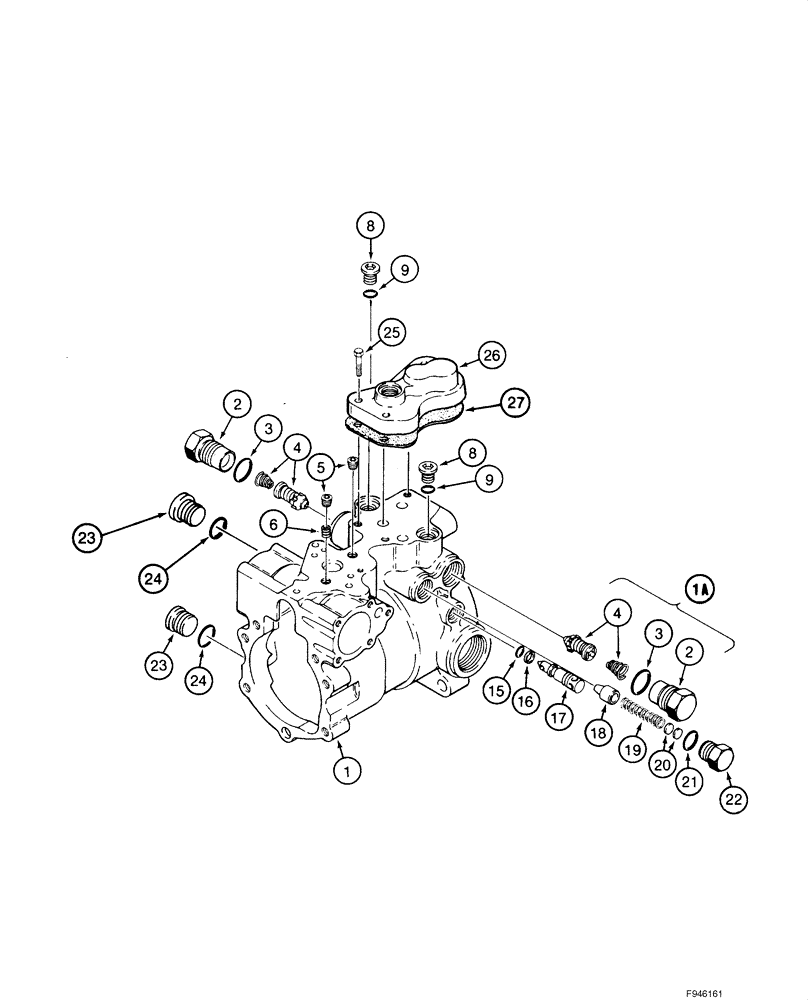

Запчасти Case 1840 (06-08C) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, JAF0119226 - JAF0343518 (06) - POWER TRAIN

127931A2

PUMP

Tandem; Incl. 1 - 27; JAF0119226 - JAF0343518; Also Incl. Figure 06-08 - 06-08E; Replaces 127931A1; No Longer Available, Order 388795A1, See Figure 06-09 - 06-09D

1шт.

1

NSS

NOT SOLD SEPARAT

Housing; Rear Drive Pump

1шт.

1a

H436258

VALVE, PRESSURE RELI

EF Incl. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Plug; Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Valve; Relief, Pump

1шт.

5

F23137

PLUG

2шт.

6

H436007

PLUG

0.062 inch

1шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl. 9

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Bypass valve

1шт.

16

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Bypass Valve

1шт.

17

H436008

BY-PASS VALVE

1шт.

18

V38371

VALVE

Relief Valve

1шт.

19

V38370

SPRING

Relief Valve

1шт.

20

H407767

KIT

Shim; Relief Valve

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

N13266

PLUG

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. 24

2шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

26

101462A1

ADAPTER

Filter

1шт.

27

101463A1

SEAL

1шт.

140008A1

GASKET KIT

Complete Overhaul; Incl. Parts On Figure 06-08 - 06-08E

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
