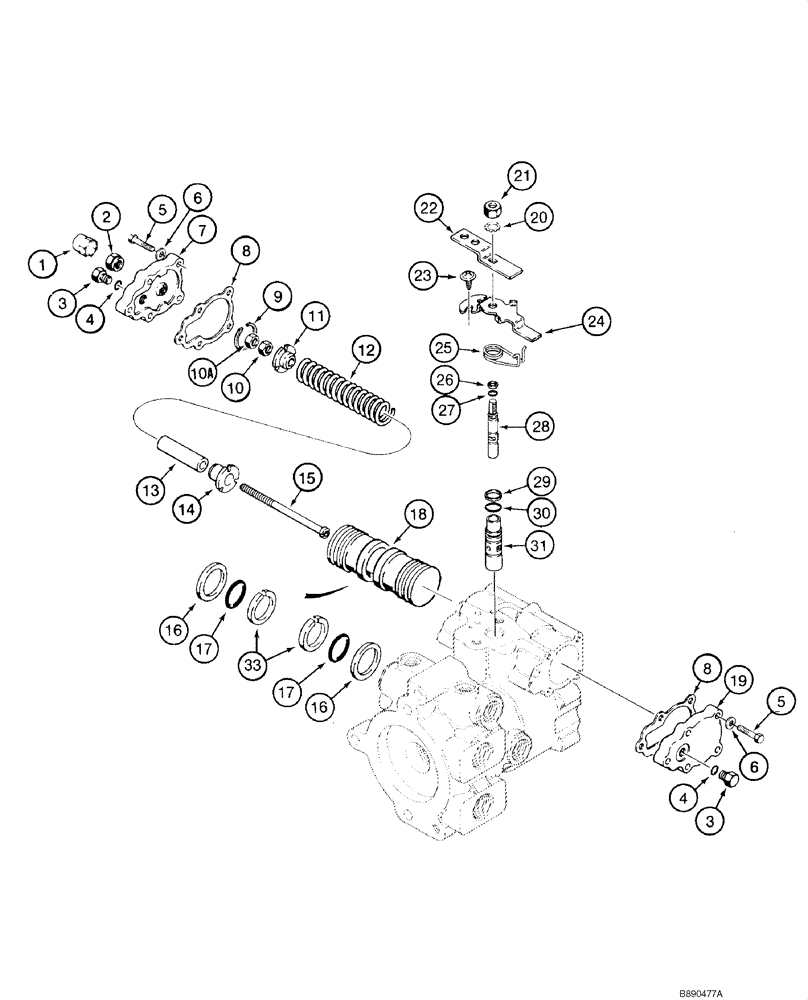

Запчасти Case 1840 (06-08B) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, JAF0119226 - JAF0343518 (06) - POWER TRAIN

127931A2

PUMP

Tandem; Incl. 1 - 33; JAF0119226 - JAF0343518; Also Incl. Figure 06-08 - 06-08E; Replaces 127931A1; No Longer Available, Order 388795A1, See Figure 06-09 - 06-09D

1шт.

1

N13249

CAP

Servo Adjusting Nut

1шт.

2

N13260

NUT,Inverted Lock

5/8 in; Adjusting

1шт.

3

9672438

PLUG,7/16" - 20 ORB

Servo Cover; Incl. 4

2шт.

5

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 NC x 1-1/4 in; 8

10шт.

6

A23082

SPRING

Replaces A22350

10шт.

7

H436053

COVER

Servo

1шт.

8

N14063

GASKET

Servo Cover

2шт.

9

N13255

RING

Retaining; Servo

1шт.

10

425-116

NUT,3/8" - 24, Gr 5

Inner

1шт.

10a

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

N14666

GUIDE,1.292" OD

Spring; Outer

1шт.

12

N13226

SPRING

Servo

1шт.

13

N13242

SLEEVE

Servo

1шт.

14

N13241

GUIDE,1.292" OD

Spring; Inner

1шт.

15

N13267

SCREW

Servo;

1шт.

H673773

KIT

Ring; Incl. 16, 17

1шт.

16

N14668

RING, PISTON

Servo; No Longer Available, Order H673773

2шт.

17

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

18

H435772

PISTON

Servo

1шт.

19

H436065

COVER

Servo

1шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

21

H436054

SPECIAL NUT,Lock, 5/16" - 18

Incl. Lock Washer

1шт.

22

N13251

HANDLE

Control

1шт.

23

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

24

N13250

BRACKET

Neutral

1шт.

25

N13248

SPRING,3/4" OD

Neutral

1шт.

26

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Control Spool

1шт.

27

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Control Spool (Replaces N8539)

1шт.

28

H435769

SPOOL

Control; Rotary

1шт.

29

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Control Sleeve

1шт.

30

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

31

110671A1

SLEEVE

Control Spool; Gold

1шт.

33

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

Servo Piston; Use With 127931A1 Pump

2шт.

33

193488A1

BEARING LINER

Use With 127931A2 Pump

2шт.

140008A1

GASKET KIT

Complete Overhaul; Incl. Parts On Figure 06-08 - 06-08E

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
