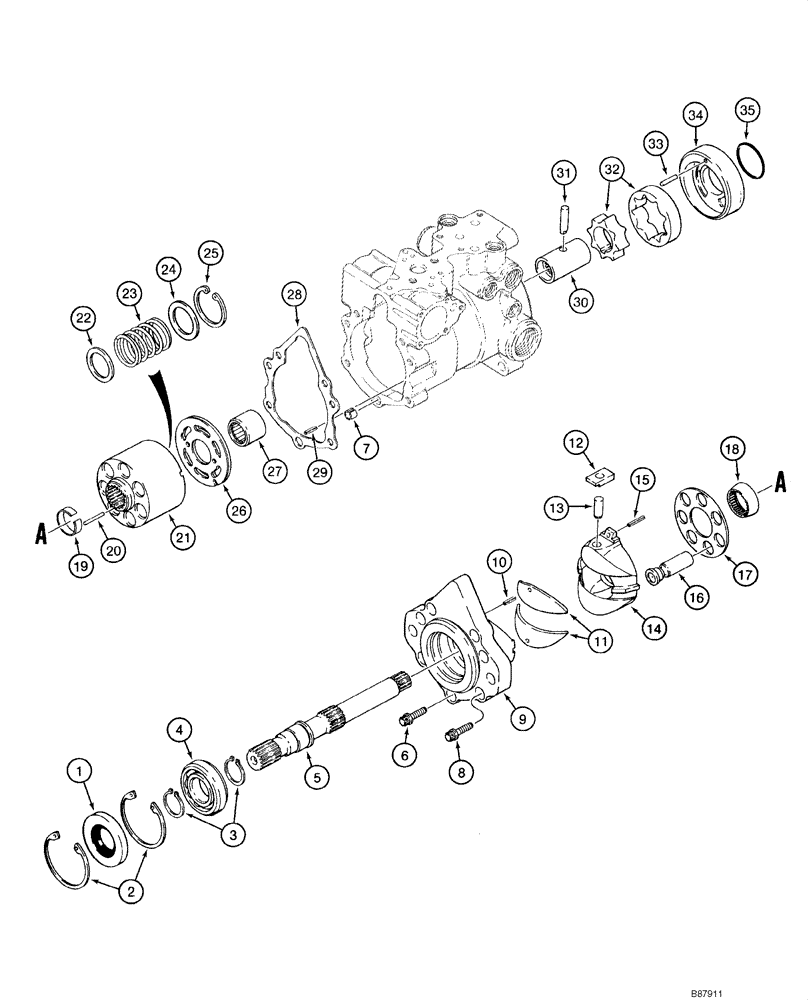

Запчасти Case 1840 (06-07E) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, - JAF0119226 (06) - POWER TRAIN

H673333

PUMP

Tandem; Incl. 1 - 35; - JAF0119226; Also Incl. Figure 06-07 - 06-07E; No Longer Available, Order 388795A1; See Figure 06-09 - 06-09D

1шт.

1

N14103

SEAL

Shaft

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Brg and seal

2шт.

3

100-11137

SNAP RING,#137, Ext

Shaft, bearing

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

Rear Cover; Replaces N13193

1шт.

5

N13244

SHAFT

Rear; Tandem Pump

1шт.

6

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

6шт.

6

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

Gr 8

6шт.

7

N13994

SPACER

Cover Locating

1шт.

8

N14479

12 PT SCREW

12 point 3/8 NC x 1-1/8 in

1шт.

9

N13991

COVER

Rear; Uses 3/8 in Bolt, 27279R1, REF 6; If Used

1шт.

9

H436703

COVER

Rear; Uses 7/16 in Bolt, 80-1716, REF 6; If Used

1шт.

10

138-51

LOCK PIN,1/8" x 3/8", Slotted

2шт.

11

N14472

BEARING

2шт.

12

N13224

SLEEVE

1шт.

13

N13254

PIN

Swash Plate

1шт.

14

178632A1

COVER

Incl. 13, 15

1шт.

15

138-130

LOCK PIN,1/4" x 3/4", Slotted

1шт.

115952A1

SET

Block Assy; Replaces 4902/10015; Incl. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

Piston; Cylinder Block

7шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

115942A1

GUIDE

Retainer; Replaces 4902/10008 guide

1шт.

19

115943A1

SNAP RING

Replaces 4902/10009

1шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

Retaining, Serial Range: guide-shaft

3шт.

21

115944A1

CYLINDER BLOCK

Replaces 4902/10011

1шт.

22

115946A1

WASHER

Spring; Outer; Replaces 4902/10012

1шт.

23

115948A1

SPRING

Cylinder Block; Replaces 4902/10013

1шт.

24

115950A1

WASHER

Spring; Inner; Replaces 4902/10014

1шт.

25

NSS

NOT SOLD SEPARAT

Ring; Spring

1шт.

26

128928A1

LARGE PLATE

PLATE, LARGE Right Hand Inner; Cylinder Block; Replaces N14467; Counter Clockwise Rotation

1шт.

27

1277297C1

NEEDLE BEARING

Needle Shaft; Replaces N13199

1шт.

28

N14064

GASKET

Pump Housing Cover; Used With N13991, REF 9; No Longer Available, Order H436704, REF 28

1шт.

28

H436704

GASKET,0.79mm Thk

Cover

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

30

N13234

COUPLING, BREAK AWAY

Pump Shaft

1шт.

31

N13262

PIN

Coupling

1шт.

32

N13247

GEAR-SET

Gerotor

1шт.

33

N13995

PIN

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

Gerotor

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

Gerotor Cover

1шт.
