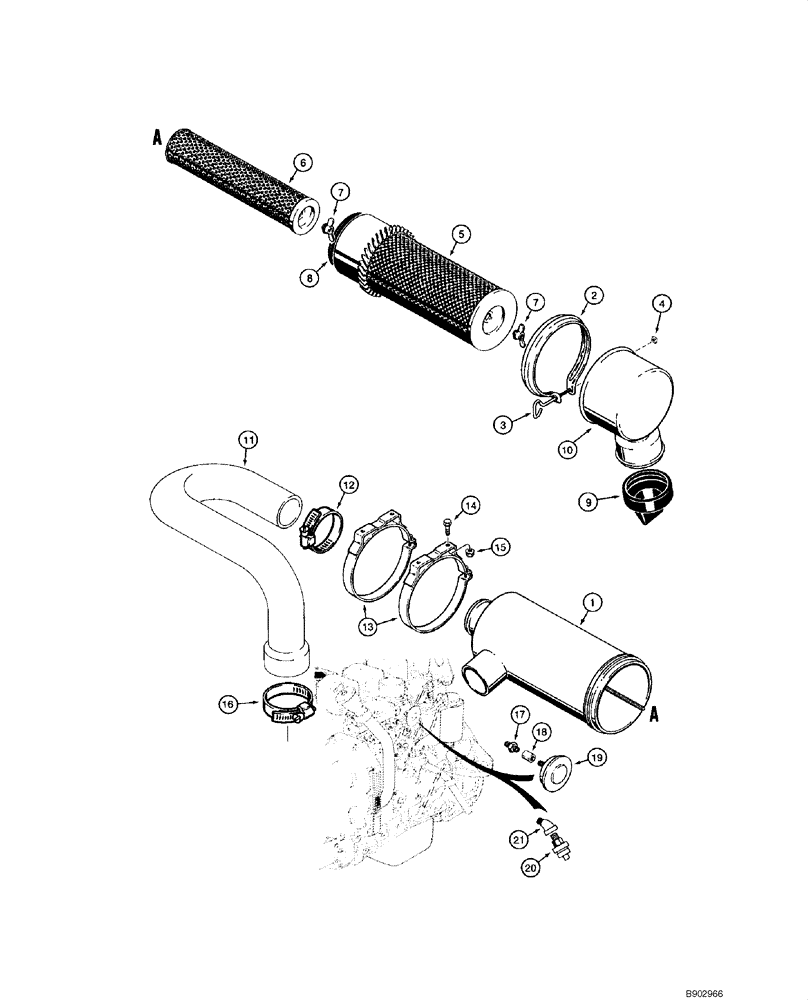

Запчасти Case 1840 (02-03) - AIR CLEANER - MOUNTING PARTS (02) - ENGINE

A189348

AIR CLEANER

Incl. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Body; Air Cleaner

1шт.

F84999

CLAMP,168.28mm

Air Cleaner; Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Clamp; Cap Retaining

1шт.

3

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

1шт.

4

224-2205

SQUARE NUT,Sq, 5/16"-24

1шт.

5

A173290

AIR FILTER

Primary; Outer

1шт.

6

A173291

AIR FILTER

Secondary; Inner

1шт.

7

D78354

WING NUT

Incl. Washer

2шт.

8

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

Air Cleaner Element

1шт.

9

S113982

CAP

If Used

1шт.

9

A189052

DUST VALVE

2 inch (51 mm); If Used

1шт.

10

A184598

COVER

Cap; Air Cleaner

1шт.

11

D128303

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

Air Cleaner

1шт.

12

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2-13/16 - 3-3/4 in; Air Cleaner Hose To Air Cleaner

1шт.

13

L113910

CLAMP

Air Cleaner Mounting; Incl. Hardware

2шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in; Air Cleaner Hose To Engine

1шт.

17

D36264

FITTING

Air Filter Restriction Indicator; Used With REF 19

1шт.

18

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

19

L103131

INDICATOR

Air Filter Restriction Indicator; No Longer Available, For Service, Order REF 20

1шт.

20

1983233C1

RESTRICTION SWITCH

Restriction Switch; Air Cleaner; Models Without Emissions Certified Engine; No Longer Available, Order 292950A1

1шт.

20

292950A1

SWITCH

Models Without Emissions Certified Engine

1шт.

20

293797A1

RESTRICTION SWITCH

Air Cleaner; Not Illustrated; Models with Emissions Certified Engine

1шт.

21

221-1401

ELBOW,45º, 1/8"-27, NPT

45, 1/8 inch PT; Used With REF 20, 1983233C1; If Used

1шт.
