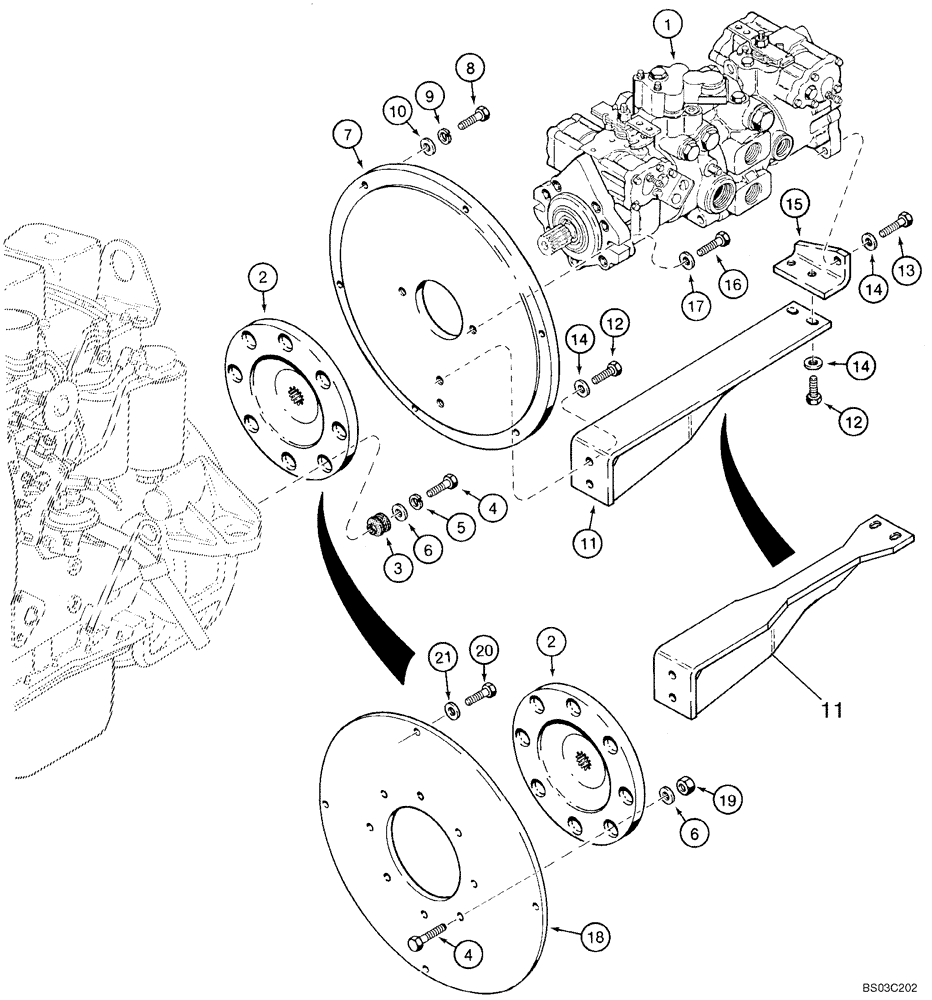

Запчасти Case 1840 (06-06) - TANDEM PUMP MOUNTING (06) - POWER TRAIN

1

H673333

PUMP

Tandem; See Figure 06-07 - 06-07E; - JAF0119226; No Longer Available, Order 127931A2

1шт.

1

127931A2

PUMP

Tandem; See Figure 06-08 - 06-08E; Replaces 127931A1; No Longer Available, Order 388795A1

1шт.

388795A1

PUMP,45.88 CC

Tandem; Incl. 06-09 - 06-09D; JAF0119226 -

1шт.

2

H436270

SPLINED COUPLING,19T, Drive, 8 Hole

Tandem Pump, Drive Coupler

1шт.

3

278365A1

BUSHING,11.5mm ID x 31.75mm OD x 26.9mm L

Pump Cooler; Replaces H373878

8шт.

4

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

5

492-11044

LOCK WASHER,7/16"

If used

8шт.

6

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

8шт.

7

H435905

PLATE

Pump Mounting; Cast Plate

1шт.

7

H437664

LARGE PLATE

PLATE, LARGE Pump Mounting; Machined Steel Plate; Replaces H435905

1шт.

8

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Use with Machined Steel Plate, Ref 7

6шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Used with cast plate, Ref 7

6шт.

9

892-11010

LOCK WASHER,M10

6шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

11

H673391

BRACKET

Tandem Pump Mounting; No Longer Used, Order 140801A1

1шт.

11

140801A1

SUPPORT

Tandem Pump Mounting; Replaces H673391

1шт.

12

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

13

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

5шт.

15

H435965

ANGLE

Tandem Pump Mounting

1шт.

16

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

18

H438922

LARGE PLATE

PLATE, LARGE No Longer Available, Order 404801A1

1шт.

18

404801A1

LARGE PLATE

PLATE, LARGE Adapter; Flywheel To Coupler; Replaces H438922

1шт.

19

230-4217

LOCK NUT,7/16"-14, GA

7/16 in; If Used

8шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

If used

4шт.

433548A1

KIT

Mouting Plate Reinforcement; Incl. 22 - 24; Incl. Instructions; Not Illustrated; If Used

1шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

6шт.

23

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

6шт.

24

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.
