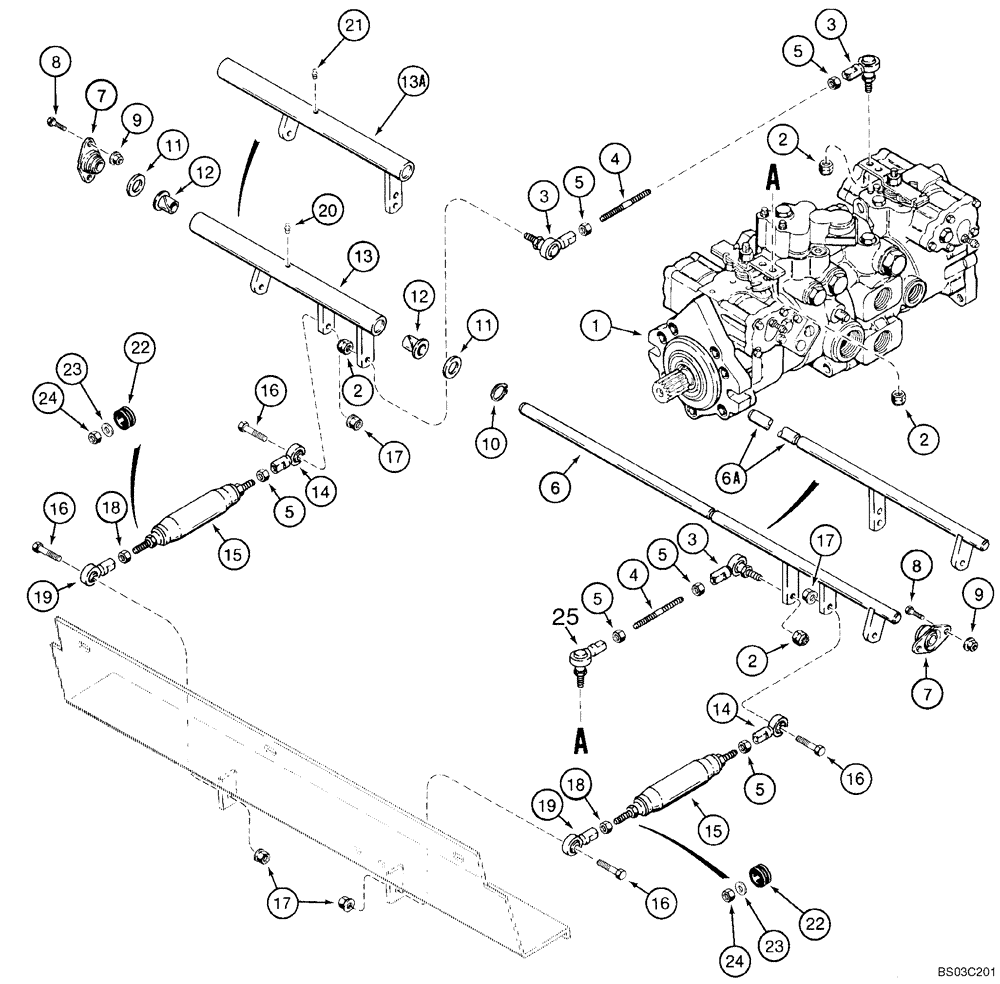

Запчасти Case 1840 (06-05) - TANDEM PUMP LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
H673333
PUMP
Tandem; See Figure 06-07 - 06-07E; - JAF0119226; No Longer Available, Order 127931A1
1шт.
1
127931A2
PUMP
Tandem; See Figure 06-07 - 06-07E; JAF0119226 - ; Replaces 127931A1; No Longer Available, Order 388795A1
1шт.
1
388795A1
PUMP,45.88 CC
See Figure 06-09 - 06-09D
1шт.
2
231-2446
NUT,3/8"-24, GB
3/8 in
4шт.
3
230425A1
BALL JOINT,3/8" - 24 x 1-3/5"
3/8 in; Replaces R47940
2шт.
4
H435922
ROD
Control
2шт.
5
425-116
NUT,3/8" - 24, Gr 5
6шт.
6
H673315
SHAFT ASSY.
Cross; Pump Control; Use REF 13 Only
1шт.
6a
H674402
SHAFT
Cross; With Two Lugs; Pump Control; Use With REF 13A Only
1шт.
7
D139039
BEARING ASSY,19mm ID
Cross Shaft Mounting
2шт.
8
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
10
103-1475
SNAP RING,#75, Ext
Cross shaft to bellcrank
1шт.
11
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
2шт.
12
72323
BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L
If Used
2шт.
13
H673316
CRANK
Cross Shaft; With Three Lugs; Use With REF 6
1шт.
13a
H674644
CRANK
Cross Shaft; With Two Lugs; Use With REF 6A; Also Order 72323, REF 12
1шт.
14
A32398
BALL JOINT
3/8 in; Female
2шт.
15
D66538
SHOCK ABSORBER
Pump Controls
2шт.
16
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- JAF006758
4шт.
17
231-5146
FLANGE NUT,3/8"-16
JAF006758 -
4шт.
18
425-116
NUT,3/8" - 24, Gr 5
- JAF006758
2шт.
19
A32398
BALL JOINT
3/8 in; Female; - JAF006758
2шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
Use with Ref 6A
1шт.
21
219-86
LUBE NIPPLE,1/8" NPTF
Use With Ref 6A
1шт.
22
248-2198
GROMMET,3/8" ID x 5/8" Groove Dia
5/8 in; JAF006758 -
2шт.
23
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16"), JAF006758 -
4шт.
24
231-2446
NUT,3/8"-24, GB
3/8 in; JAF006758 -
2шт.
25
313593A1
BALL JOINT
Isolator; European Models, Replaces R47940
2шт.
25
230425A1
BALL JOINT,3/8" - 24 x 1-3/5"
Isolator; North American Models, Replaces R47940
2шт.
Выбрано товаров: 30
