Запчасти Case 1840 (06-02) - PUMP CONTROLS, FORWARD AND REVERSE - LINKAGE (EUROPE, - JAF0098065) (06) - POWER TRAIN

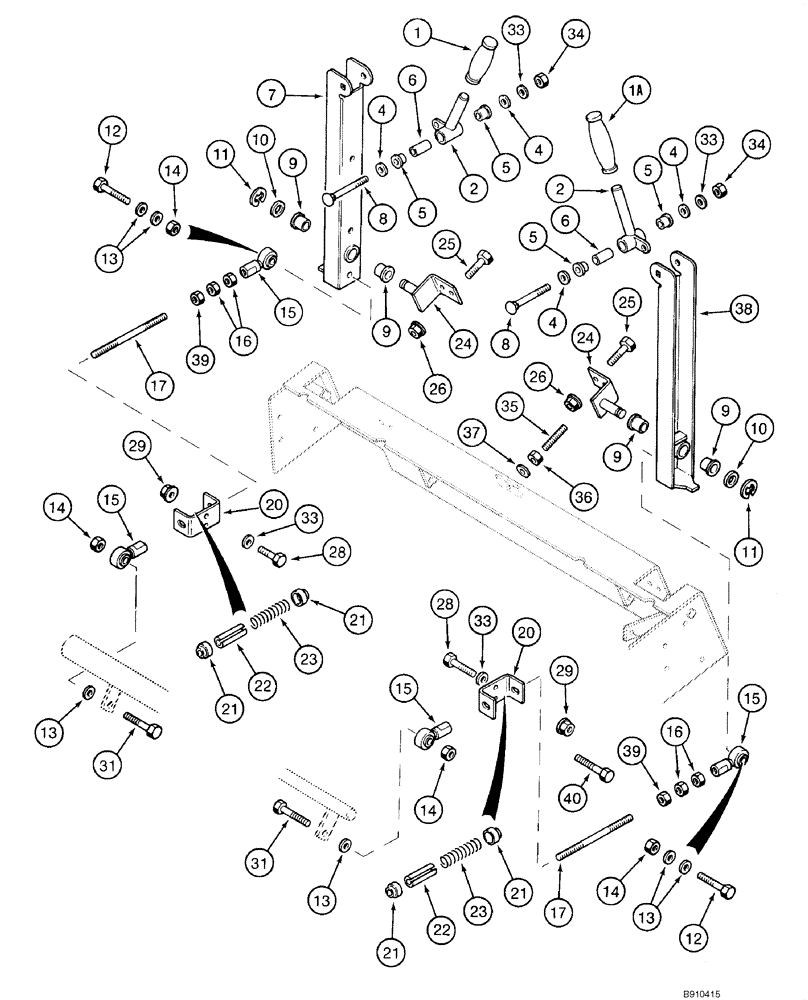

Схема запчастей Case 1840 - (06-02) - PUMP CONTROLS, FORWARD AND REVERSE - LINKAGE (EUROPE, - JAF0098065) (06) - POWER TRAIN
24
9
28
5
6
12
40
39
15
5
26
26
33
5
4
38
21
22
1
17
23
14
20
25
34
11
2
29
31
33
20
13
15
1a
35
36
34
6
21
13
16
14
9
29
14
15
23
10
24
4
8
14
4
15
22
16
12
13
25
9
2
33
4
7
17
33
8
31
5
13
37
39
21
21
28
9
10
11

Артикул

Название

Примечание

Количество

1

E99358

HANDLE

Control Lever; Left Hand

1шт.

1a

E99359

HANDLE

Control Lever; Right Hand

1шт.

2

D133283

LEVER

Pump; Control

2шт.

4

D128964

WASHER

If Used

4шт.

5

E20959

BUSHING

Control Lever

4шт.

6

H435707

SPACER,11.66mm ID x 15.88mm OD x 53mm L

Control Lever

2шт.

7

H673190

ARM

Control Lever; Left Hand

1шт.

8

711-8070

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 70mm, Cl 8.8

8 - 1.25 x 70 mm; No Longer Available, Order 411-544, 234-10431

2шт.

9

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

4шт.

10

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

11

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

14

232-4116

NUT,3/8"-16, GC

4шт.

15

A32398

BALL JOINT

3/8 in; Female

4шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

17

H435920

ROD

Control; Pump Cross Shaft

2шт.

20

D127561

BRACKET

Spring Retaining

2шт.

21

D63156

SPRING CUP

4шт.

22

D127563

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

23

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

Rod

2шт.

24

D128237

PIVOT

Control Lever Arm; With Shaft

2шт.

25

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

33

H426775

WASHER

4шт.

34

30674R1

CROWN NUT,Crown, M8, Cl6

8 - 1.25 mm

2шт.

35

481-33832

SET SCREW,3/8"-16 x 2", Slotted

3/8 NC x 2 in

4шт.

36

425-146

JAM NUT,3/8" - 16, Gr 5

8шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

38

H673191

ARM

Control Lever; Right Hand

1шт.

39

425-116

NUT,3/8" - 24, Gr 5

2шт.

40

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

1шт.

Выбрано товаров: 35
