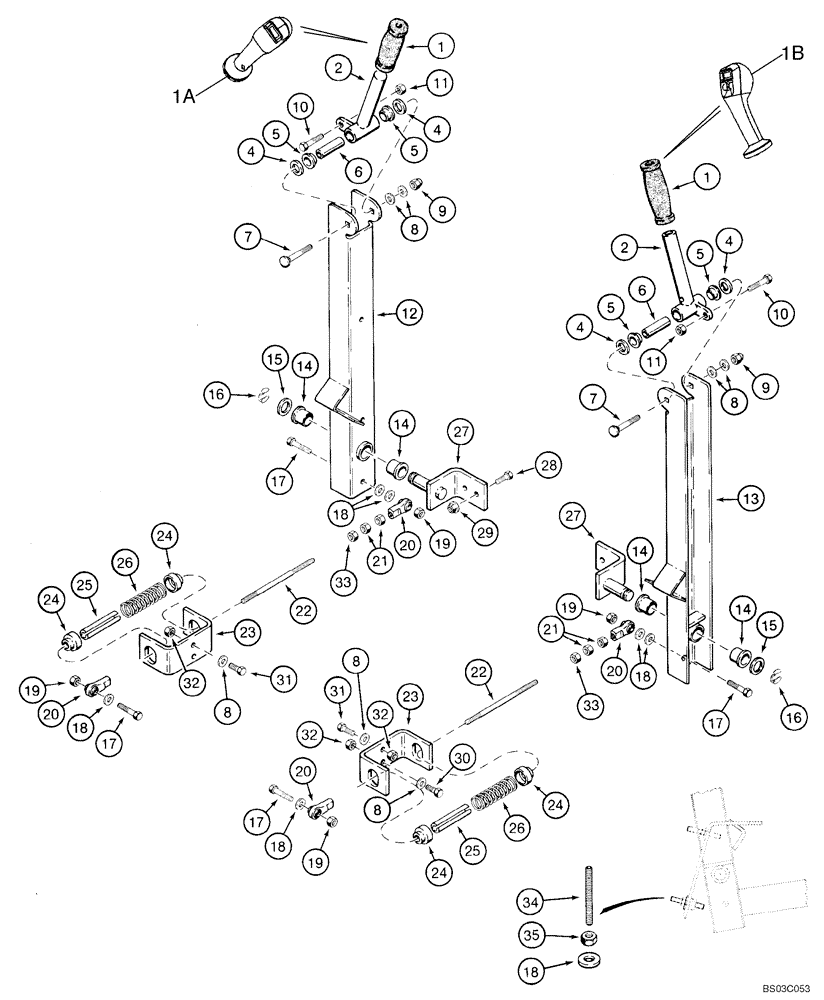

Запчасти Case 1840 (06-01) - PUMP CONTROLS, FORWARD AND REVERSE - LINKAGE (EUROPE, JAF0098065 - , NORTH AMERICA) (06) - POWER TRAIN

1

337855A1

LEVER

European Models; Control Lever; Not Illustrated; If Used; Replaces D128268, 347921A1

1-2шт.

1

D133282

HANDLE

North American Models; Control Lever; If Used

1шт.

1a

347922A1

HANDLE

Deluxe; Left Hand; High Flow; If Used

1шт.

357422A1

DECAL

High Flow; If Used; Place On Left Hand ROPS Post; Not Illustrated

1шт.

1b

347923A1

HANDLE

Deluxe; Right Hand; Turn Signal, Ride Control, Horn; If Used

1шт.

348707A1

DECAL

Turn Signal, Ride Control, Horn; If Used; Place On Right Hand ROPS Post

1шт.

2

347920A1

HANDLE

European Models; Not Illustrated; Replaces D128278

2шт.

2

D128278

LEVER

Control; Left Hand; Replaces H439164; For Optional High Flow Hydraulics; See Figure 04-23, REF 11

2шт.

4

D128964

WASHER

If Used

4шт.

5

D123758

FLANGED BEARING,15.9mm ID x 17.4mm OD x 9.46mm L

Control Lever; Replaces E20959

4шт.

6

H435707

SPACER,11.66mm ID x 15.88mm OD x 53mm L

Control Lever

2шт.

7

411-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 2

Replaces H426775

2шт.

8

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

8шт.

9

234-10431

CROWN NUT,Crown, 5/16"-18

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

232-4116

NUT,3/8"-16, GC

2шт.

12

H673190

ARM

Control Lever; Left Hand

1шт.

13

H673191

ARM

Control Lever; Right Hand

1шт.

14

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

4шт.

15

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

16

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

10шт.

19

232-4116

NUT,3/8"-16, GC

4шт.

20

A32398

BALL JOINT

3/8 in; Female

4шт.

21

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

22

H435920

ROD

Control; Pump Cross Shaft

2шт.

23

D127561

BRACKET

Spring Retaining

2шт.

24

D63156

SPRING CUP

4шт.

25

D127563

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

26

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

Rod

2шт.

27

D128237

PIVOT

Control Lever Arm; With Shaft

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

33

425-116

NUT,3/8" - 24, Gr 5

2шт.

34

481-33832

SET SCREW,3/8"-16 x 2", Slotted

3/8 NC x 2 in

4шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Used With H673191; Not Illustrated

1шт.
