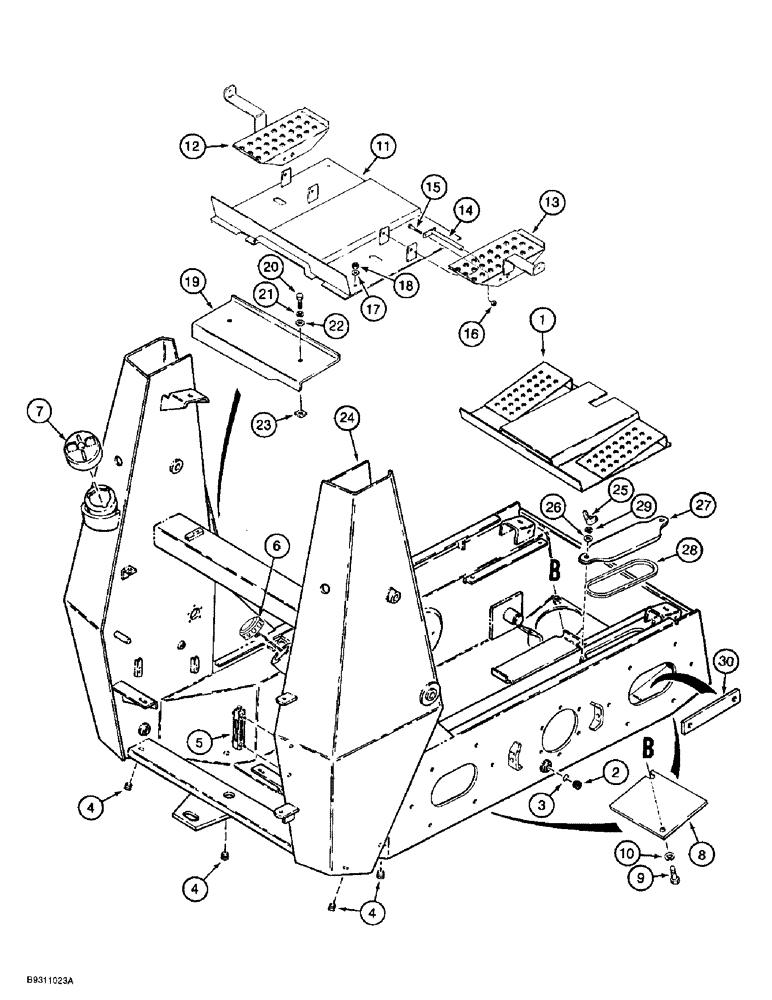

Запчасти Case 1838 (9-02) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

H674199

PLATE

floor, with raised center section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

If used, Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, If used

1шт.

4

591780

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG hex socket, 1 inch PT, Replaces: 221-1036

4шт.

5

H435669

GAUGE

sight, hydraulic oil

1шт.

6

H674463

PLUG

CAP with filter, hydraulic oil, no longer available, order 257448A1

1шт.

6

257448A1

CAP

with filter, hydraulic oil, Replaces: H674463

1шт.

7

D93757

CAP

fuel

1шт.

8

H436914

LARGE PLATE

PLATE cover, with one hole and one notch

4шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Replaces 413-820 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

11

H673774

SHEET

PLATE floor, used on models with foot controls only

1шт.

12

H673783

PEDAL

foot control, left hand

1шт.

13

H673772

PEDAL

foot control, right hand

1шт.

14

H673771

PIN,12.7mm OD x 140mm L

pedal mounting

2шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

16

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self locking, 1/4 inch NC

2шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

18

231-5146

FLANGE NUT,3/8"-16

2шт.

19

H673737

INSULATOR

PANEL noise

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

24

127452A1

FRAME

CHASSIS Uni-Loader, Includes Ref. 25-30

1шт.

25

129-410

WING NUT,3/8"-16

NUT wing, 3/8 inch NC

8шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

27

103264A1

COVER

chassis

4шт.

28

H438686

GASKET,323.4mm L

cover

4шт.

29

492-11038

LOCK WASHER,3/8"

8шт.

30

H438670

BAR

PLATE reinforcement, axle hub lower mounting bolt

4шт.

225036A1

SET OF PARTS

KIT front frame, not shown, Includes: installation instructions, Includes Ref. 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE bottom

1шт.

32

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

33

NSS

NOT SOLD SEPARAT

BOLT wheel

6шт.

225037A1

SET OF PARTS

KIT rear frame, not shown, Includes: installation instructions, Includes Ref. 34-35

1шт.

34

NSS

NOT SOLD SEPARAT

PLATE rear

1шт.

35

NSS

NOT SOLD SEPARAT

BOLT wheel

6шт.

FILLER NECK NOW 356774A1 REPLACES H436338 AND GUARD IS 356773A1 REPLACING H436337. THESE ARE WELDMENTS. ECN H992008. NAPO TECH 3/99.

1шт.
