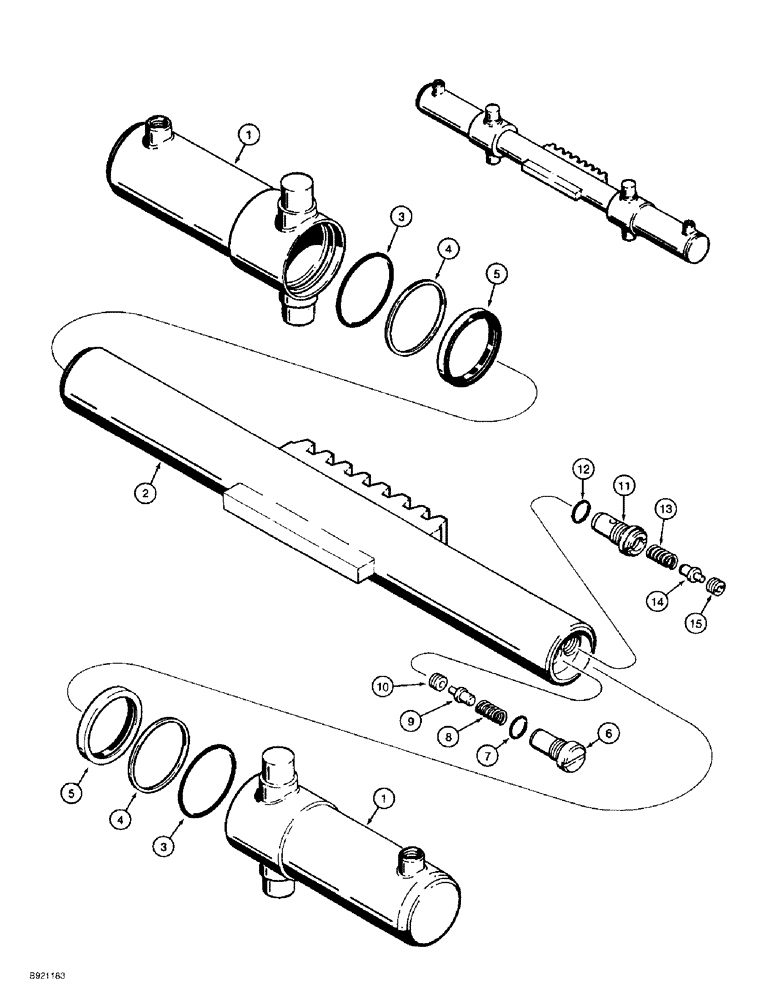

Запчасти Case 1838 (8-62) - SWING CYLINDER, D100 OR D100XR BACKHOE (08) - HYDRAULICS

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY, swing, 70 mm, 2-3/4 inch ID x 203 mm, 8 inch stroke, Includes Ref. 1-5, P/N H53033, H53025

1шт.

1

H392068

BARREL

TUBE swing cylinder

2шт.

2

H53017

PISTON ROD

ROD piston

1шт.

3

H743591

O-RING

tube seal

2шт.

Part of seal kit H53041

1шт.

4

H754606

WASHER

RING backup, O-ring

2шт.

Part of seal kit H53041

1шт.

5

H215202

SEAL ASSY.

SEAL dust, tube to piston rod

2шт.

Part of seal kit H53041

1шт.

H53033

LOCK VALVE

VALVE ASSEMBLY, relief, Includes Ref. 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

Part of seal kit H53041

1шт.

8

F37883

SPRING

relief valve

1шт.

9

H138362

SPOOL

POPPET relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

H53025

LOCK VALVE

VALVE ASSEMBLY, relief, Includes Ref. 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

Part of seal kit H53041

1шт.

13

F37883

SPRING

relief valve

1шт.

14

H138362

SPOOL

POPPET relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

H53041

SEAL ASSY.

KIT seal, cylinder repair, Includes: Ref. 3, 4, 5, 7, and 12, no longer available, order components separately

1шт.
