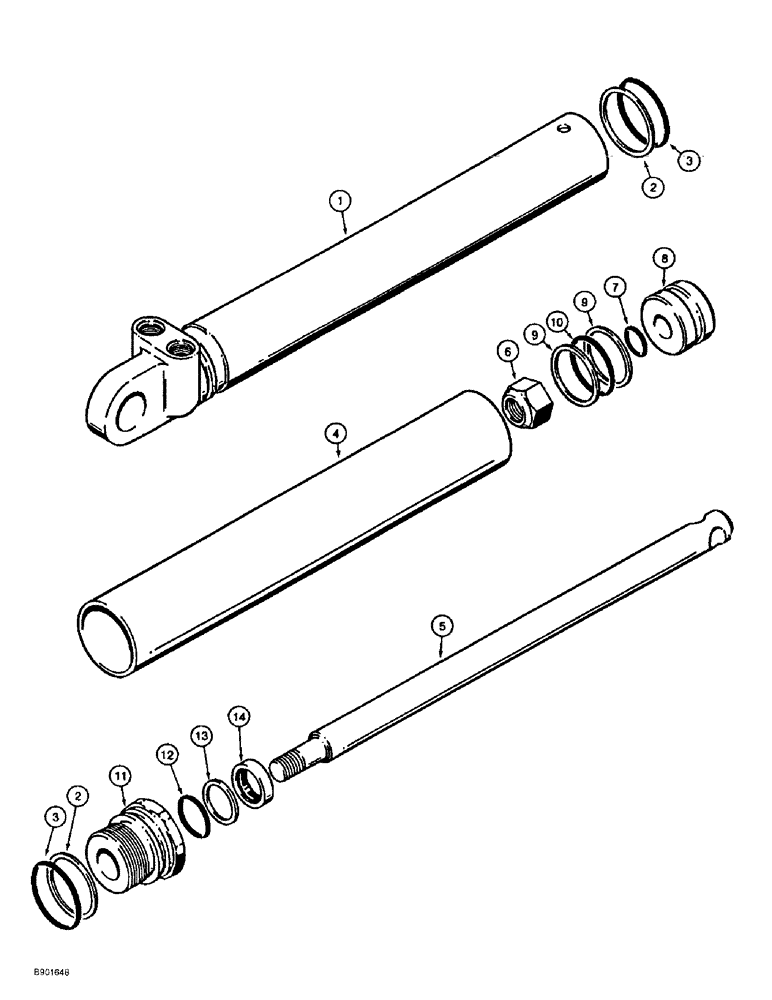

Запчасти Case 1838 (8-60) - STABILIZER CYLINDER, D100 OR D100XR BACKHOES WITH VERTICAL STABILIZER (08) - HYDRAULICS

H514117

CYLINDER BLOCK

CYLINDER ASSEMBLY, stabilizer, 51 mm, 2 inch ID x 305 mm, 12 inch stroke, Includes Ref. 1-14

2шт.

1

H52654

HYD CYL SLEEVE

TUBE cylinder, outer

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER backup, tube

2шт.

Part of seal kit H52704

1шт.

3

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

Part of seal kit H52704

1шт.

4

H52662

HYD CYL SLEEVE

TUBE cylinder, inner, inner

1шт.

5

H52688

ROD

piston

1шт.

6

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

NUT, LOCK, 5/8"-11, GA

1шт.

7

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

Part of seal kit H52704

1шт.

8

H52670

PISTON ASSY.

PISTON cylinder

1шт.

9

H754614

WASHER

RING backup, piston O-ring

2шт.

Part of seal kit H52704

1шт.

10

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

Part of seal kit H52704

1шт.

11

H52696

BEARING

GLAND cylinder end

1шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

Part of seal kit H52704

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of seal kit H52704

1шт.

14

H220475

WIPER SEAL

WIPER rod, Replaces: H746297

1шт.

H52704

KIT

seal, cylinder repair, Includes: Ref. 2, 3, 7, 9, 10, 12, and 13

1шт.
