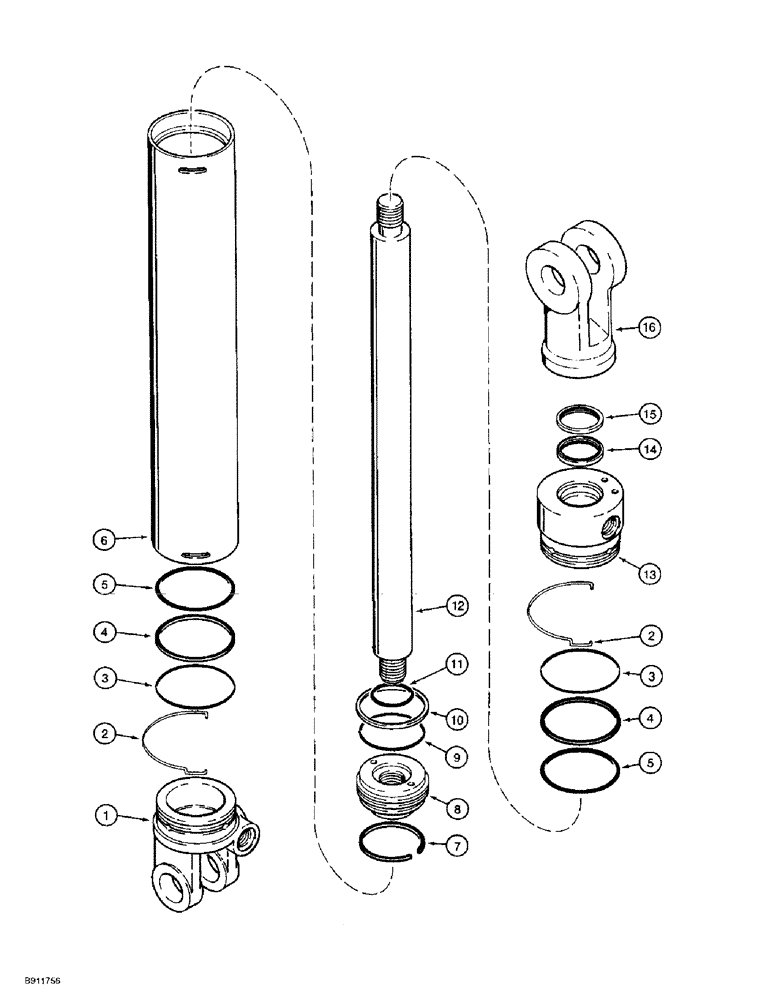

Запчасти Case 1838 (8-58) - STABILIZER CYLINDER, D100 OR D100XR BACKHOES WITH FOLD DOWN STABILIZER (08) - HYDRAULICS

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY, stabilizer, 76 mm, 3 inch ID x 406 mm, 16 inch stroke, Includes Ref. 1-16

2шт.

1

102681A1

JACK HEAD

HEAD cylinder, base end

1шт.

2

H436693

LOCKING RING

RING lock

2шт.

Part of cylinder seal repair kit 700710260

1шт.

3

H436690

SEAL

dust, cylinder tube

2шт.

Part of cylinder seal repair kit 700710260

1шт.

4

H745760

WASHER

RING backup

2шт.

Part of cylinder seal repair kit 700710260

1шт.

5

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

Part of cylinder seal repair kit 700710260

1шт.

6

102683A1

TUBE

cylinder

1шт.

7

H436691

GASKET

RING wear

1шт.

Part of cylinder seal repair kit 700710260

1шт.

8

102682A1

PISTON

cylinder

1шт.

9

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

Part of cylinder seal repair kit 700710260

1шт.

10

H120188

RING

backup, piston O-ring

1шт.

Part of cylinder seal repair kit 700710260

1шт.

11

T52486

O-RING

piston rod

1шт.

Part of cylinder seal repair kit 700710260

1шт.

12

H436686

PISTON ROD

ROD piston, Replaces: 102684A1 rod

1шт.

13

102686A1

GLAND

cylinder end

1шт.

14

H436694

SEAL

U-cup

1шт.

Part of cylinder seal repair kit 700710260

1шт.

15

H436692

SEAL

WIPER piston rod

1шт.

Part of cylinder seal repair kit 700710260

1шт.

16

102685A1

JACK HEAD

CLEVIS piston rod

1шт.

700710260

SEAL KIT

KIT cylinder seal repair, Includes: Ref. 2, 3, 4, 5, 7, 9, 10, 11, 14, and 15, Replaces: H673837 kit

1шт.
