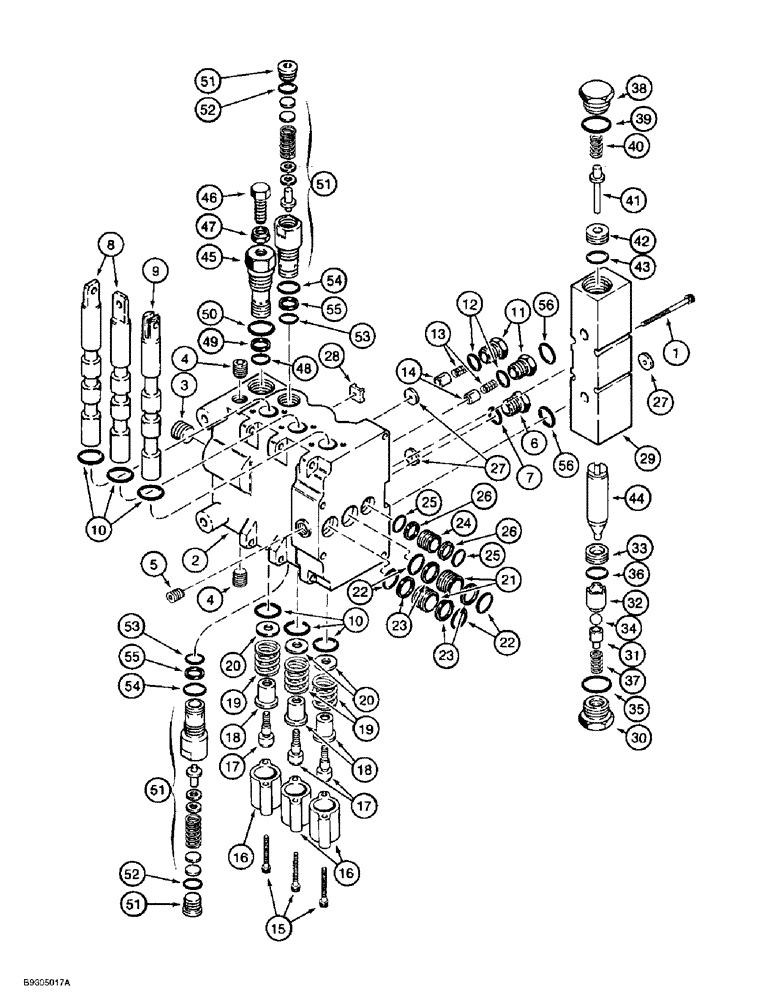

Запчасти Case 1838 (8-46) - BACKHOE CONTROL VALVE - DUKES, INLET SECTION, D100 OR D100XR BACKHOE (08) - HYDRAULICS

H674300

VALVE

ASSEMBLY, control, backhoe, parts list Figures 8-44 through 8-50, Includes Ref. 1, 21, 24, 27, 28 and P/N H674530, 100405A2, H674534, H674533 and 238-6113

1шт.

1

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

BOLT hex socket, No. 10 NF x 2-1/2 inch

4шт.

H674530

VALVE

SECTION ASSEMBLY, inlet, Includes Ref. 2, 3, 4, 5, 6, 8, 9, 10, and P/N H438024 and H438021

1шт.

2

NSS

NOT SOLD SEPARAT

BODY inlet section

1шт.

3

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket headless, 3/8 inch PT

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

hex socket headless, 1/4 inch PT

2шт.

5

H438960

PLUG

seal

1шт.

6

H438231

PLUG

load check, Includes Ref. 7

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL dual control

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL stabilizer

1шт.

10

H438030

O-RING

spool

6шт.

H438024

SET

KIT load check, Includes Ref. 11, 13, 14

2шт.

11

H438231

PLUG

load check, Includes Ref. 12

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

H438021

SET

KIT spring centering, Includes Ref. 15-20

3шт.

15

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT hex socket, No. 10 NF x 1-1/2 inch

2шт.

16

NSS

NOT SOLD SEPARAT

CAP end

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT shoulder, special

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.

19

N9539

TENSION SPRING

SPRING centering

1шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

21

H438028

TUBE

SLEEVE body, large, Includes Ref. 22-23

2шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup

2шт.

24

H438029

TUBE

SLEEVE body, small, Includes Ref. 25-26

1шт.

25

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

26

H438044

GASKET

RING backup

2шт.

27

H438039

LARGE PLATE

PLATE orifice, round, top and bottom port of swing section and bottom port of stabilizer section

3шт.

28

H438041

LARGE PLATE

PLATE orifice, square, bottom port of boom section, 3.505 mm, 0.138 inch

1шт.

100405A2

BLOCK ASSY.

VALVE ASSEMBLY, pilot check, Includes Ref. 29-44

1шт.

29

NSS

NOT SOLD SEPARAT

BODY pilot check

1шт.

30

H438031

PLUG

pilot check

1шт.

31

H438032

SLEEVE VALVE

SLEEVE pilot check

1шт.

32

H438033

CUP

RETAINER check ball

1шт.

33

113746A1

SEAT

pilot check

1шт.

34

113748A1

BALL

pilot check

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

37

102712A1

SPRING

pilot check

1шт.

38

113751A1

PLUG

pilot check

1шт.

Part of plunger kit 111935A1

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of plunger kit 111935A1

1шт.

40

113747A1

SPRING

poppet

1шт.

Part of plunger kit 111935A1

1шт.

41

H438334

VALVE

POPPET cartridge

1шт.

Part of plunger kit 111935A1

1шт.

42

113750A1

SEAT

poppet

1шт.

Part of plunger kit 111935A1

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Seat -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of plunger kit 111935A1

1шт.

44

113749A1

PLUNGER

pilot check

1шт.

Part of plunger kit 111935A1

1шт.

H674534

VALVE

ASSEMBLY, relief, main, Includes Ref. 4, P/N H674535

1шт.

45

NSS

NOT SOLD SEPARAT

VALVE relief

1шт.

H674535

GASKET KIT

KIT seal, main relief valve, Includes Ref. 46-50B

1шт.

46

H438229

ADJUSTMENT SCREW

relief valve

1шт.

47

H438228

NUT

relief valve

1шт.

48

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

49

H438044

GASKET

RING backup

1шт.

50

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

50a

H438329

GASKET

RING backup, not shown

1шт.

50b

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

Teflon, not shown

1шт.

H674533

VALVE

ASSEMBLY, circuit relief, Includes Ref. 51, P/N H674536

2шт.

51

NSS

NOT SOLD SEPARAT

VALVE relief

1шт.

H674536

O-RING

KIT seal, circuit relief valve, Includes Ref. 52-55

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

55

NSS

NOT SOLD SEPARAT

RING backup

1шт.

56

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

111935A1

SET OF PARTS

KIT plunger, Includes: Ref. 38-44

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
